Drive Plate Removal/Installation: Notes

  1. Remove in the order indicated in the figure.
  2. Install in the reverse order or removal.

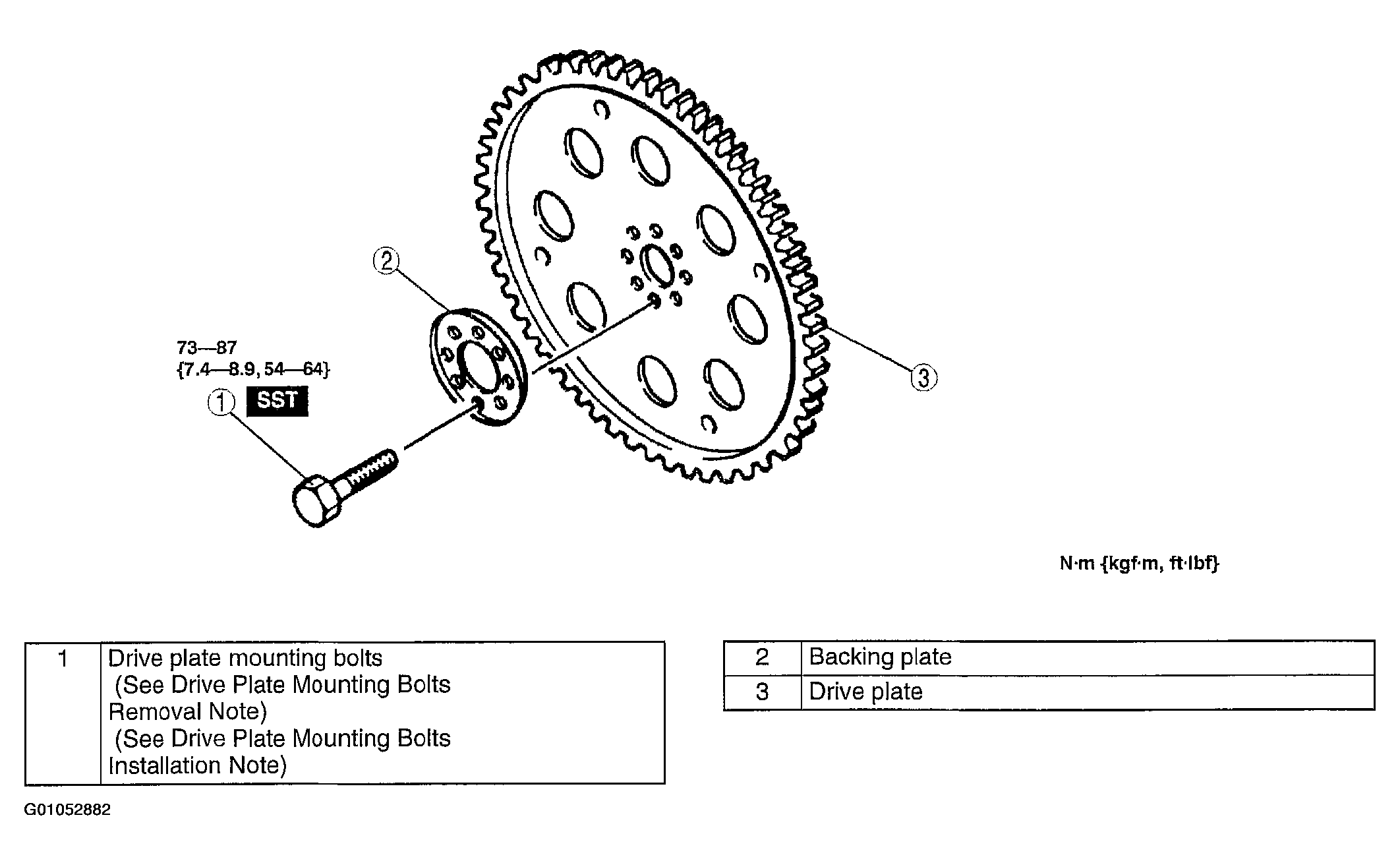

    Fig 1: Removing/Installing Drive Plate
    G01052882Courtesy of MAZDA MOTORS CORP.
