Ignition Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.

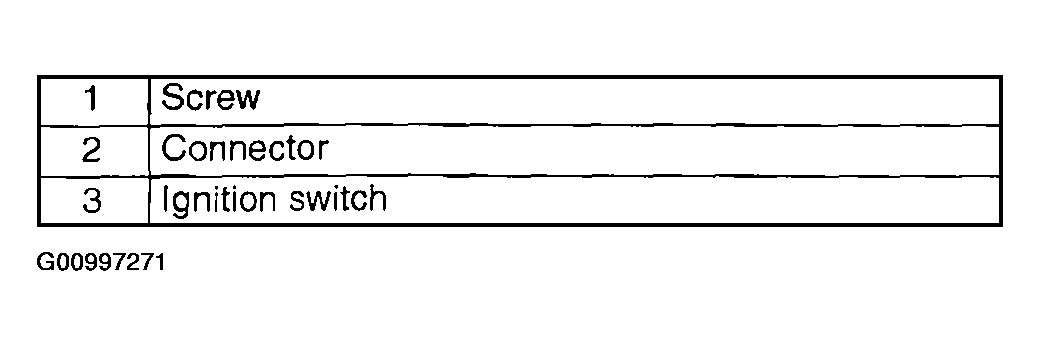

    Fig 1: Ignition Switch Removing/Installing Sequence Order Table
    G00997271Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.

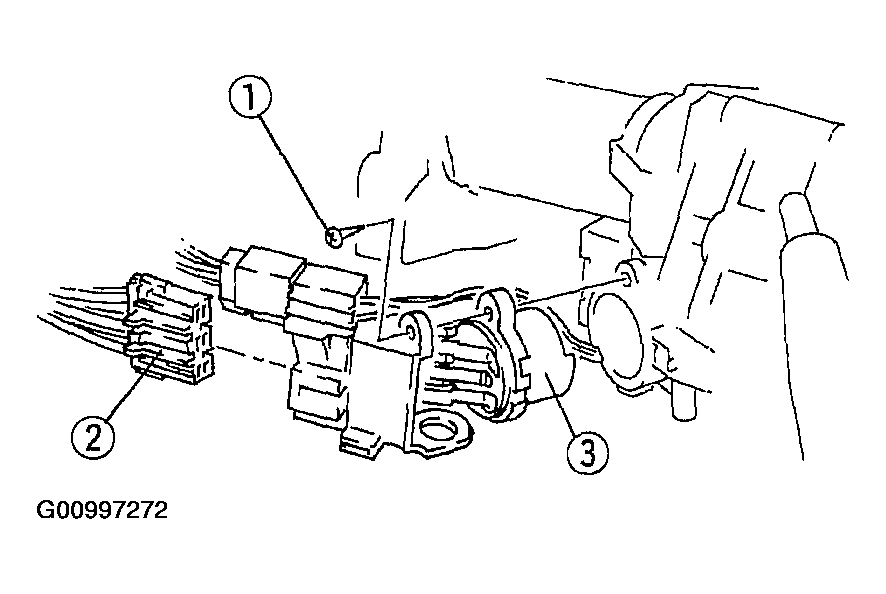

    Fig 2: Removing/Installing Ignition Switch
    G00997272Courtesy of MAZDA MOTORS CORP.
