Key Reminder Switch Inspection

Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
Disconnect the key reminder switch connector.
Inspect for continuity between the key reminder switch terminals using an ohmmeter.
- If not as specified, replace the steering lock. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)

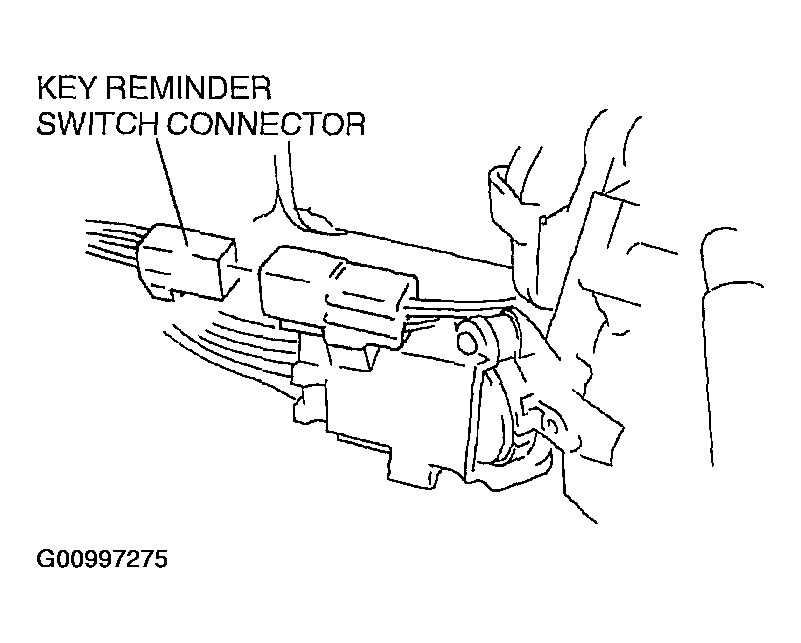

Fig 1: Disconnecting Key Reminder Switch Connector
Courtesy of MAZDA MOTORS CORP.

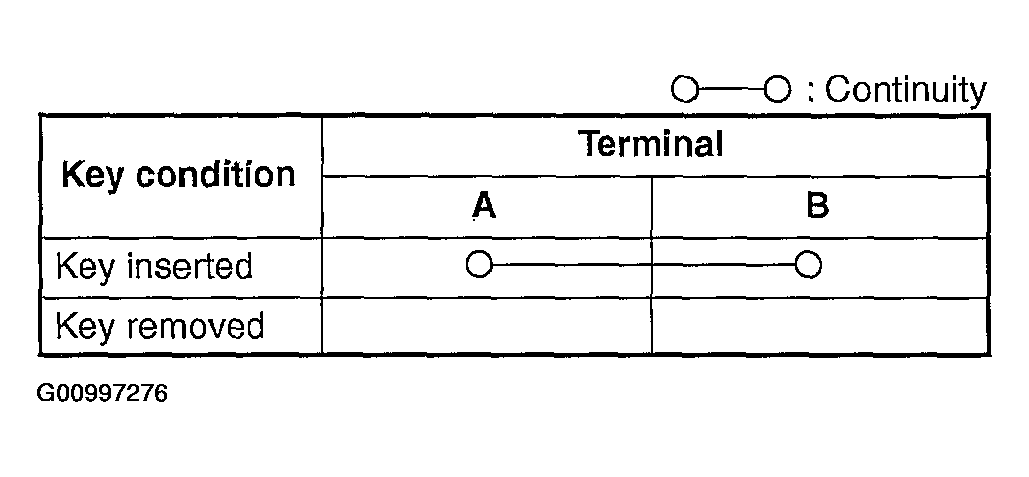

Fig 2: Key Reminder Switch Continuity Table
Courtesy of MAZDA MOTORS CORP.

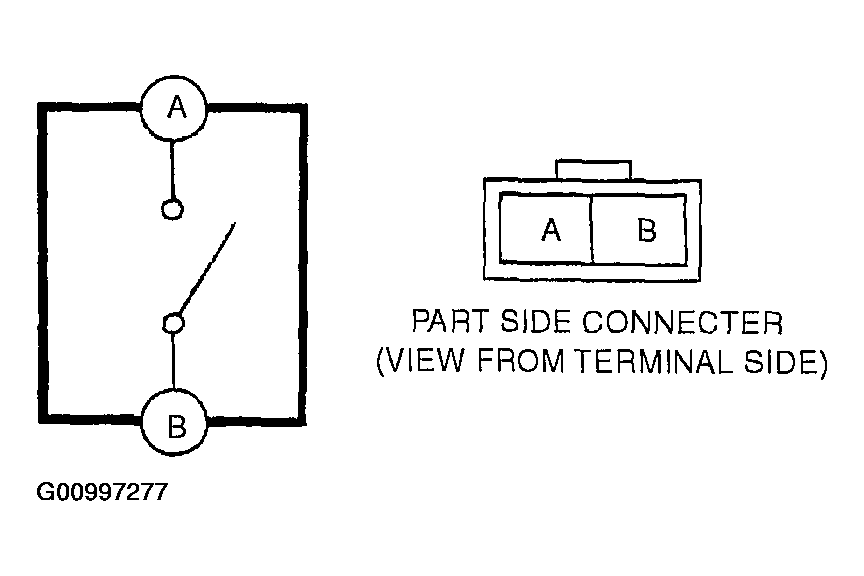

Fig 3: Locating Key Reminder Switch Connector Terminals
Courtesy of MAZDA MOTORS CORP.
