Main Fuse Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the table.

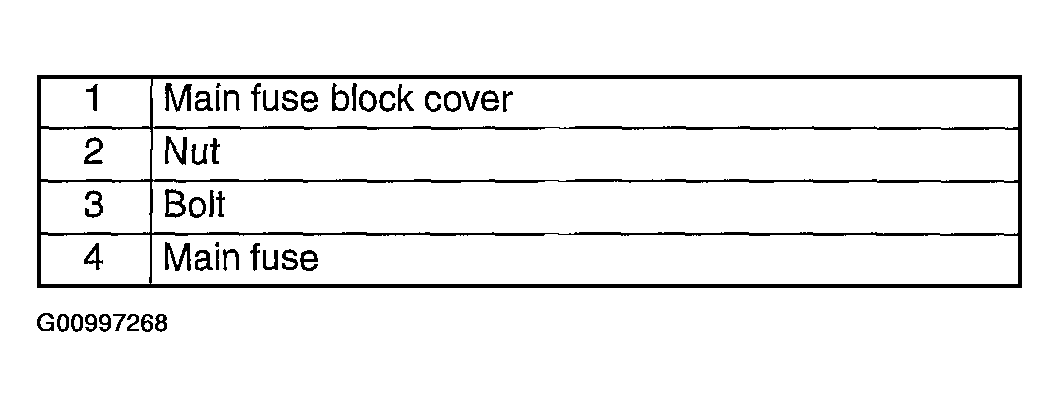

    Fig 1: Main Fuse Removing/Installing Sequence Order Table
    G00997268Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.

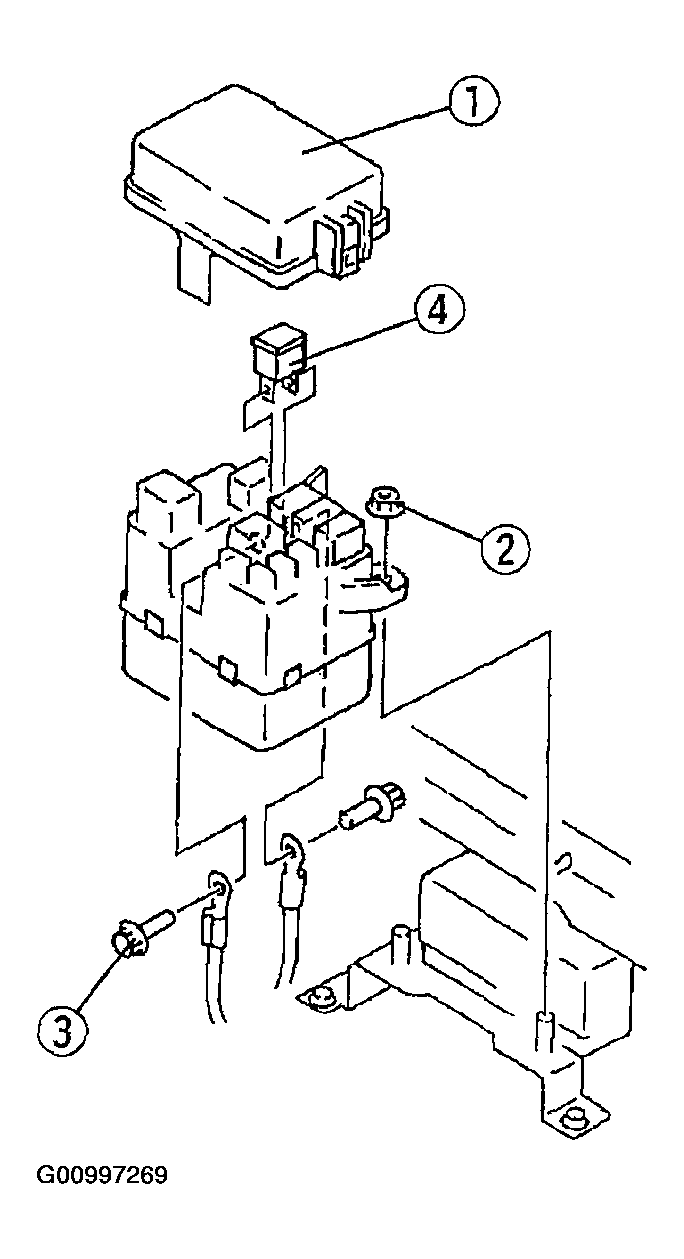

    Fig 2: Removing/Installing Main Fuse
    G00997269Courtesy of MAZDA MOTORS CORP.
