FP Assembly Note

  1. After installing the FP to the bracket, pull the pump down so that it is flush against the bracket and there is no gap.

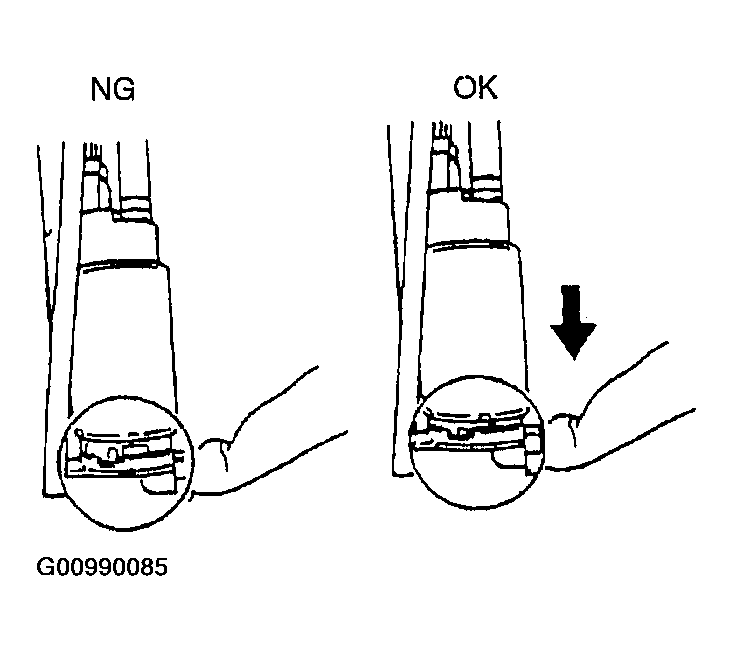

    Fig 1: Identifying Proper Way Of Fuel Pump Assembly
    G00990085Courtesy of MAZDA MOTORS CORP.
