Control System Diagram [BP]

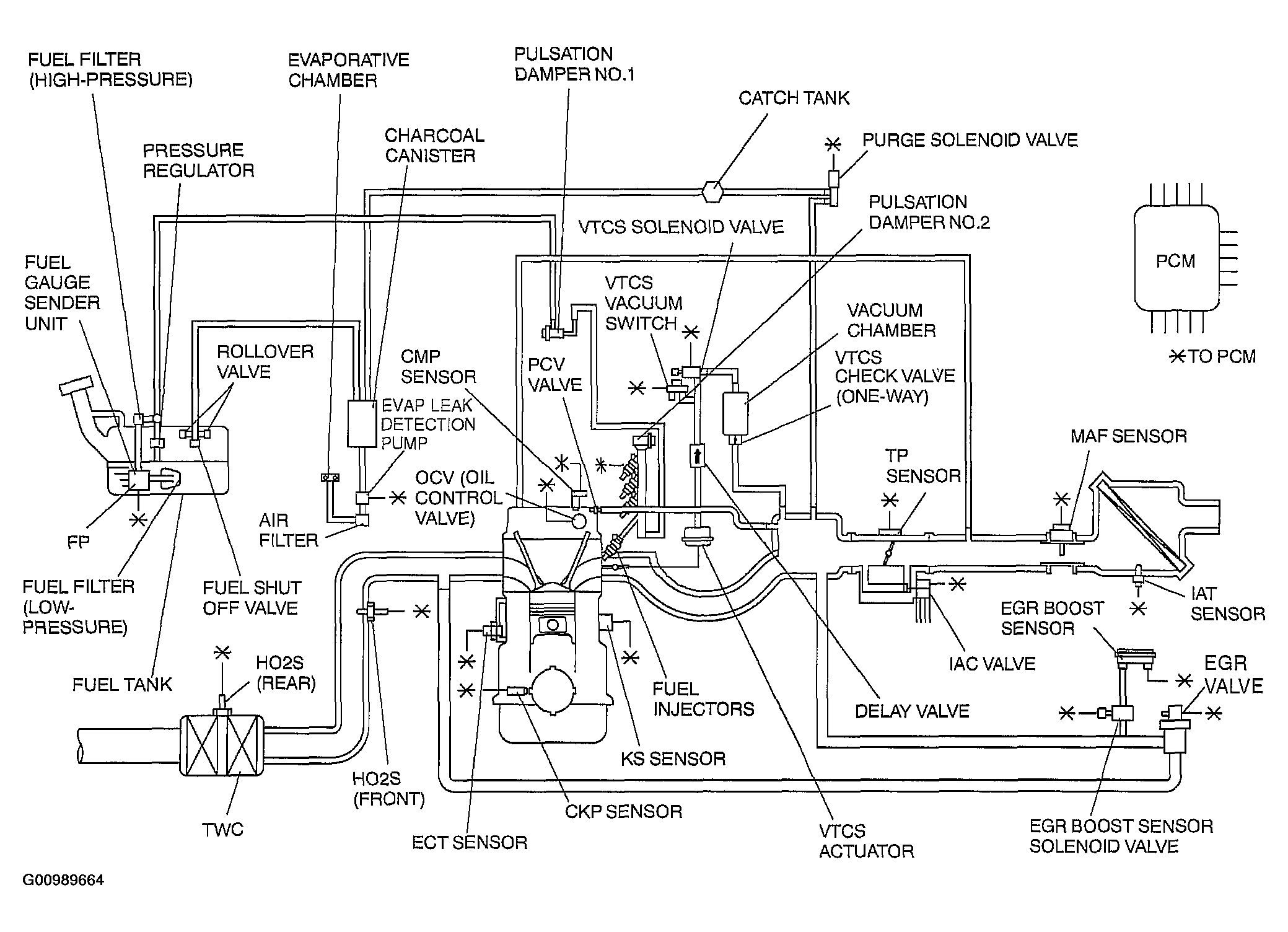

Fig 1: Identifying Control System Diagram [BP]
G00989664Courtesy of MAZDA MOTORS CORP.
