GND Circuit Inspection
- Turn the ignition switch to LOCK.
- Disconnect the PCM connectors.

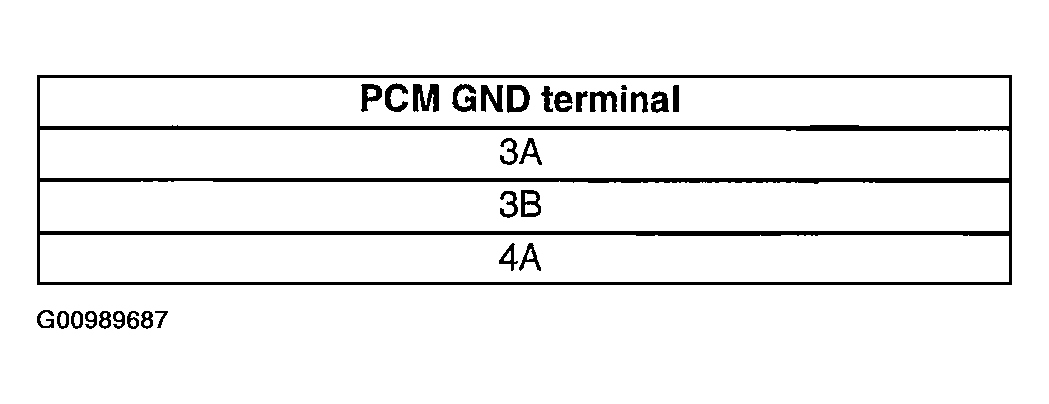

- Inspect for continuity between the PCM GND terminals and body GND using an ohmmeter.
- If not as specified, repair the related harnesses for open circuit.
Courtesy of MAZDA MOTORS CORP.
