HO2S (Front) Signal

PCM terminal: 4W(+) <-> 4A(-)
Oscilloscope setting: 0.2 V/DIV (Y), 2.0 ms/DIV (X), DC range
Vehicle condition: Idling after warm-up

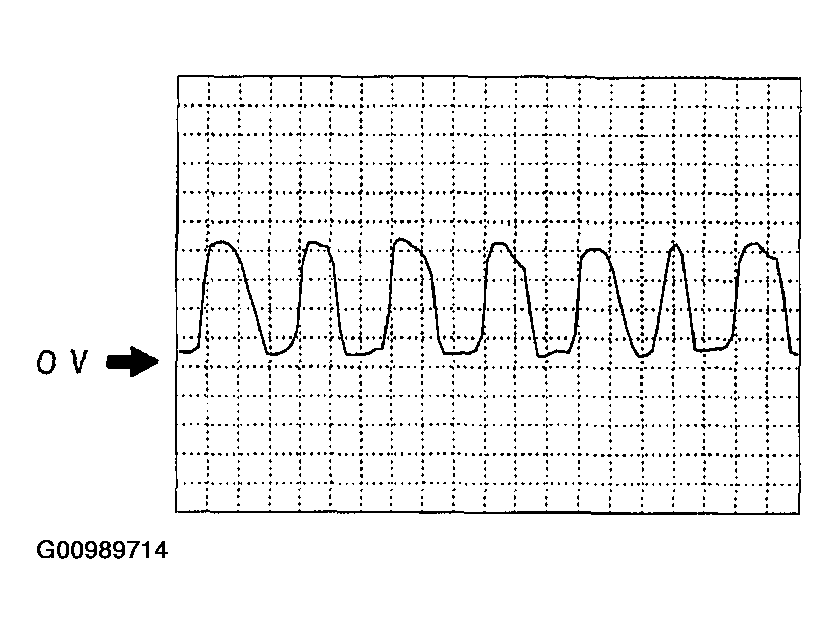

Fig 1: Identifying HO2S (Front) Signal
Courtesy of MAZDA MOTORS CORP.
