IAC Control Signal

PCM terminal: 2P(+) <-> 2Q(-)
Oscilloscope setting: 2.0 V/DIV (Y), 25 ms/DIV (X), DC range
Vehicle condition: Idling after warm-up (no electrical load)

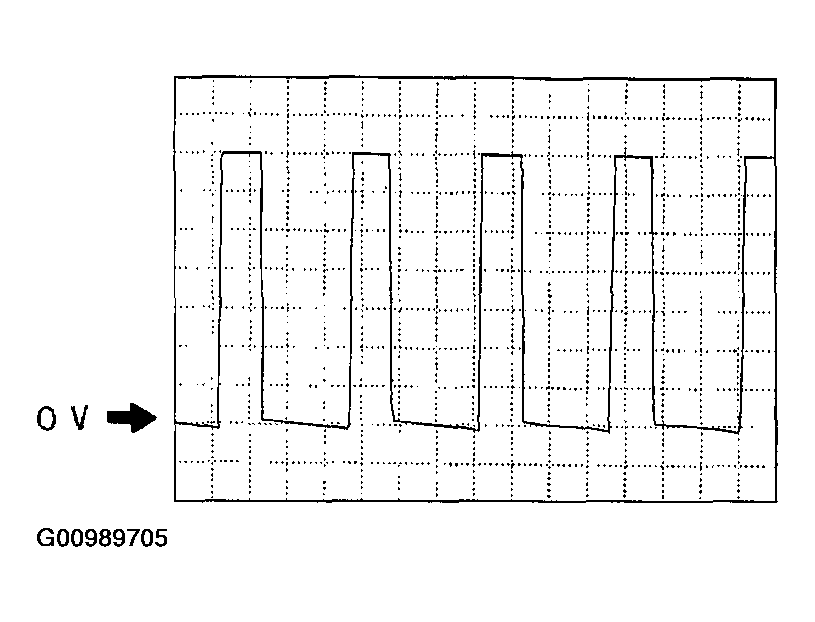

Fig 1: Identifying IAC Control Signal
Courtesy of MAZDA MOTORS CORP.
