Serial Communication Terminal Inspection
- Turn the ignition switch to LOCK.
- Disconnect PCM connectors.

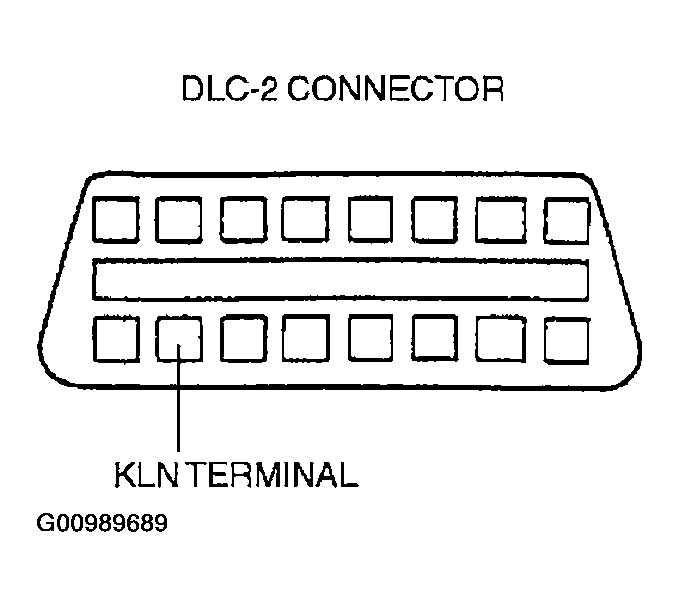

- Verify there is continuity between PCM connector terminal 3Q and DLC-2 KLN terminal.
- If not as specified, repair the related harnesses.
Courtesy of MAZDA MOTORS CORP.
