Ignition Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the figure.
    Fig 1: Removal Order Of Ignition Switch
    G01344737Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.

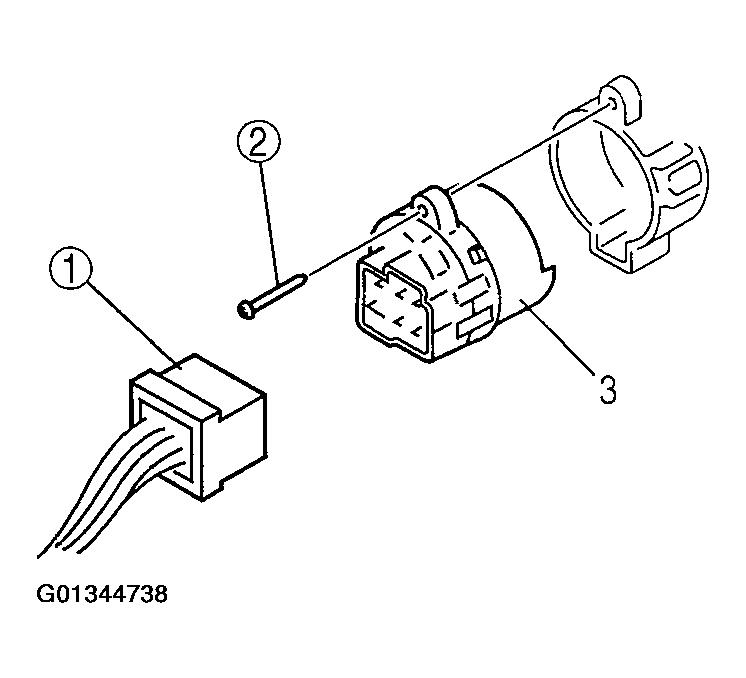

    Fig 2: Removing/Installing Ignition Switch
    G01344738Courtesy of MAZDA MOTORS CORP.
