Battery Installation Note

  1. Install the battery so battery front face is positioned within the white-painted range of the battery box.

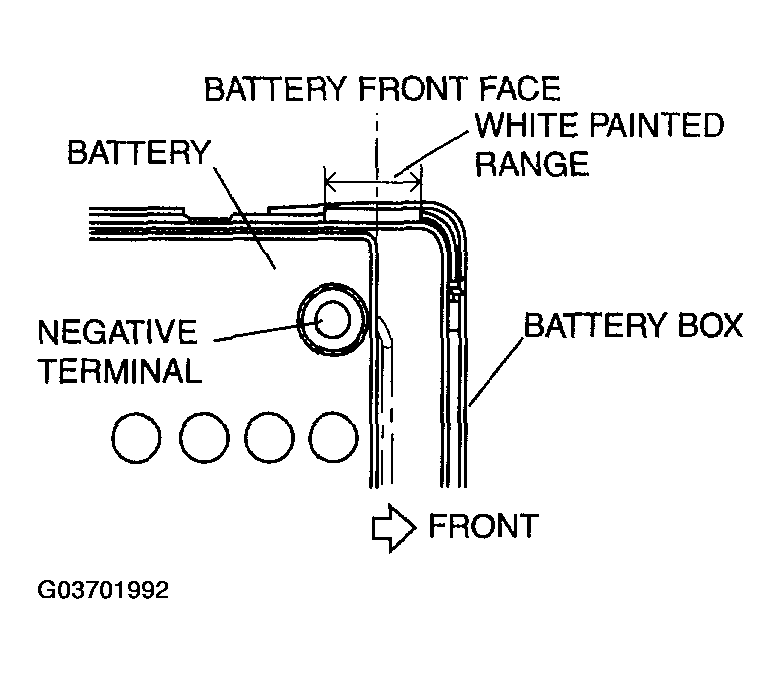

    Fig 1: Installing Battery Front Face Is Positioned Within The White-Painted Range Of The Battery Box
    G03701992Courtesy of MAZDA MOTORS CORP.
