Generator Disassembly/Assembly

  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of disassembly.

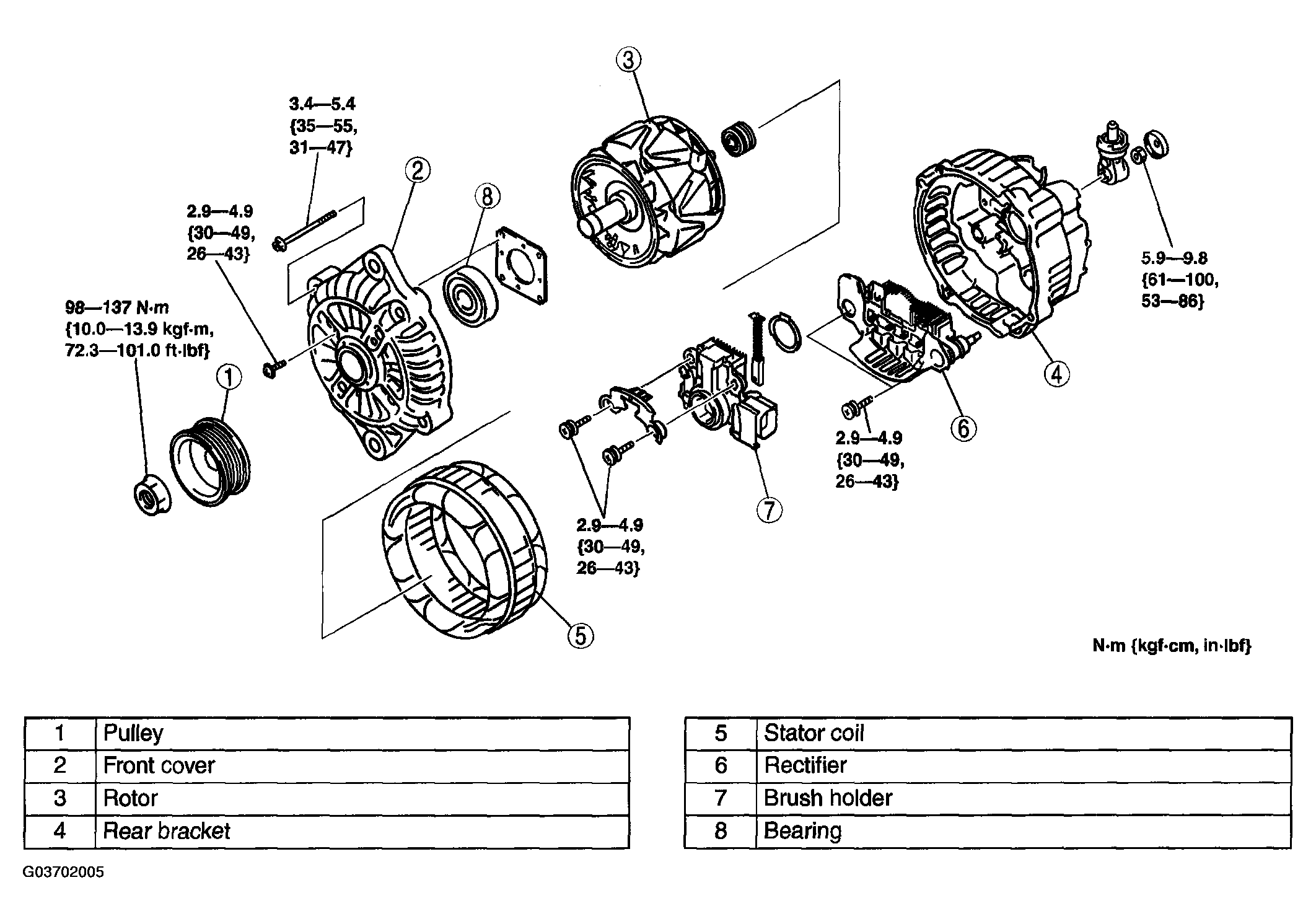

    Fig 1: Exploded View Of Generator With Torque Specifications
    G03702005Courtesy of MAZDA MOTORS CORP.
