Circuit Open/Short Inspection: Notes

  1. Disconnect the PCM connector.
  2. Inspect the following wiring harness for open or short (continuity check).

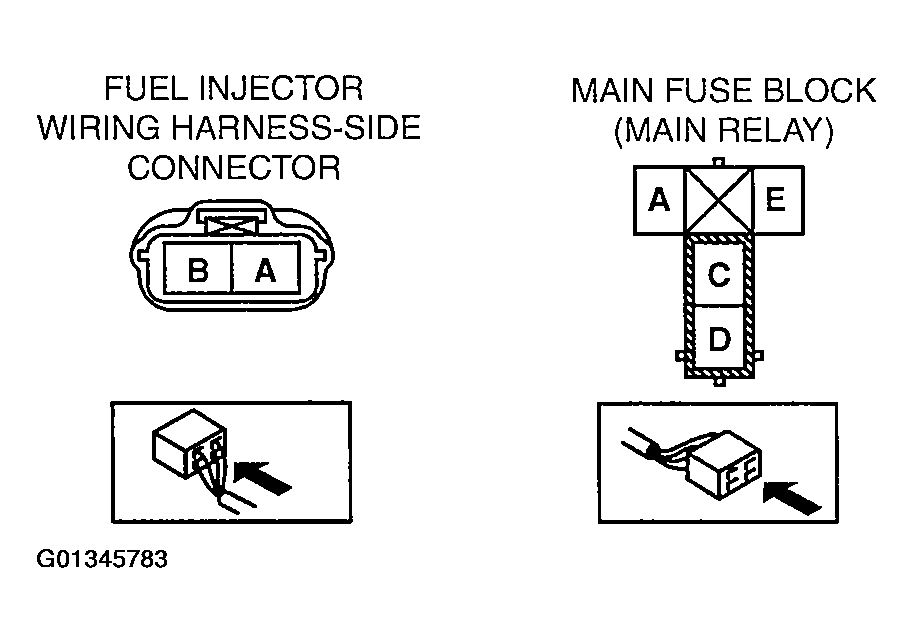

    Fig 1: Identifying Fuel Injector & Main Relay Connector Terminals
    G01345783Courtesy of MAZDA MOTORS CORP.
