Circuit Open/Short Inspection: Notes

  1. Inspect the following wiring harnesses for open or short circuit (continuity check).

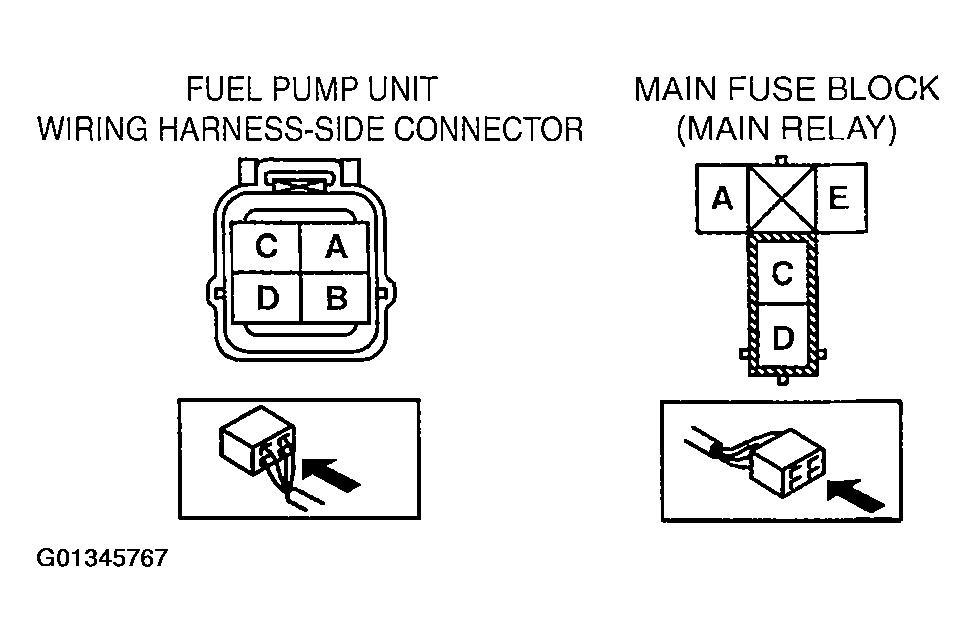

    Fig 1: Identifying Fuel Pump Unit & Main Relay Connector Terminals
    G01345767Courtesy of MAZDA MOTORS CORP.
