Cap Removal Note

CAUTION:
  • The cap could be damaged if the SST is used with any play between the cap and the SST. Securely attach the SST so that there is no gap between the SST tabs and the side of the cap.
  1. Remove the cap using the SST.

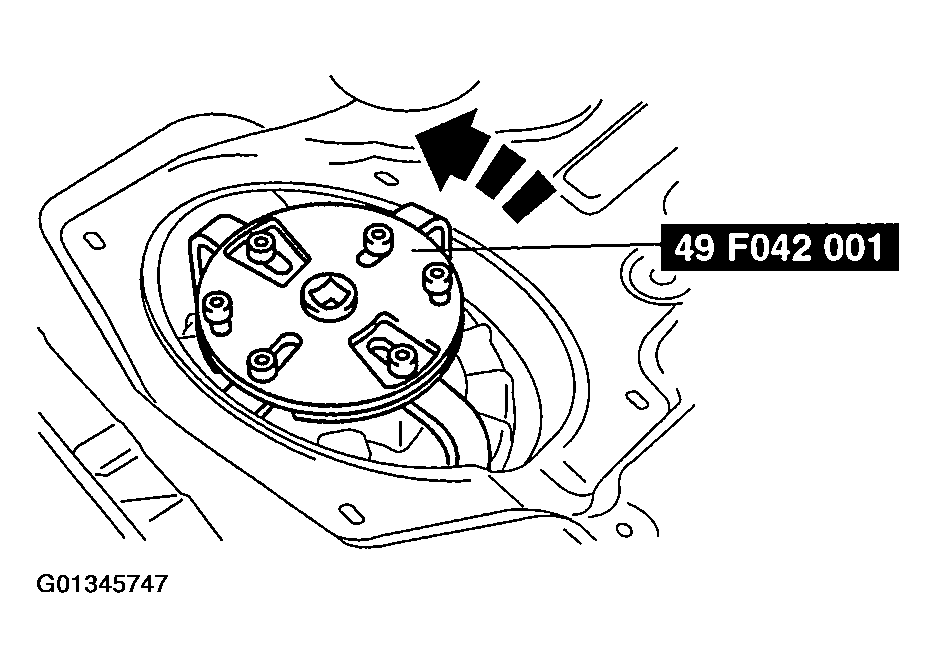

    Fig 1: Removing Cap
    G01345747Courtesy of MAZDA MOTORS CORP.
