Engine Technical Data

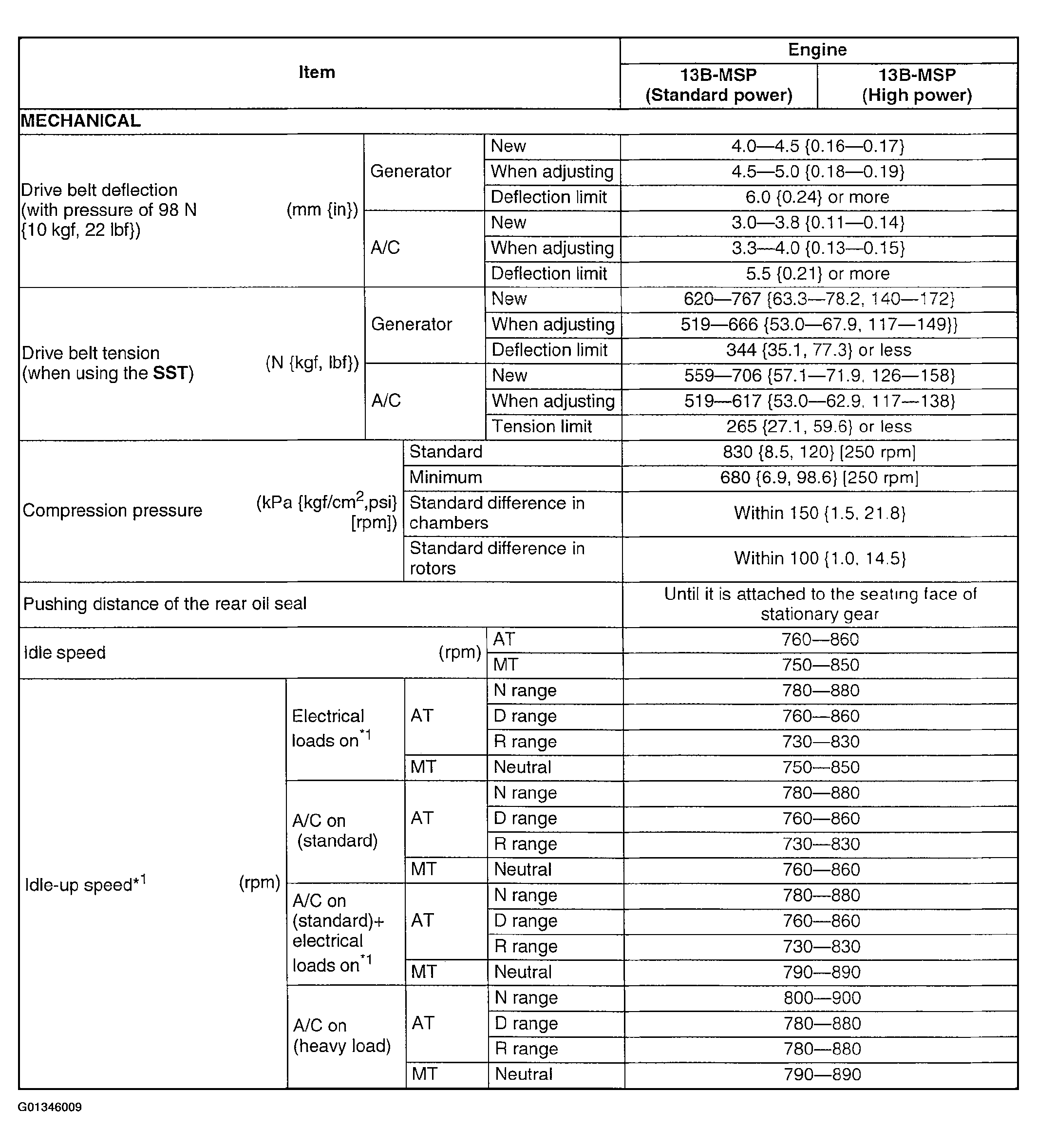

Fig 1: Engine Mechanical System Technical Data
G01346009Courtesy of MAZDA MOTORS CORP.

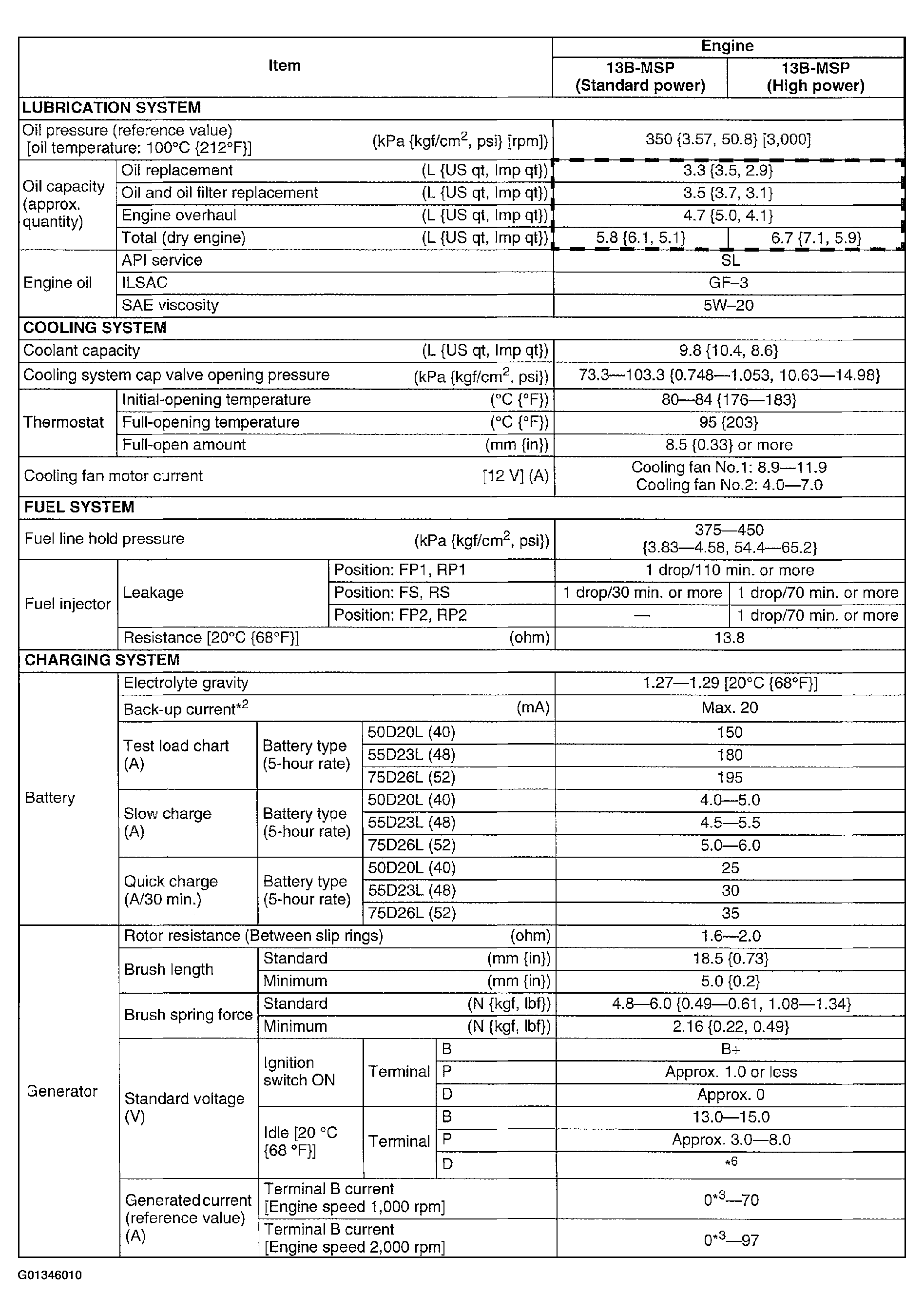

Fig 2: Lubrication, Cooling, Fuel & Charging System Technical Data
G01346010Courtesy of MAZDA MOTORS CORP.

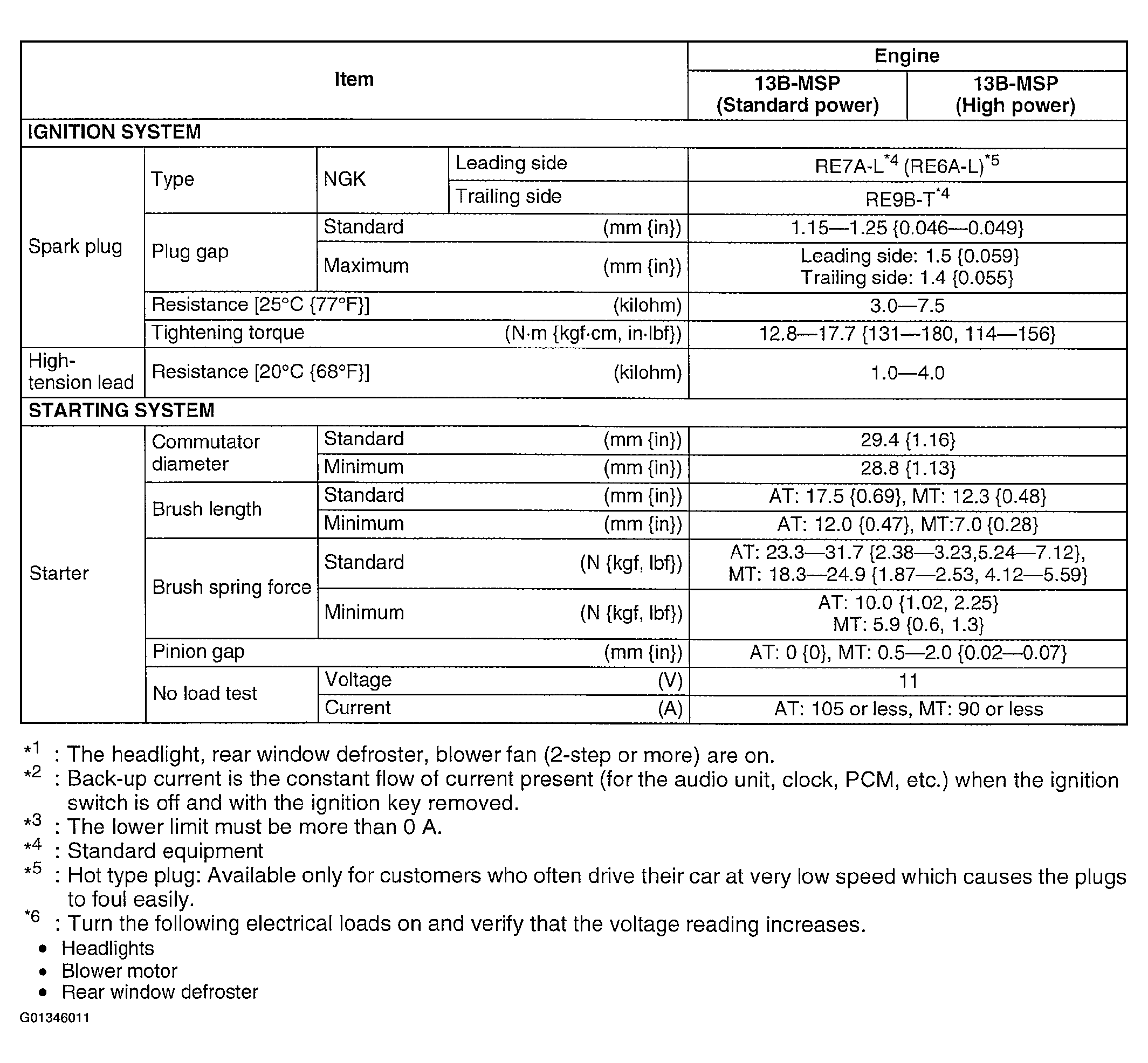

Fig 3: Ignition & Starting System Technical Data
G01346011Courtesy of MAZDA MOTORS CORP.
