Front Buckle Switch Inspection: Driver-Side: Notes

  1. Disconnect the negative battery cable.
  2. Disconnect the buckle switch connector.

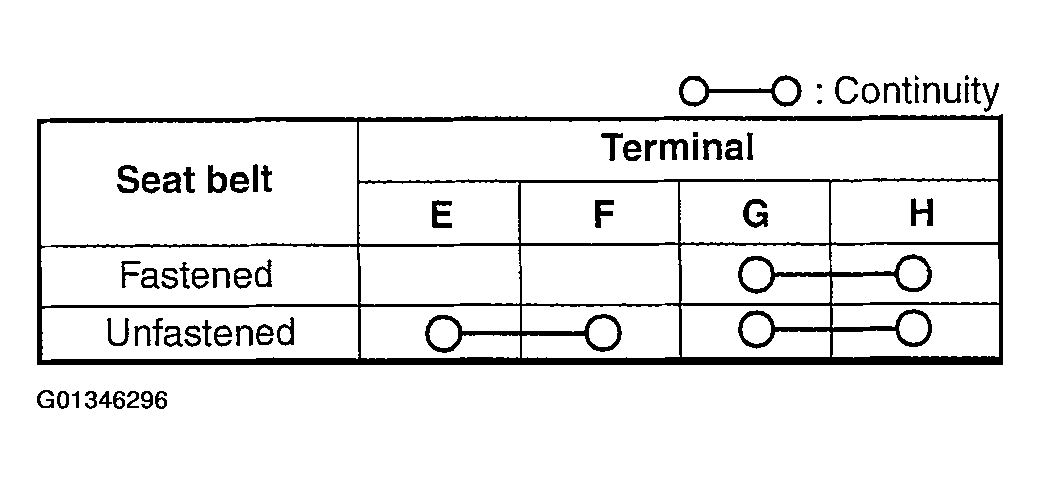

  3. Verify continuity as indicated. See Figure.
    • If continuity is not as indicated, replace the front buckle.
