Home >> Mazda >> 2004 >> Tribute DX, FWD >> Repair and Diagnosis >> Engine Performance >> System >> Symptom Troubleshooting (Engine/Fuel Control) >> Fast Idle

Fast Idle

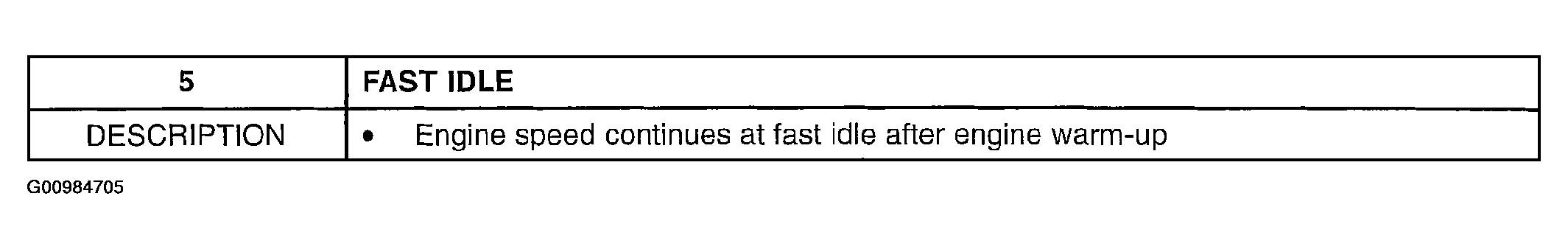

Fig 1: Chart 5 Fast Idle: Description
G00984705Courtesy of MAZDA MOTORS CORP.

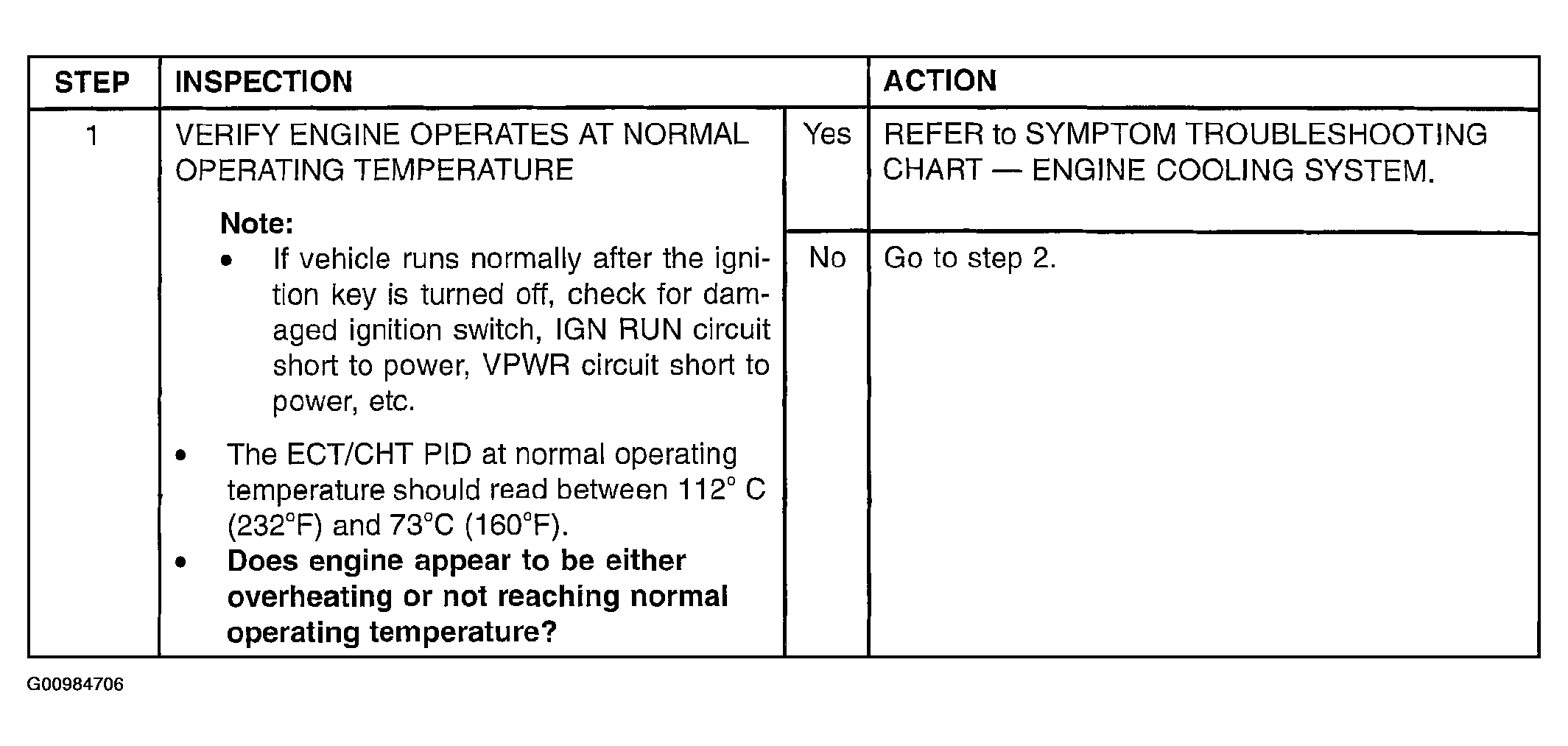

Fig 2: Chart 5 Fast Idle: Inspection (Step 1)
G00984706Courtesy of MAZDA MOTORS CORP.

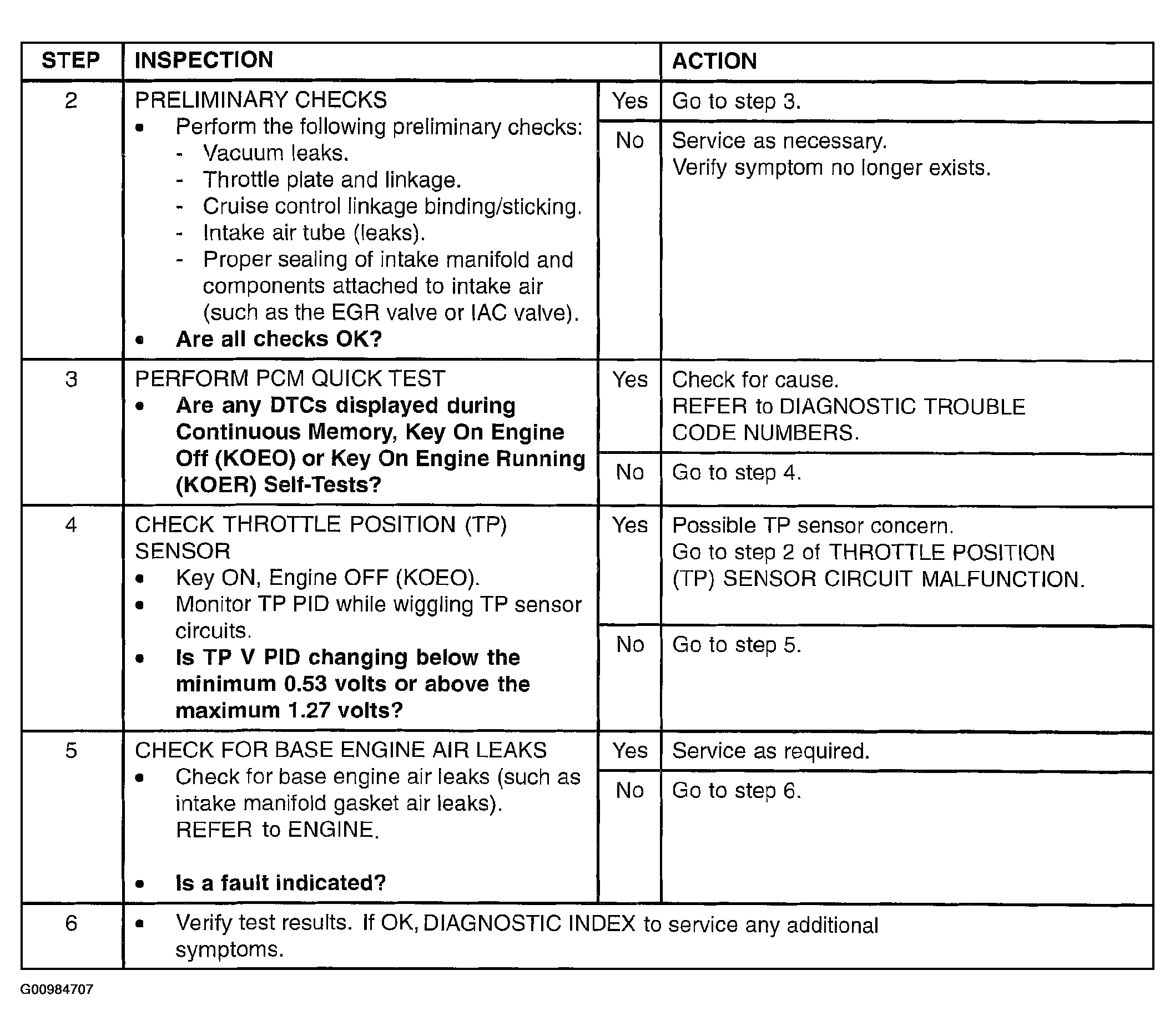

Fig 3: Chart 5 Fast Idle: Inspection (Steps 2-6)
G00984707Courtesy of MAZDA MOTORS CORP.
