Starting Concerns

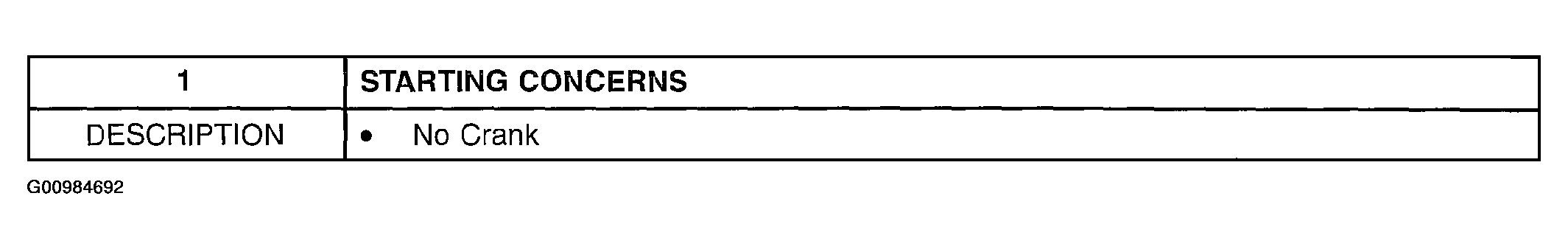

Fig 1: Chart 1 Starting Concerns: Description
G00984692Courtesy of MAZDA MOTORS CORP.

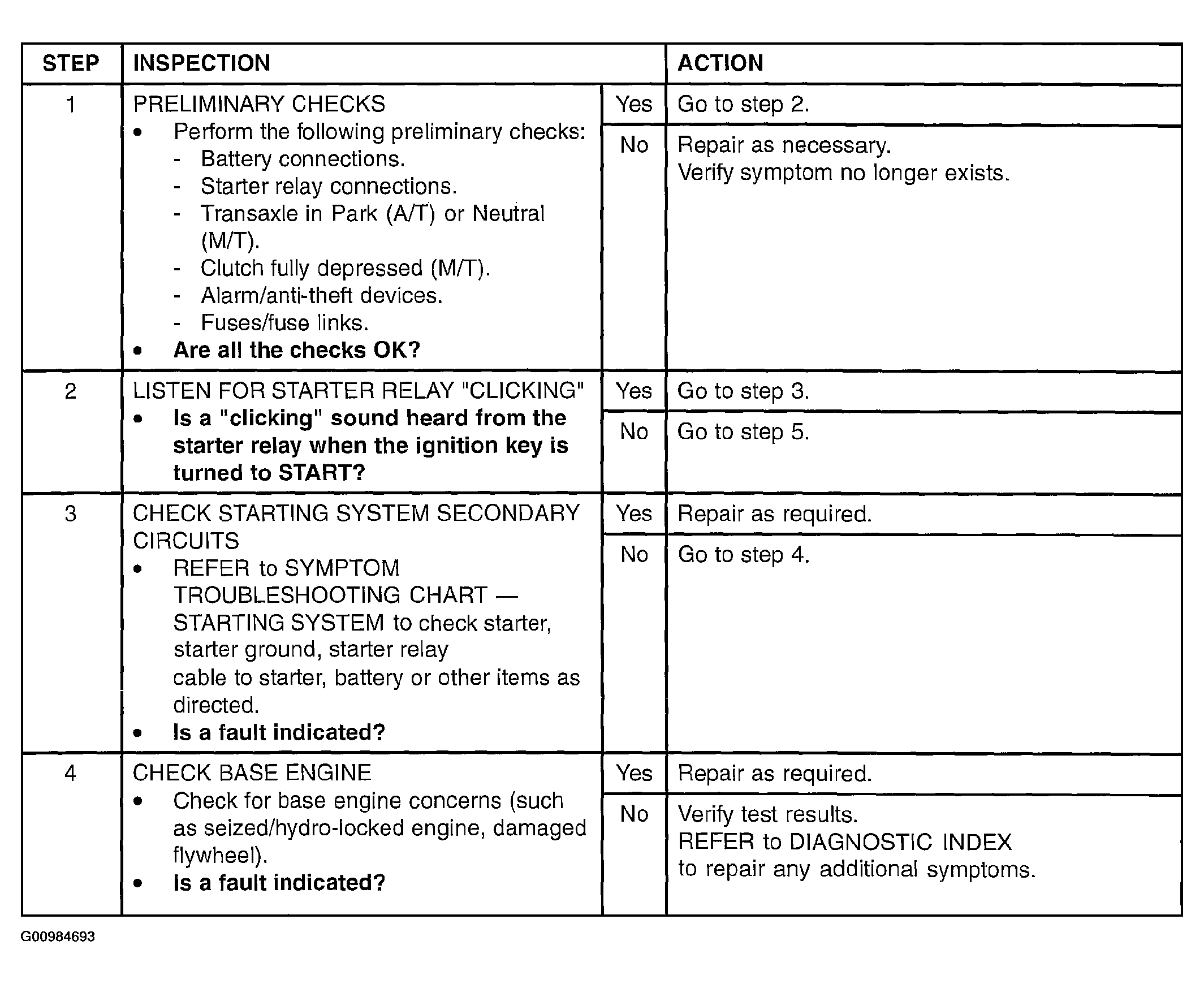

Fig 2: Chart 1 Starting Concerns: Inspection (Steps 1-4)
G00984693Courtesy of MAZDA MOTORS CORP.
Fig 3: Chart 1 Starting Concerns: Inspection (Steps 5-8)
G00984694Courtesy of MAZDA MOTORS CORP.
