Home >> Mazda >> 2004 >> Tribute DX, FWD >> Repair and Diagnosis >> Engine Performance >> System >> Symptom Troubleshooting (Engine/Fuel Control) >> Symptom Troubleshooting Chart - Engine Cooling System >> Notes

Symptom Troubleshooting Chart - Engine Cooling System: Notes

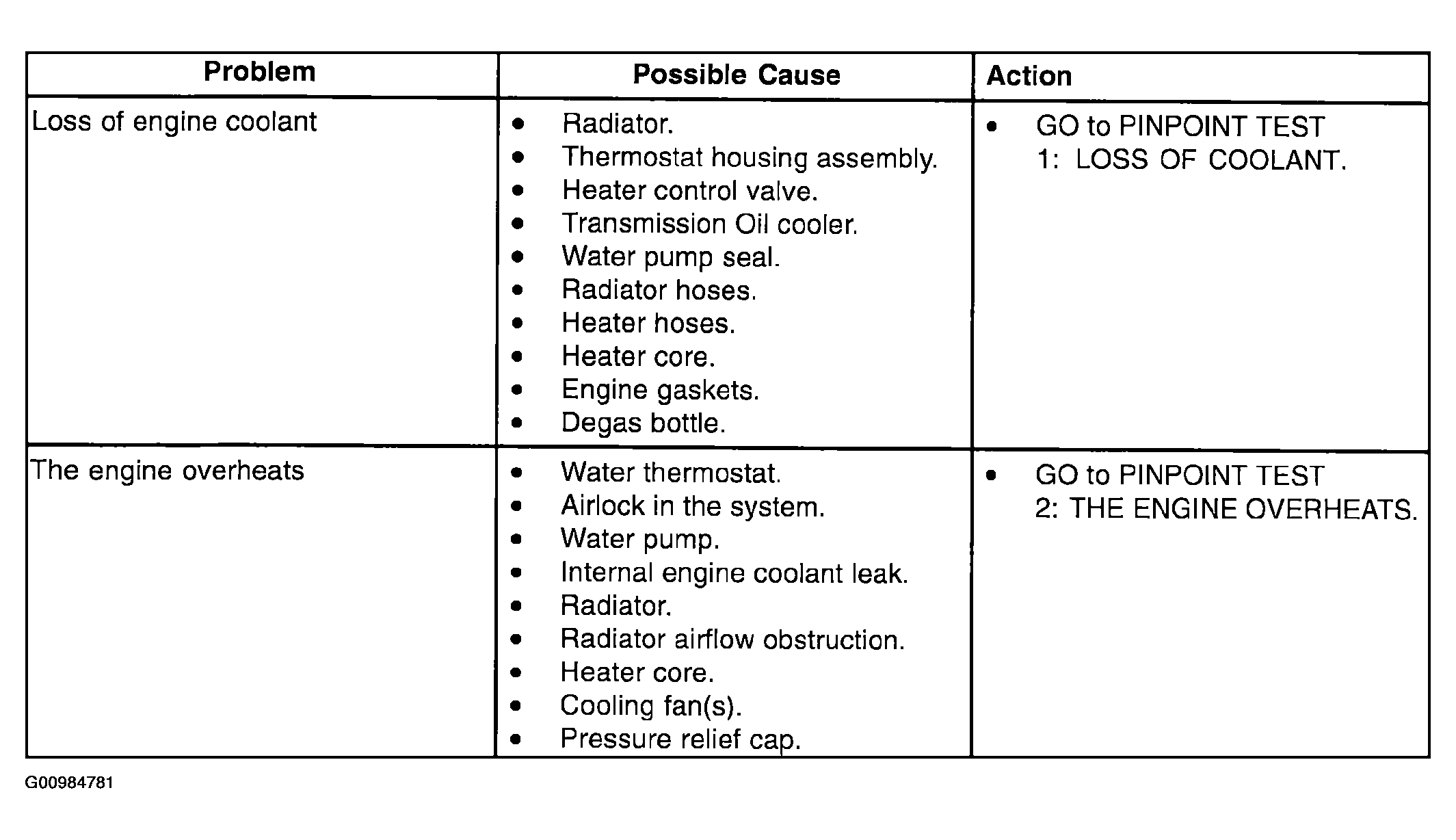

Fig 1: Symptom Troubleshooting Chart - Engine Cooling System (1 Of 2)
G00984781Courtesy of MAZDA MOTORS CORP.

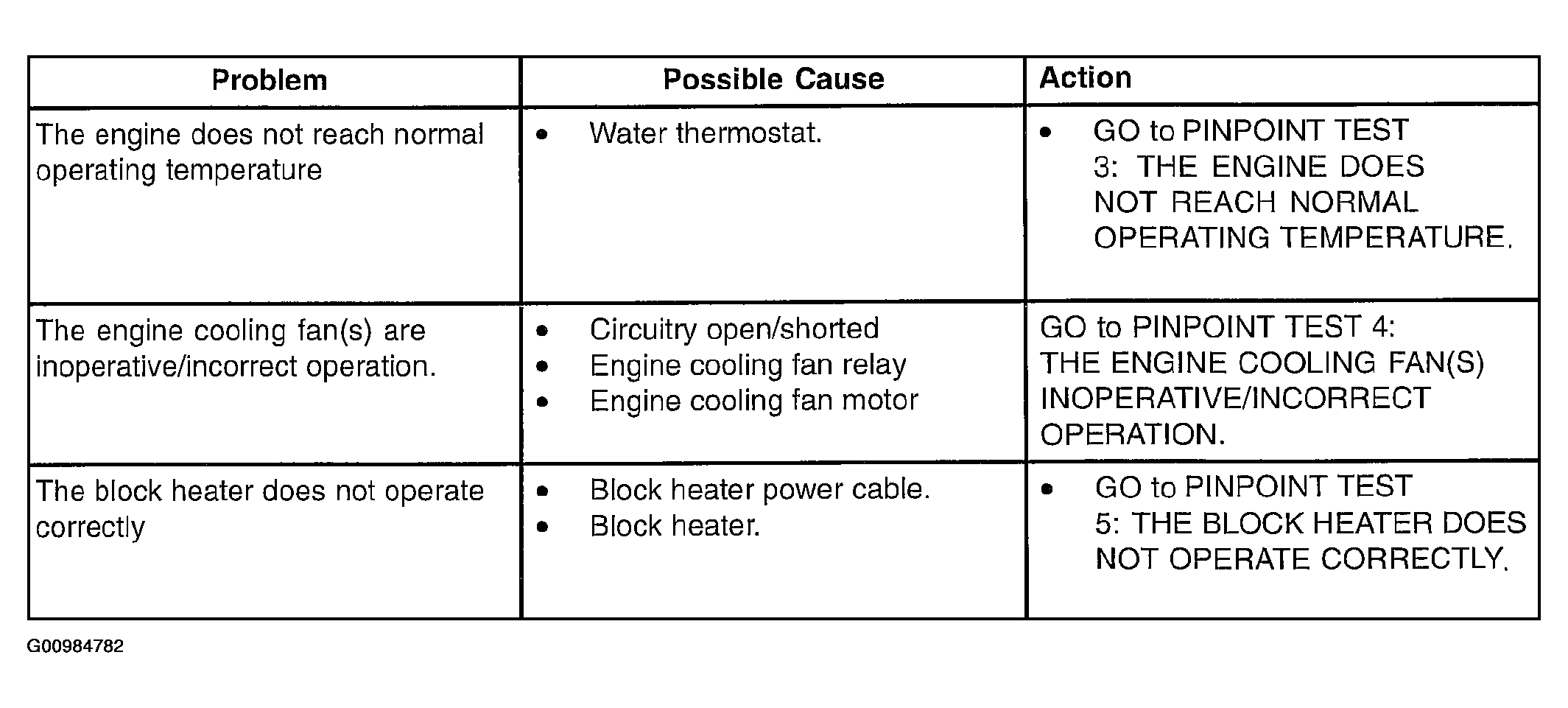

Fig 2: Symptom Troubleshooting Chart - Engine Cooling System (2 Of 2)
G00984782Courtesy of MAZDA MOTORS CORP.
