Power Steering System: Fill

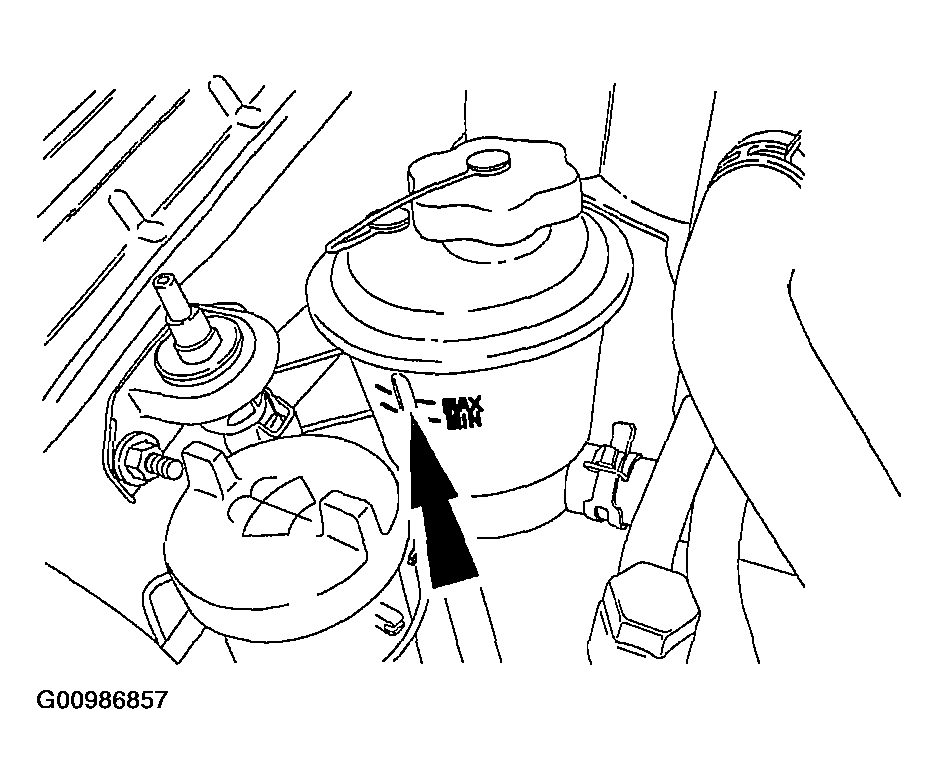

Fig 1: Filling Reservoir

Courtesy of MAZDA MOTORS CORP.

WARNING:

Do not mix oil types. Any mixture or any unapproved oil can lead to seal deterioration and leaks. A leak can ultimately cause loss of fluid, which can result in a loss of power steering assist.

Fill the reservoir.
1. Use MERCON(R) Automatic Transaxle Fluid (ATF).

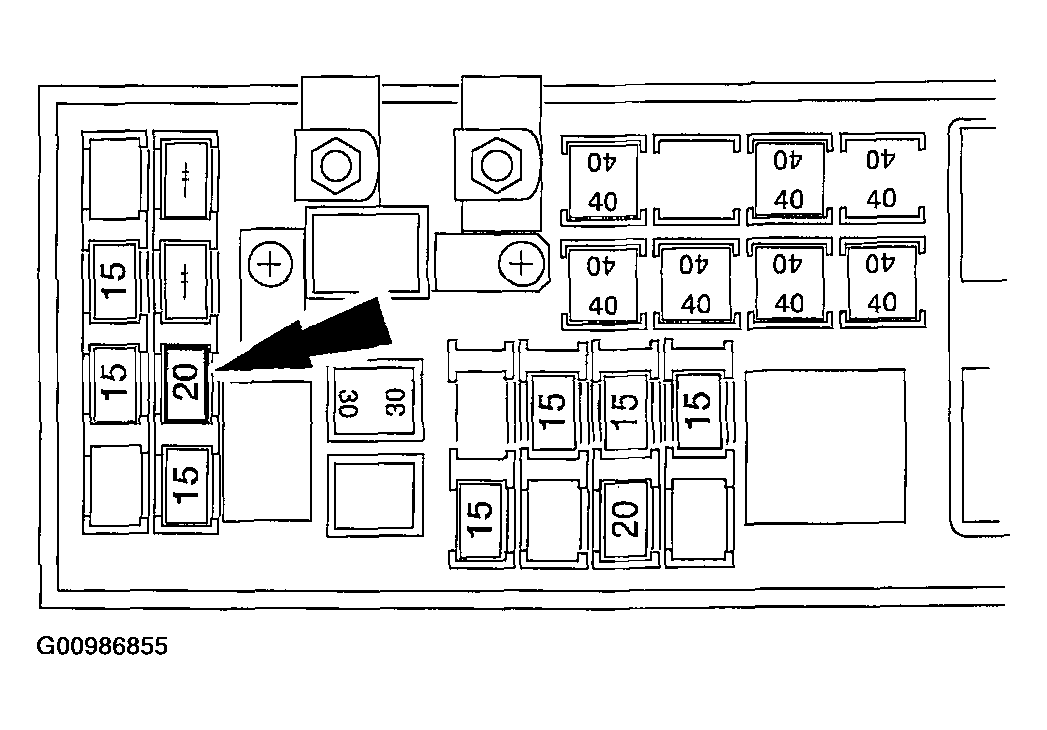

Fig 2: Removing Fuel Fuse To Disable Vehicle
Courtesy of MAZDA MOTORS CORP.
Remove the FUEL fuse to disable the vehicle.
Raise the front wheels off the floor. Refer to WHEEL AND TIRE .

Fig 3: Turning Steering Wheel From Stop-To-Stop While Cranking Engine
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Do not crank the engine for more than 15 seconds at a time. Allow the starter to cool for 1 minute before cranking again. Premature starter failure can occur.
CAUTION:
- Do not hold the steering wheel against the stops for more than three to five seconds at a time. Damage to the power steering pump can occur.
Turn the steering wheel from stop-to-stop while cranking the engine.
Lower the vehicle.

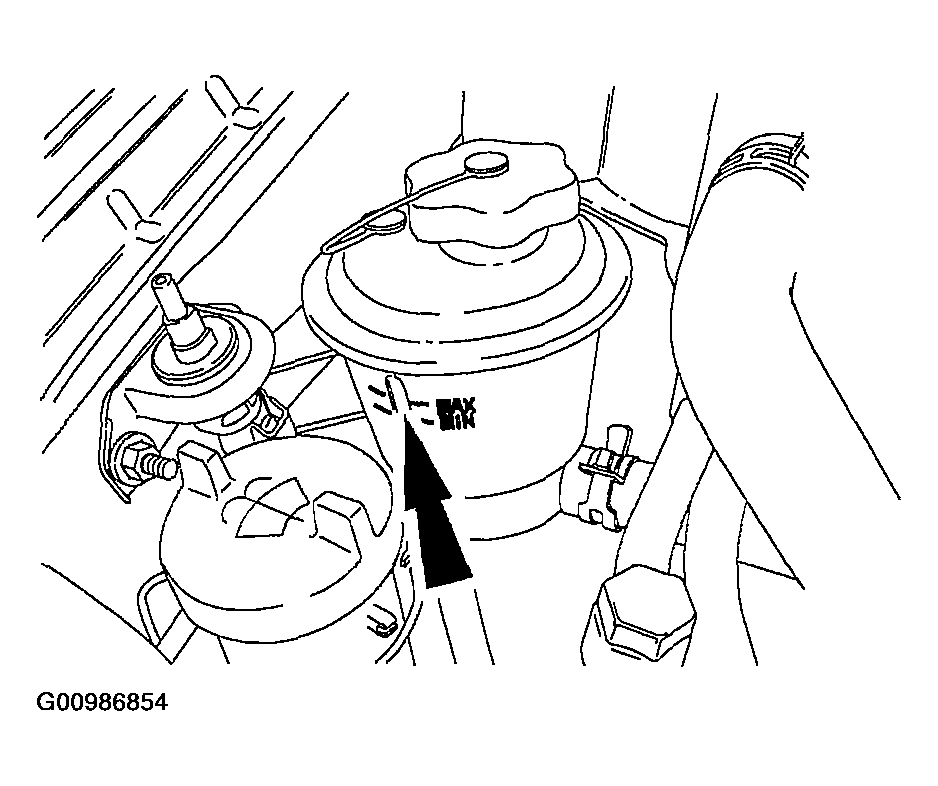

Fig 4: Filling Reservoir
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Do not overfill the reservoir.
Fill the reservoir.
1. Use MERCON(R) ATF.
Install the fuel pump relay.
Clear the diagnostic trouble codes (DTCs). Refer to ON-BOARD DIAGNOSTIC TESTS - WDS .
