Assembly Note

NOTE:
  • Whenever a bearing has been removed, a new bearing must be installed.

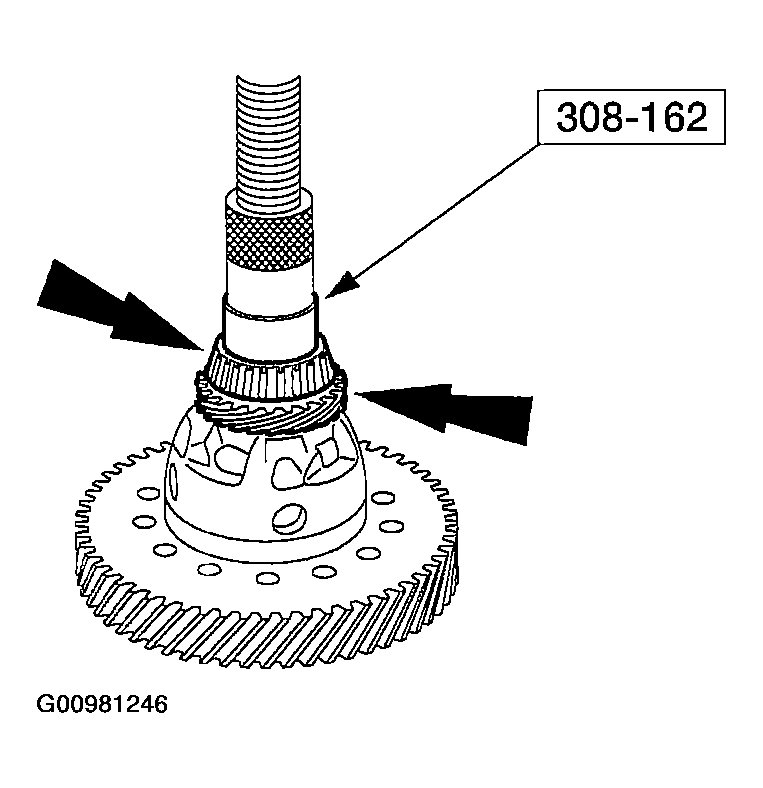

Fig 1: Installing Speedometer Drive Gear And Differential Bearing
G00981246Courtesy of MAZDA MOTORS CORP.
  1. Using the special tool and a press, install the speedometer drive gear and the differential bearing.
    Fig 2: Installing Differential Bearing
    G00981247Courtesy of MAZDA MOTORS CORP.
  2. Using the special tool, install the differential bearing.

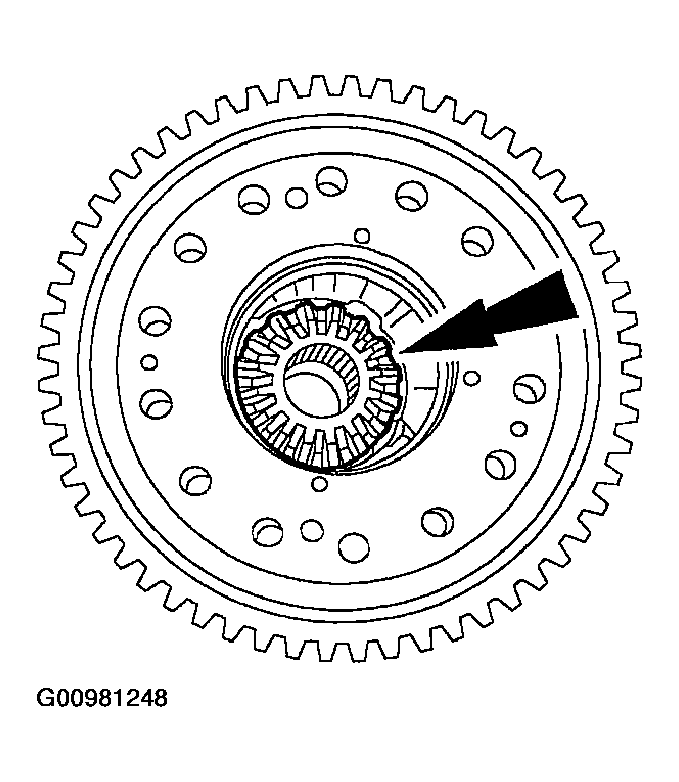

    Fig 3: Installing Differential Side Gear And Thrust Washer
    G00981248Courtesy of MAZDA MOTORS CORP.
  3. Install the differential side gear and thrust washer.

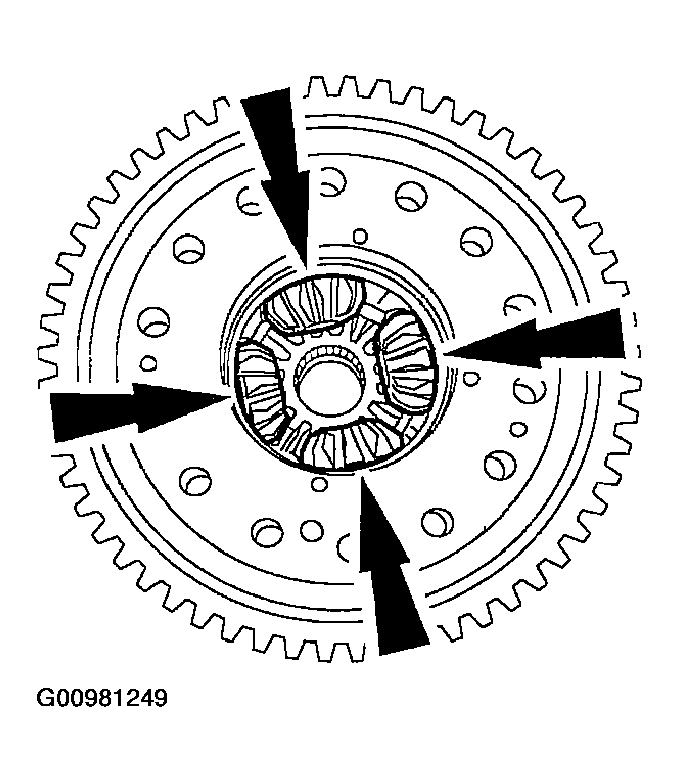

    Fig 4: Installing Differential Pinion Gears And Thrust Washers
    G00981249Courtesy of MAZDA MOTORS CORP.
  4. Install the differential pinion gears and thrust washers.

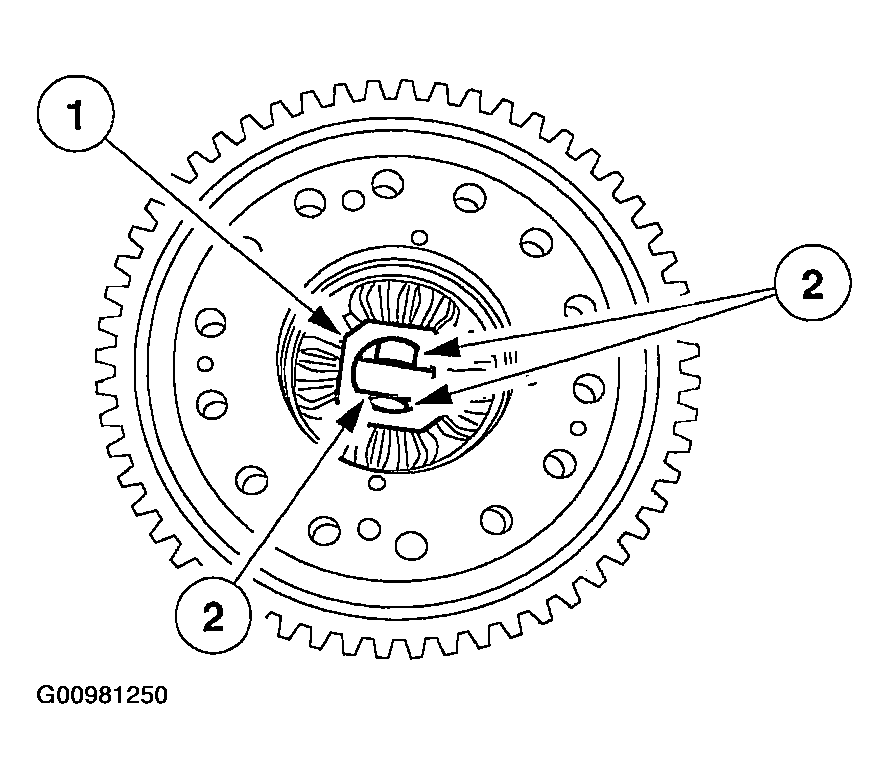

    Fig 5: Installing Differential Pinion Shaft Cage
    G00981250Courtesy of MAZDA MOTORS CORP.
  5. Install the differential pinion shaft cage.
    1. Position the differential pinion shaft cage.
    2. Install the differential pinion shafts.

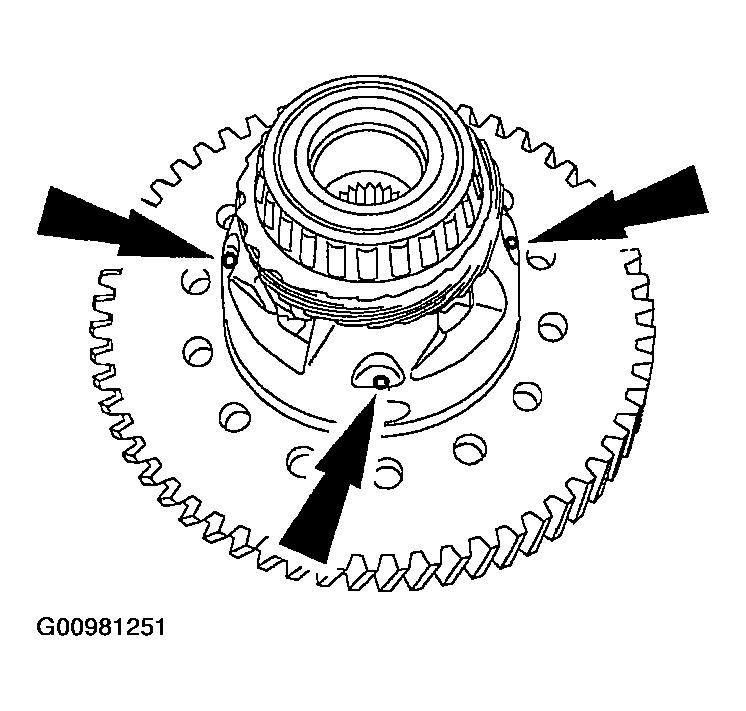

    Fig 6: Installing Differential Pinion Shaft Lock Pins
    G00981251Courtesy of MAZDA MOTORS CORP.
  6. Install the differential pinion shaft lock pins.

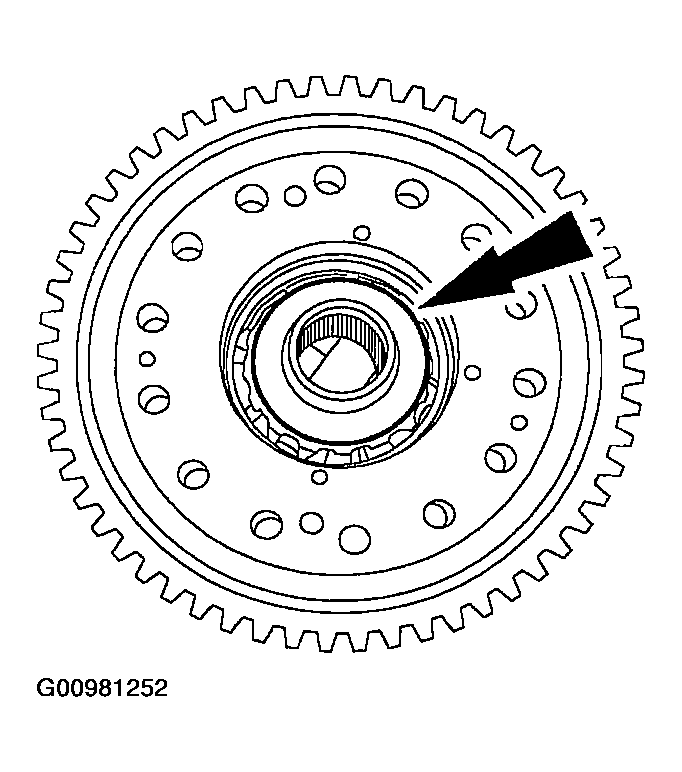

    Fig 7: Installing Differential Side Gear Thrust Washer And Differential Side Gear
    G00981252Courtesy of MAZDA MOTORS CORP.
  7. Install the differential side gear thrust washer and differential side gear.

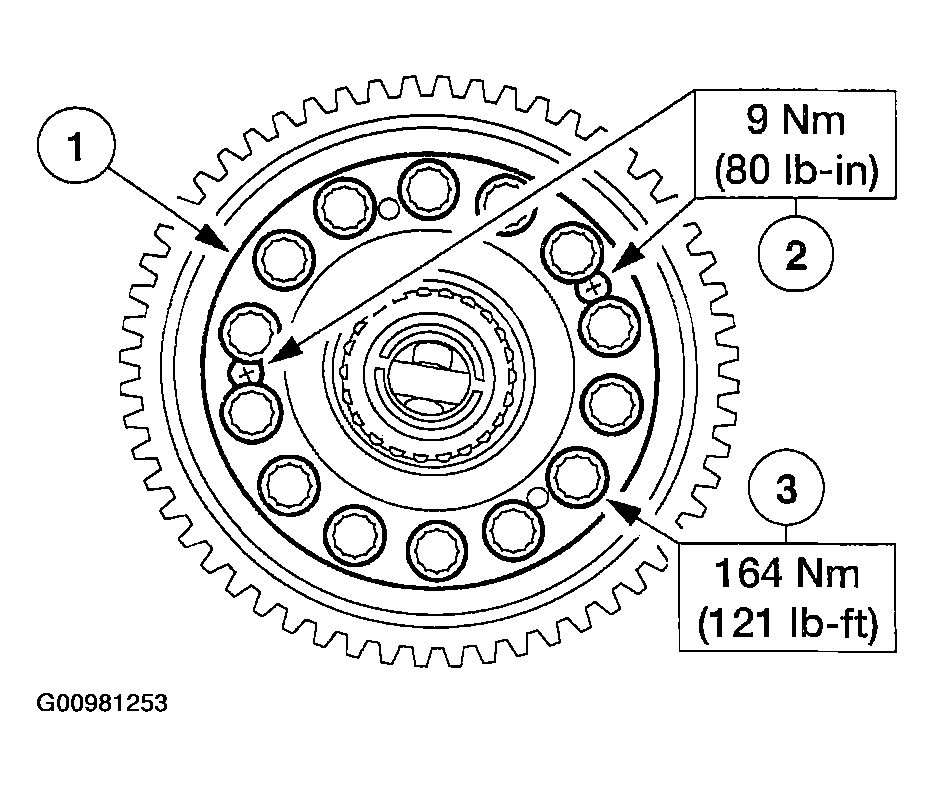

    Fig 8: Installing Differential Cover Bolts
    G00981253Courtesy of MAZDA MOTORS CORP.
  8. Install the differential cover.
    1. Position the differential cover.
    2. Install the differential cover screws.
    3. Install the differential cover bolts.
