Assembly Note

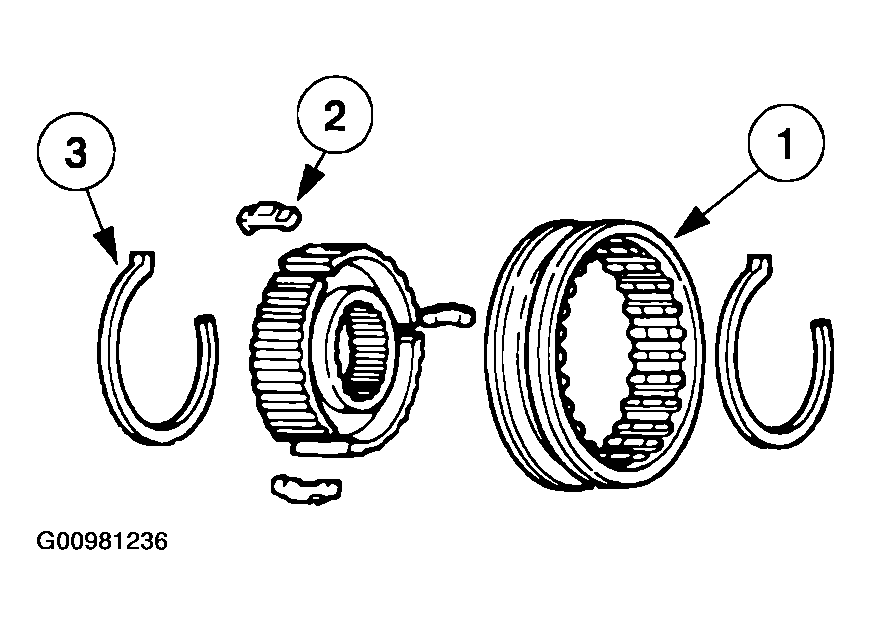

Fig 1: Assembling Synchronizer
G00981236Courtesy of MAZDA MOTORS CORP.
NOTE:
  • Align the index marks during assembly.
  1. Assemble the synchronizer.
    1. Position the synchronizer hub and sleeve together.
    2. Install the synchronizer hub inserts.
    3. Install the synchronizer blocking springs.
