Disassembly Note

NOTE:
  • First and second gear synchronizer shown; other synchronizers are similar.

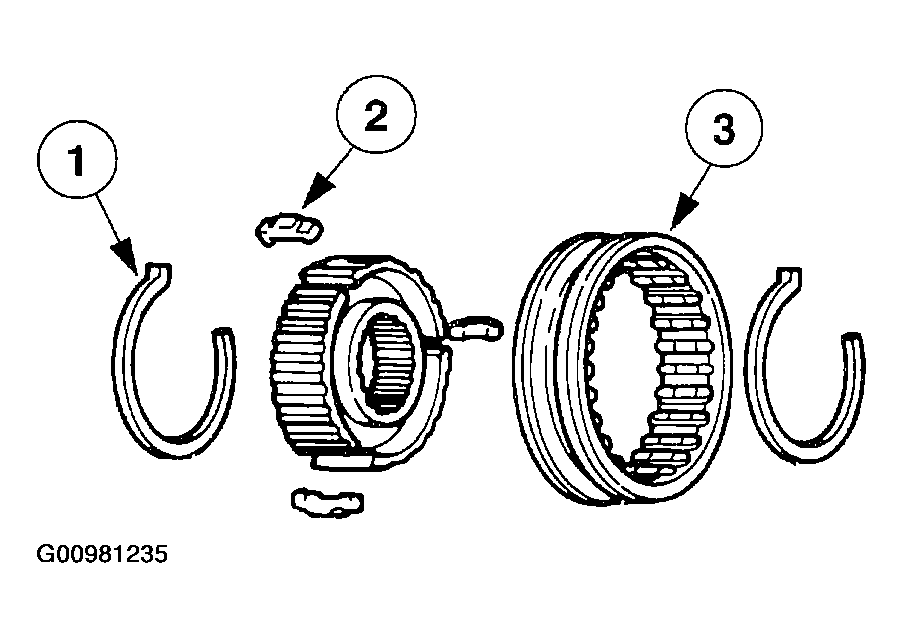

Fig 1: Disassembling Synchronizer Assembly
G00981235Courtesy of MAZDA MOTORS CORP.
NOTE:
  • Prior to disassembly, note the position of the index marks.
  1. Disassemble the synchronizer assembly.
    1. Remove the synchronizer blocking springs.
    2. Remove the synchronizer hub inserts.
    3. Separate the synchronizer hub from the sleeve.
  2. Inspect all synchronizer components for wear and damage.
