Unique Idle Concern

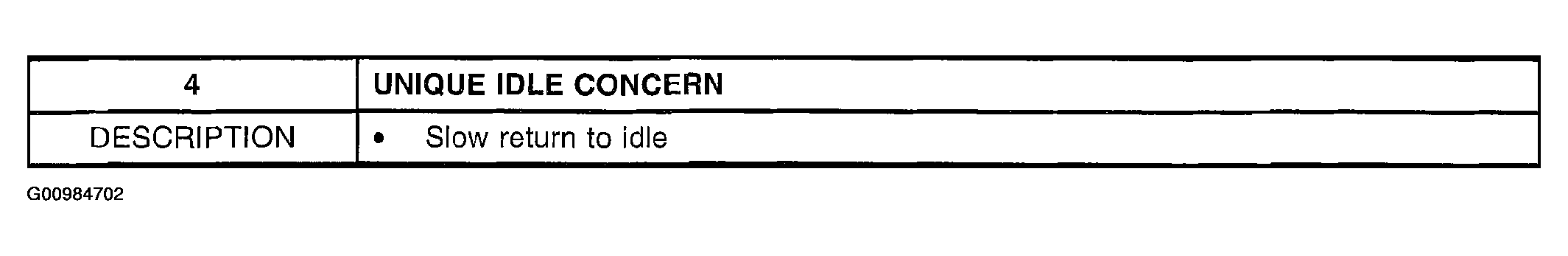

Fig 1: Chart 4 Unique Idle Concern: Description
G00984702Courtesy of MAZDA MOTORS CORP.

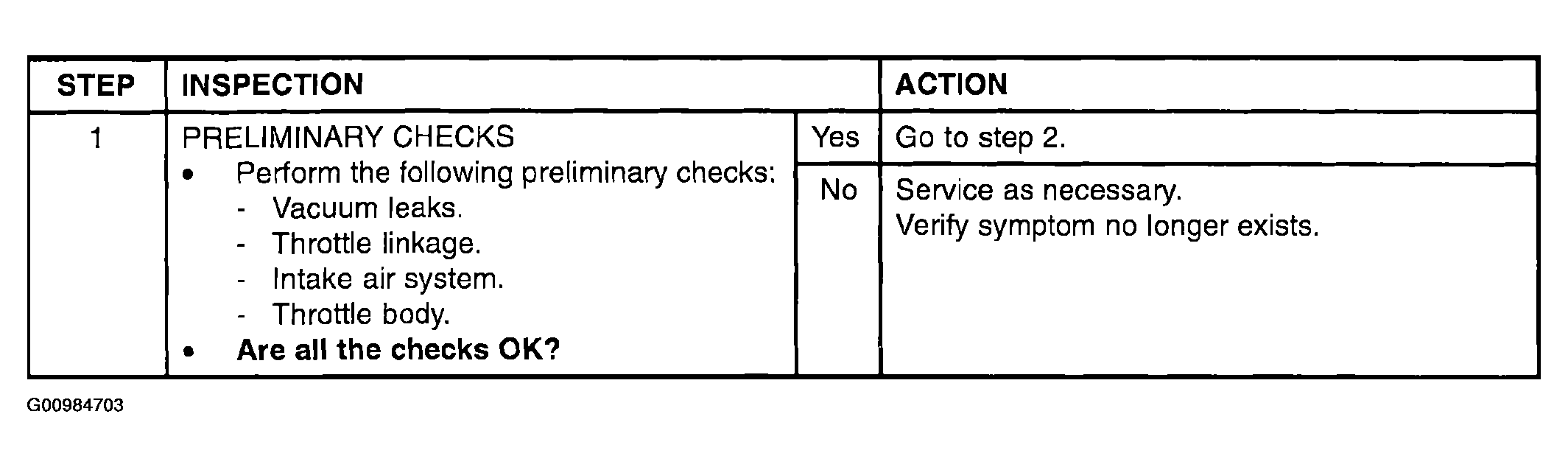

Fig 2: Chart 4 Unique Idle Concern: Inspection (Step 1)
G00984703Courtesy of MAZDA MOTORS CORP.

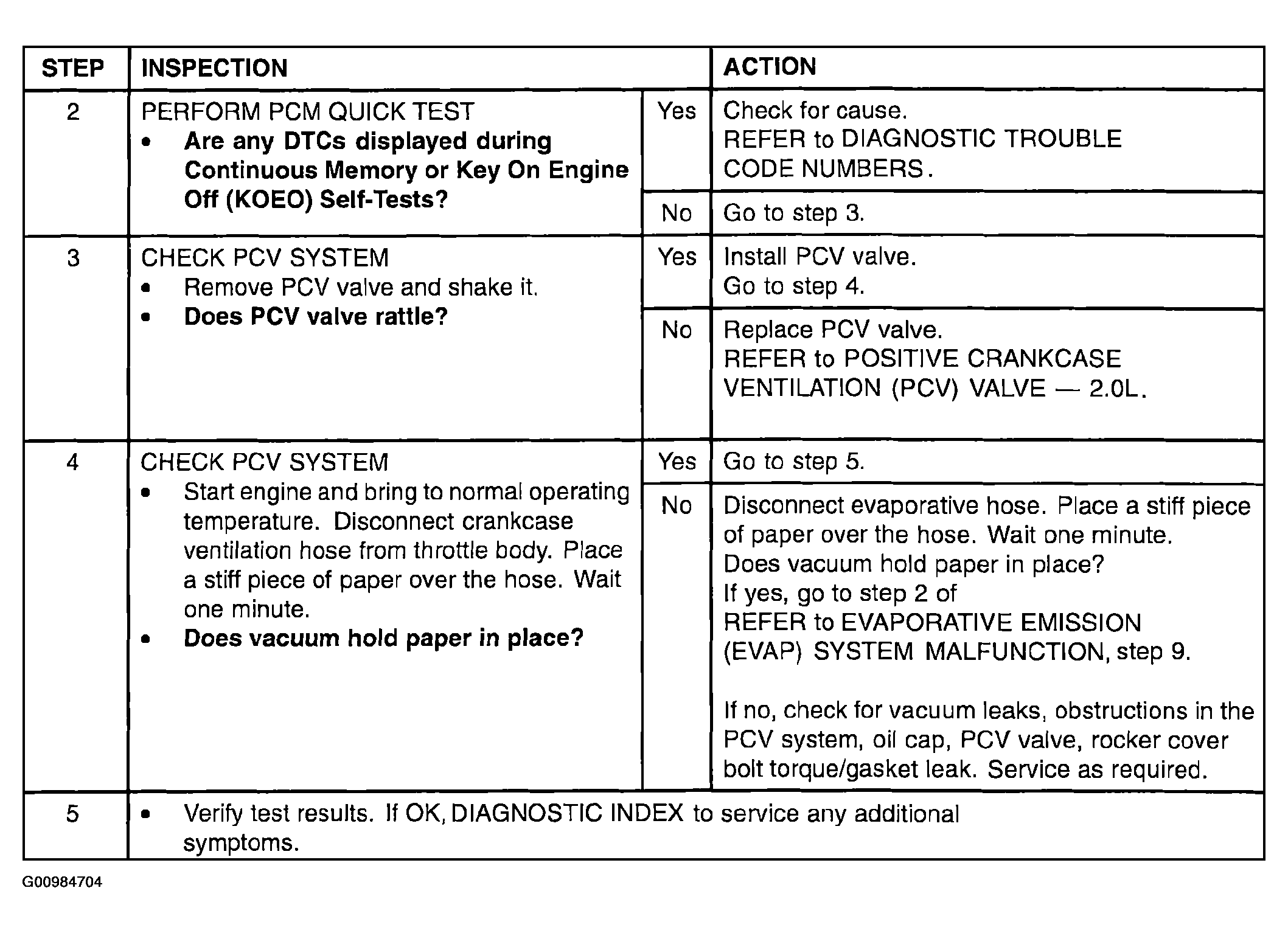

Fig 3: Chart 4 Unique Idle Concern: Inspection (Steps 2-5)
G00984704Courtesy of MAZDA MOTORS CORP.
