Transmitter Id Code Registration

NOTE:

• When registering the ID code into a keyless control module, verify that other transmitters are not being operated in the vicinity.
• After ID code registering, remove the key from the steering lock and verify that all doors lock/unlock normally using the transmitter.

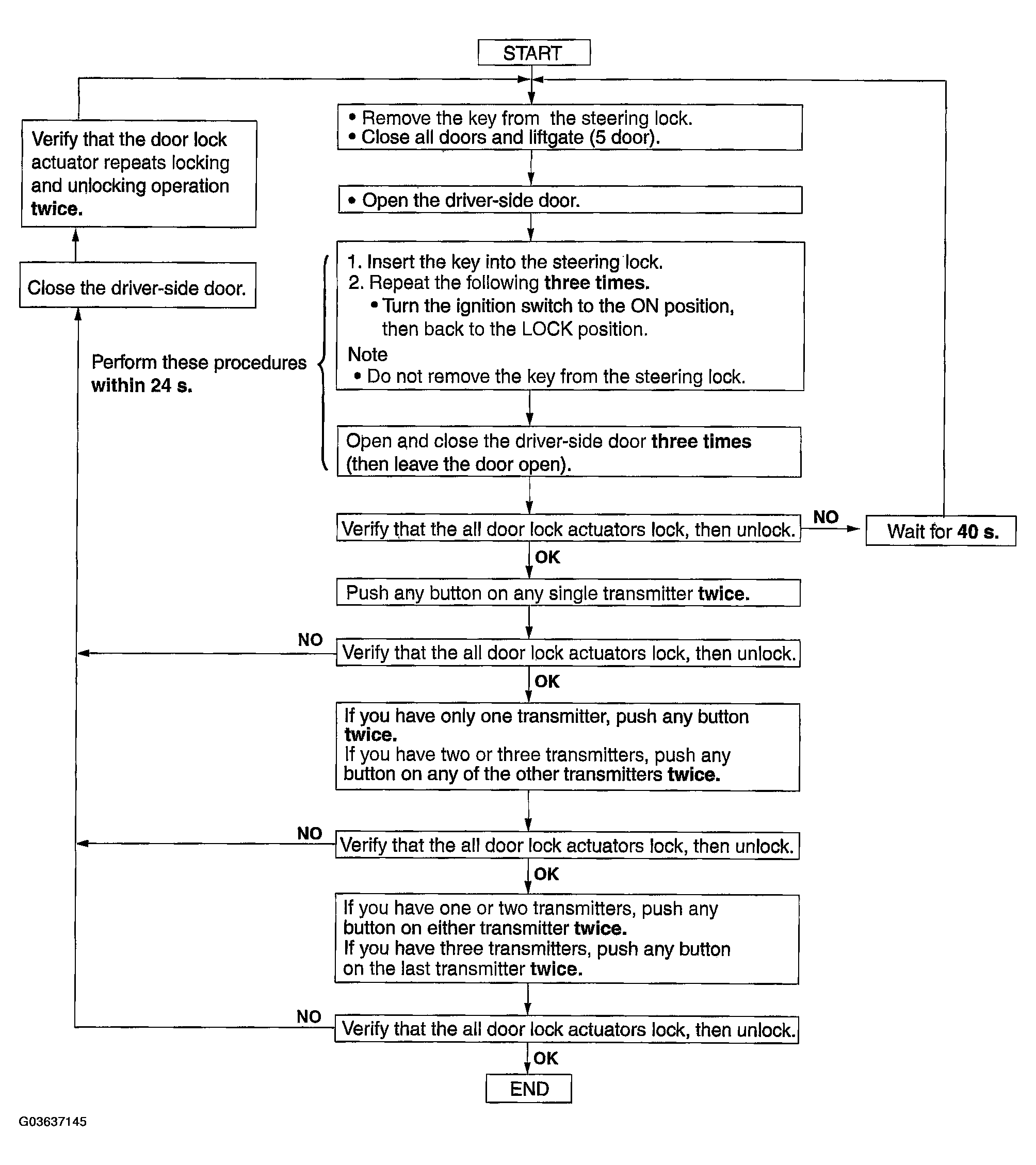

Fig 1: Transmitter ID Code Registration Flow Chart

Courtesy of MAZDA MOTORS CORP.
