Front Power Window Regulator Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
    2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
    3. Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)
    4. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION  )
    5. Power window motor (See POWER WINDOW MOTOR REMOVAL/INSTALLATION  )
  3. Remove the nuts.

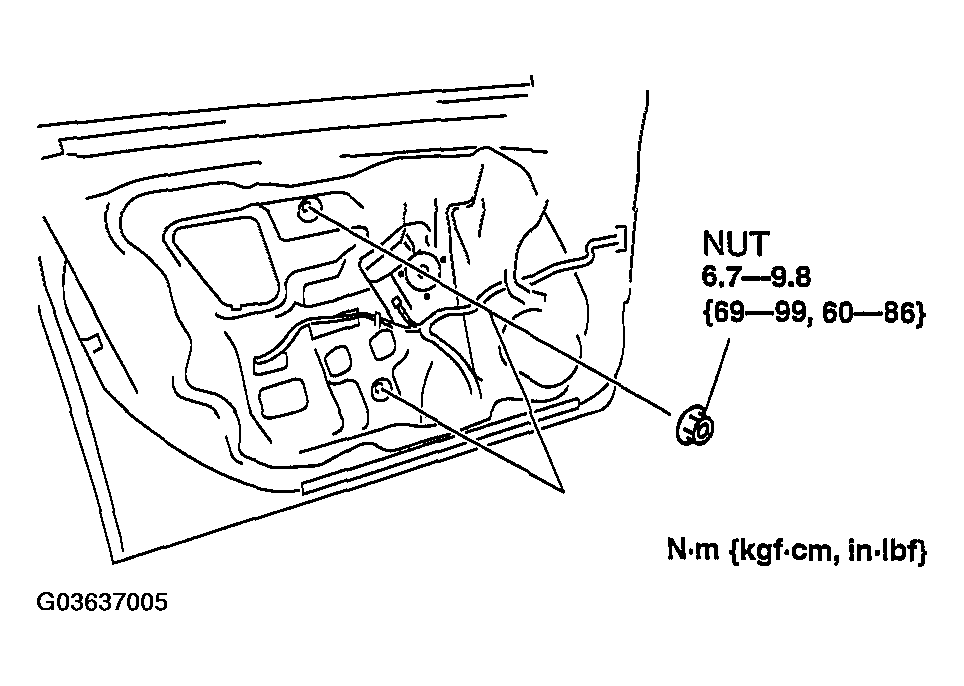

    Fig 1: Removing Nuts
    G03637005Courtesy of MAZDA MOTORS CORP.
  4. Insert your hand through the front speaker installation hole, rotate the drum housing in the direction shown in the figure and disengage the tabs from the rear door module.

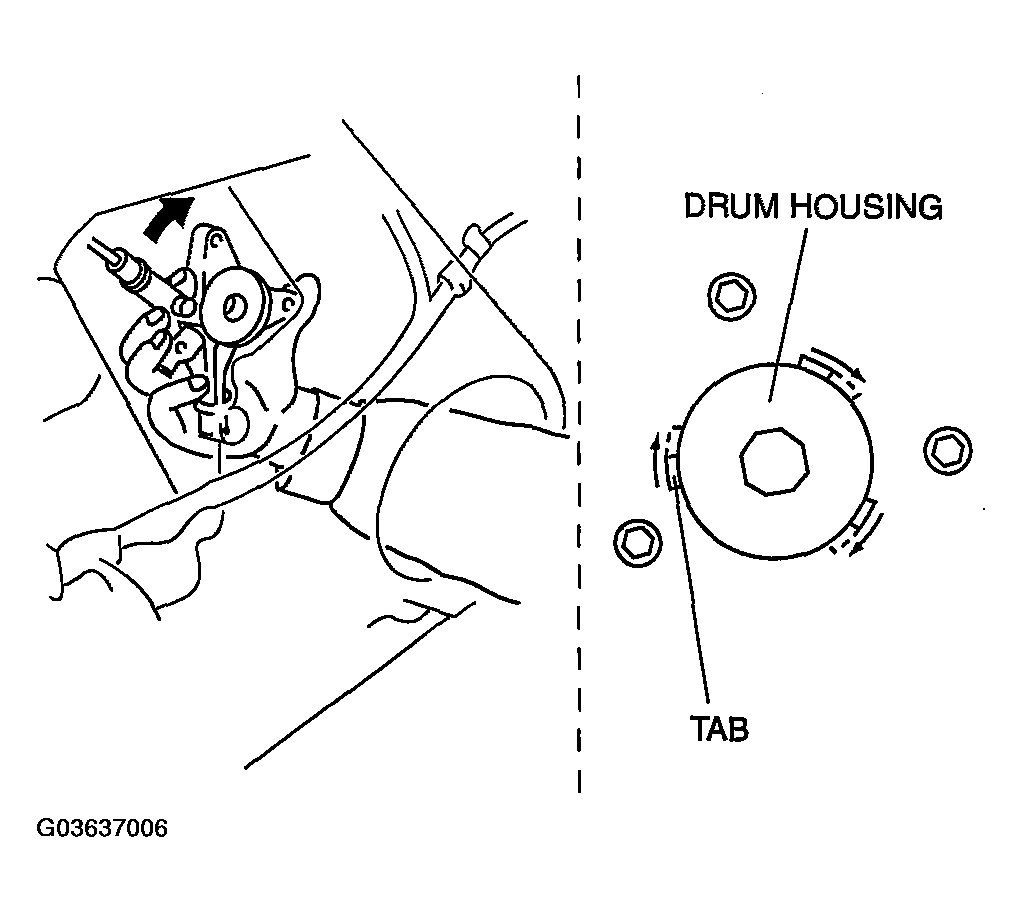

    Fig 2: Disconnecting Drum Housing From Rear Door Module
    G03637006Courtesy of MAZDA MOTORS CORP.
  5. Remove the front power window regulator through the speaker installation hole.
  6. Install in the reverse order of removal.
    CAUTION:
    • Make sure the cable does not unspool from the drum housing when installing.

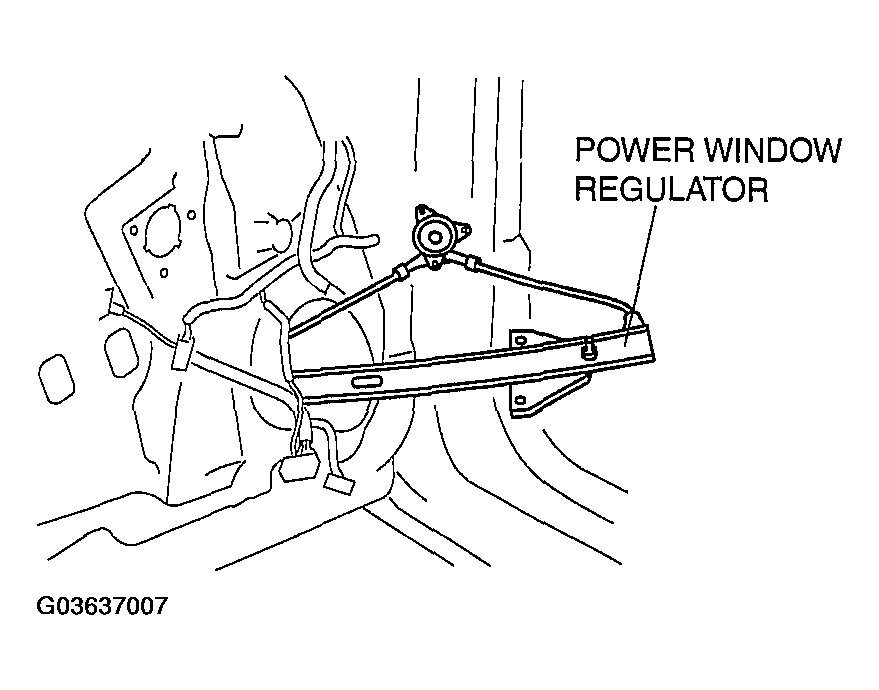

    Fig 3: Front Power Window Regulator Removal/Installation
    G03637007Courtesy of MAZDA MOTORS CORP.
