Power Window Main Switch Inspection

  1. When inspecting the passenger-side and rear power windows, turn the power-cut switch to UNLOCK.
  2. Inspect for continuity between the power window main switch terminals.
    • If not as specified, replace the power window main switch.

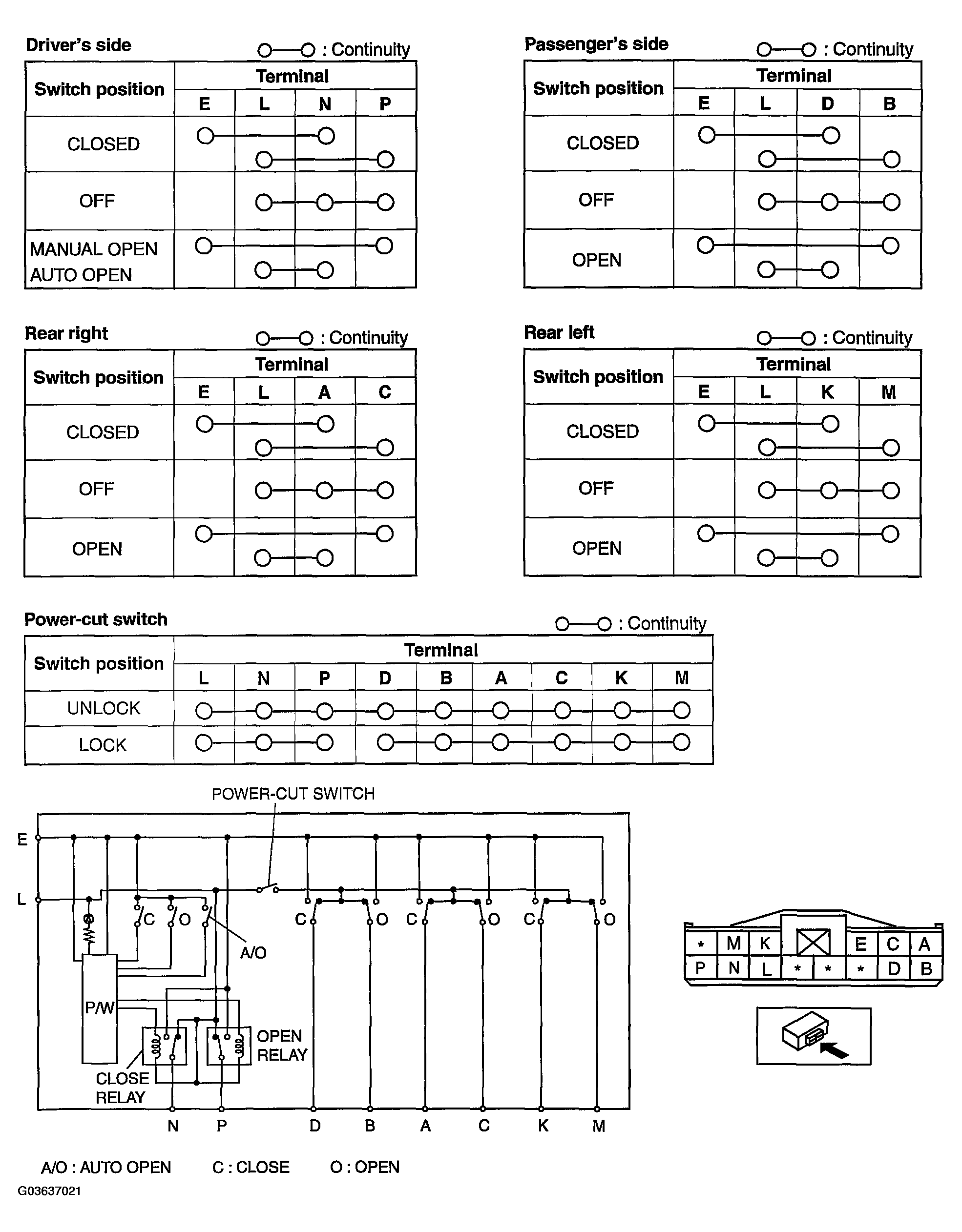

    Fig 1: Power Window Switch(s) Continuity Specifications
    G03637021Courtesy of MAZDA MOTORS CORP.
  3. Connect battery positive voltage to terminal E and ground to terminal I. Verify that there is continuity.
    • If not as specified, replace the power window main switch.
