Abs HU/Cm Removal/Installation: Notes
CAUTION:
- Do not separate the ABS HU and ABS CM unless replacing them, otherwise the ABS HU/CM may not function properly. When replacing them with new ones, always perform procedures according to the instructions included with the new parts.
- The internal parts of the ABS HU/CM could be damaged if dropped. Be careful not to drop the ABS HU/CM. Replace the ABS HU/CM if it is subjected to an impact.
- Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION .)
- Remove the reserve hose. (MTX) (See RESERVE HOSE REMOVAL NOTE .) (See CLUTCH PIPE AND CLUTCH RESERVE HOSE REMOVAL NOTE .) (See RESERVE HOSE INSTALLATION NOTE .) (See CLUTCH PIPE AND CLUTCH RESERVE HOSE INSTALLATION NOTE .)

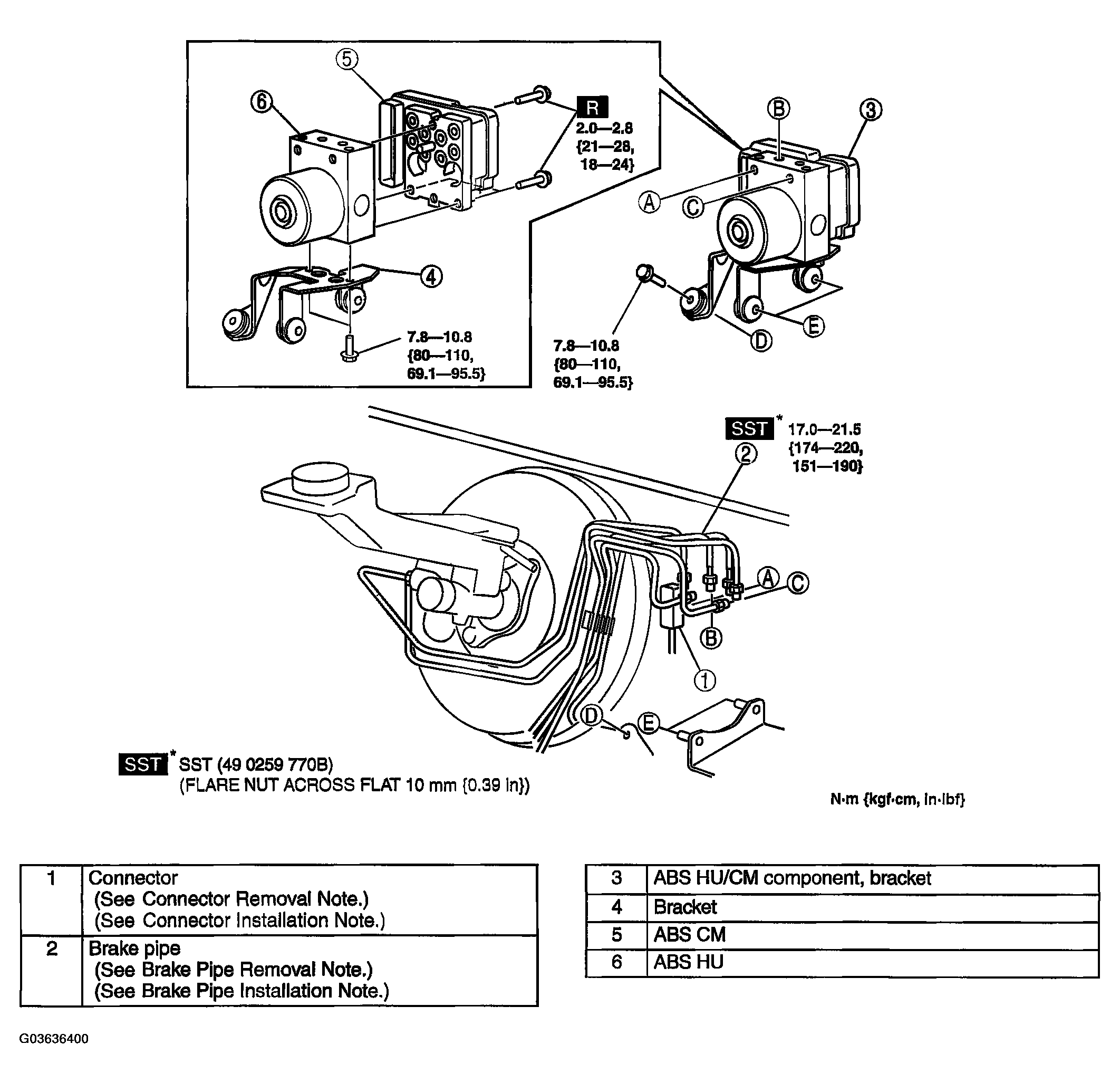

- Remove in the order indicated in the figure.
- Install in the reverse order of removal.
