Battery Box Installation Note

  1. Assemble with the battery box hooks E aligned with the battery tray holes at two points.

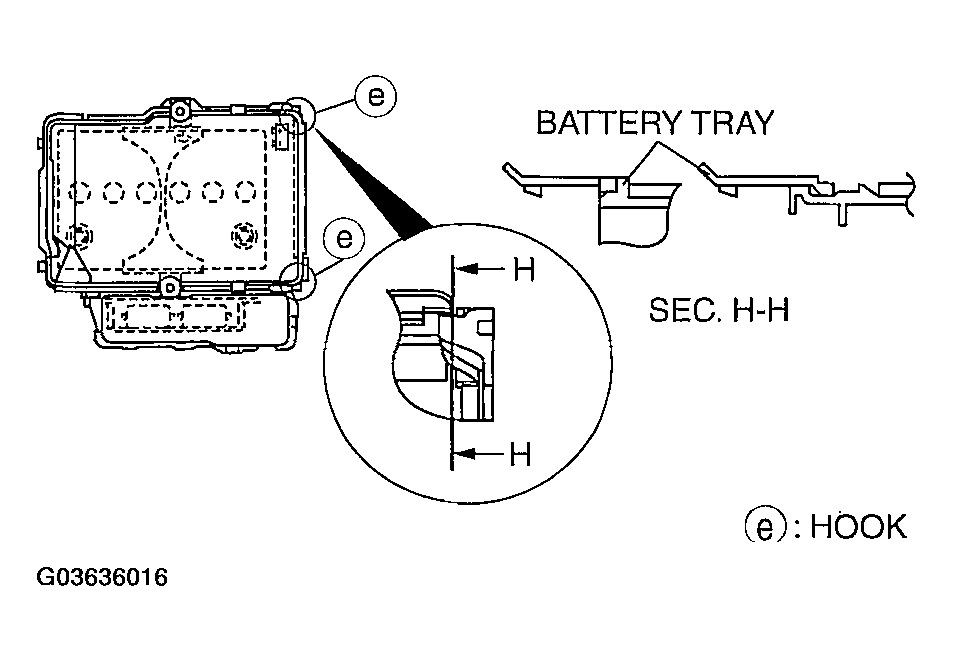

    Fig 1: Installing Battery Box
    G03636016Courtesy of MAZDA MOTORS CORP.
