Home >> Mazda >> 2005 >> 3 i, Automatic >> Repair and Diagnosis >> Electrical >> Charging Systems >> Charging System >> Battery Removal/Installation >> Notes

Battery Removal/Installation: Notes

  1. Remove in the order indicated in the figure.

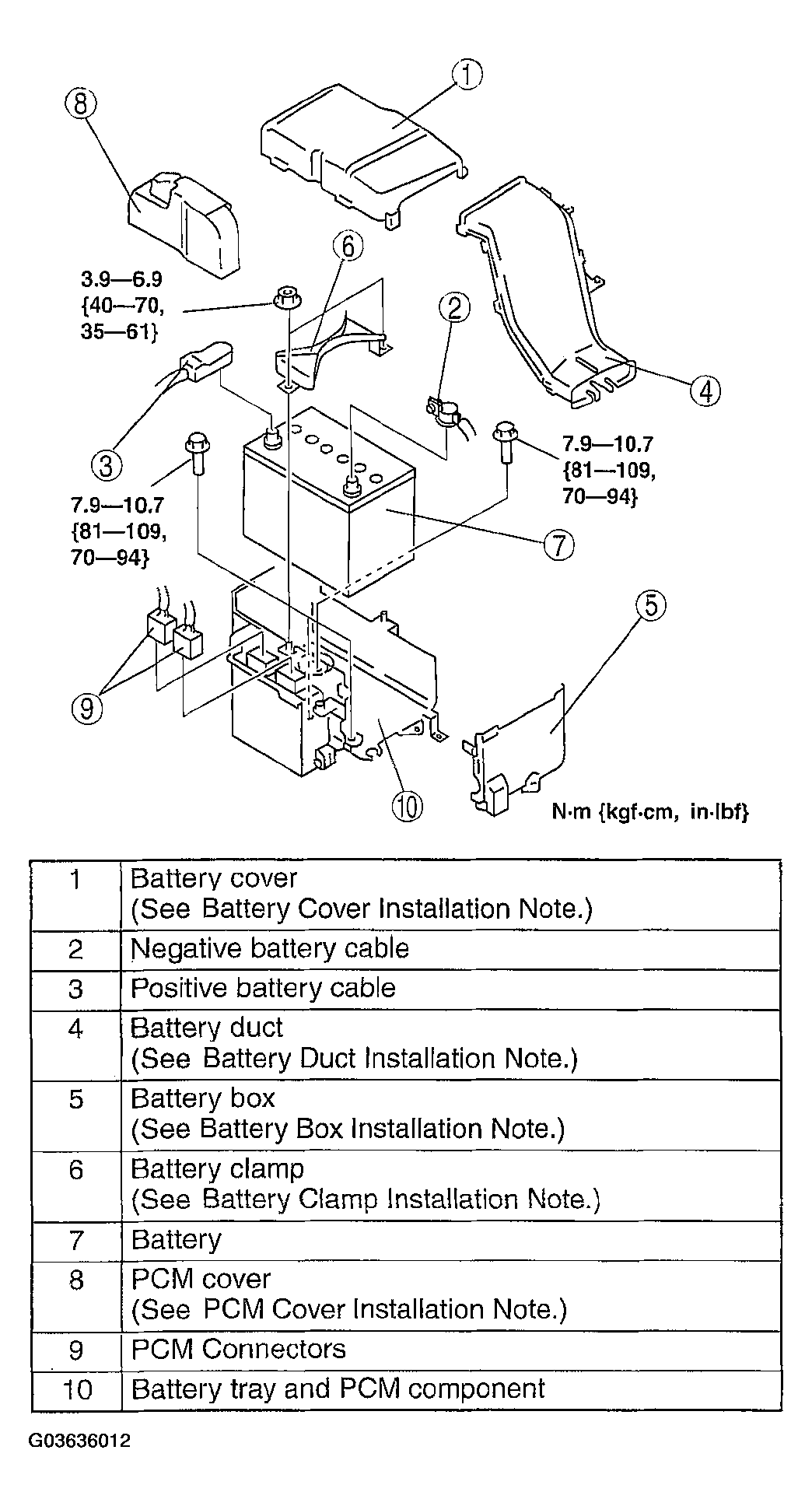

    Fig 1: Battery Removal Sequence
    G03636012Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
