Generator Inner Parts: Rectifier

  1. Inspect for continuity of the diodes using an ohmmeter.
    • If not as specified, replace the rectifier.

    Specification

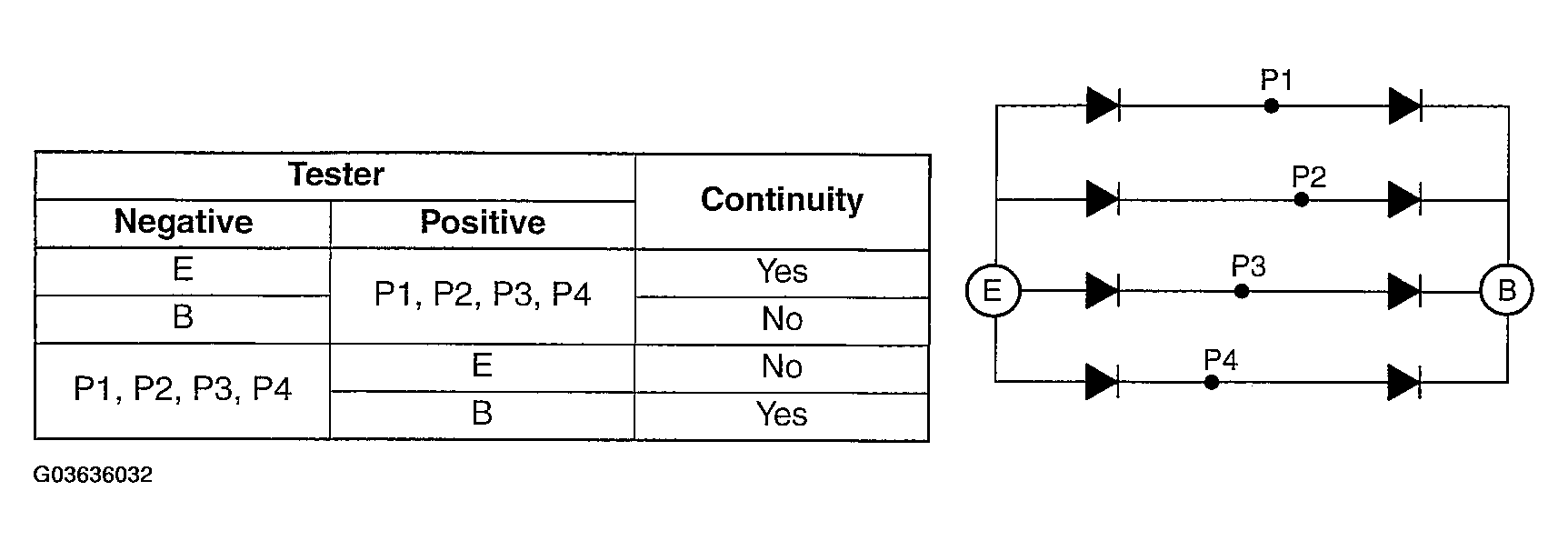

    Fig 1: Identifying Rectifier Specifications
    G03636032Courtesy of MAZDA MOTORS CORP.

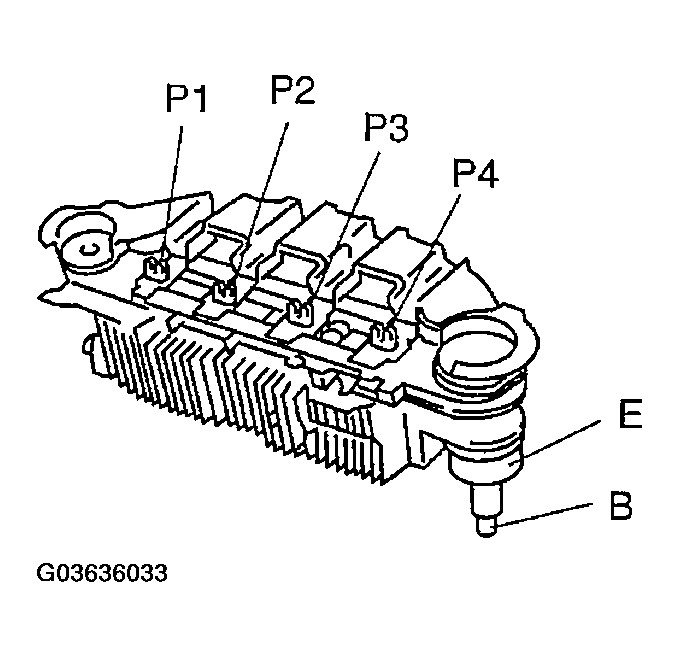

    Fig 2: Identifying Rectifier Connector Terminals
    G03636033Courtesy of MAZDA MOTORS CORP.
