Check code 26

CHECK CODE 26

Check code 26 Odometer/tripmeter display signal
INSPECTION CONDITION DISPLAY ACTION
Select check code 26.
  • Display is normal.
  • Warning and indicator light illuminated.
    • Generator warning light
    • AT warning light
    • ABS warning light
    • Brake system warning light
    • Selector indicator light
    • MIL
    • EHPAS warning light
    • Cruise main indicator light
    • Cruise set indicator light
    • Tire pressure warning light
    • Security light
    • Door ajar warning light
    • Air bag system warning light
    • Turn indicator light
    • Seat belt warning light
    • High-beam indicator light
  • The odometer/tripmeter is normal.
  • Warning and indicator is normal.
Except above Replace the instrument cluster.

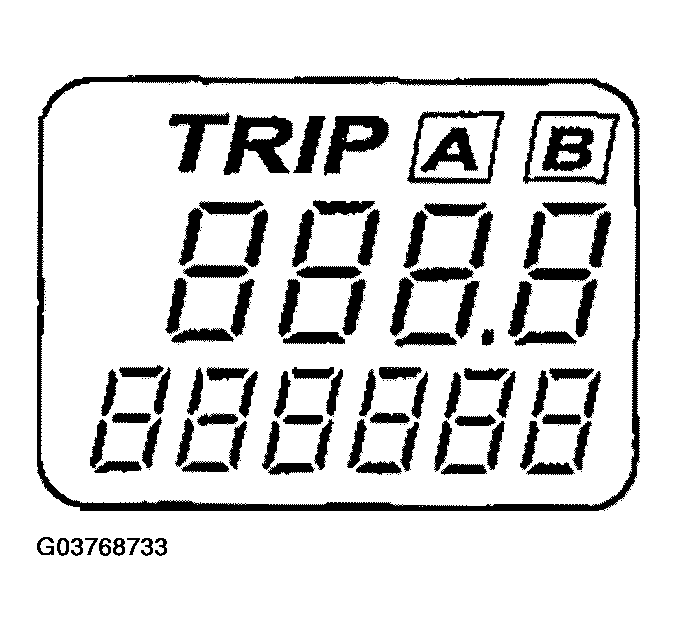

Fig 1: Trip Meter Display
G03768733Courtesy of MAZDA MOTORS CORP.
