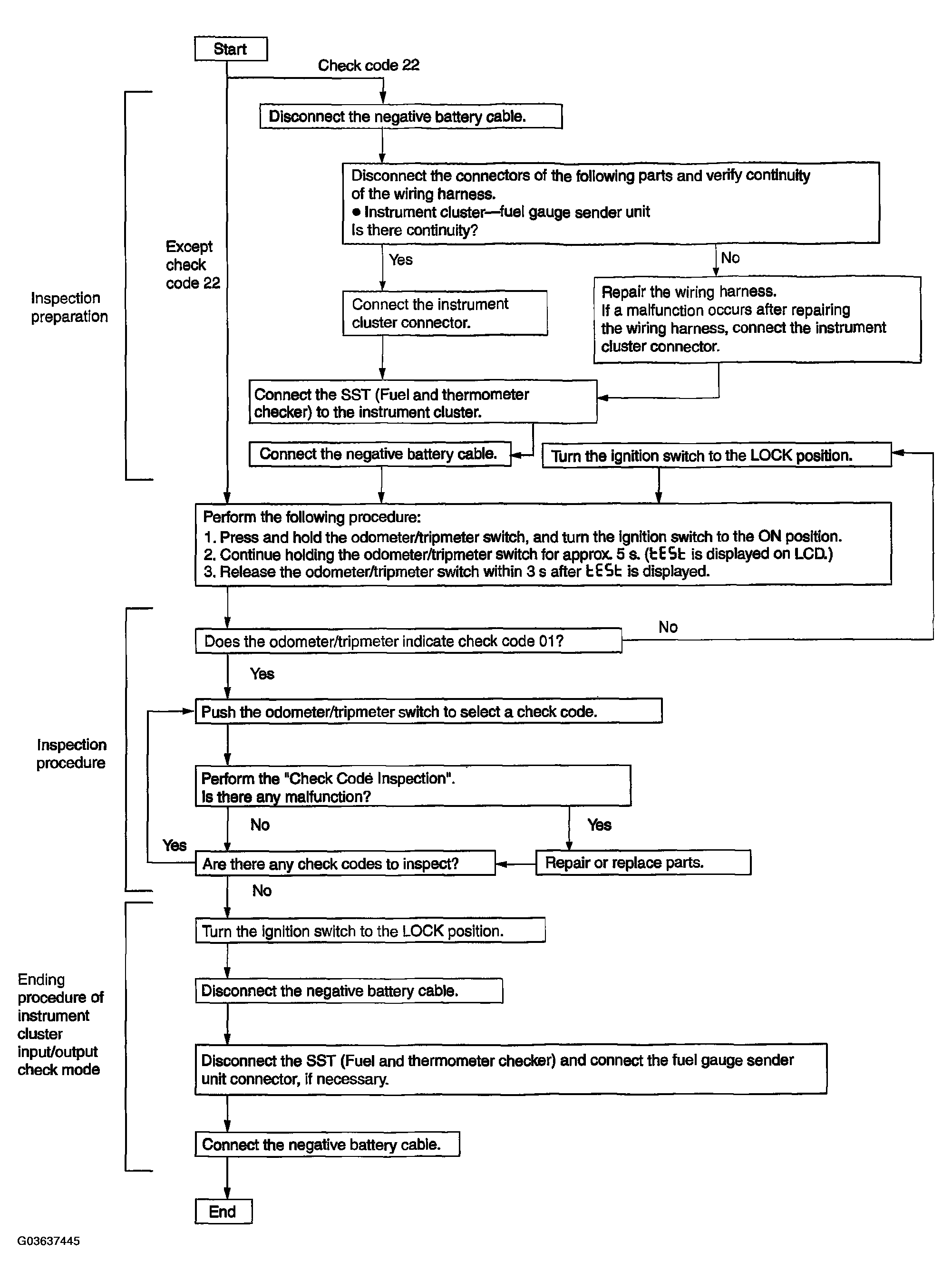

Instrument Cluster Input/Output Check Mode: Notes
NOTE:
- In this mode, it is possible to verify the items in the following chart.
CHECK CODE TABLE
| Check code | Check item | Related items |
|---|---|---|
| 08 | TNS relay |
|
| 12 | Speedometer | Speedometer |
| 13 | Tachometer | Tachometer |
| 14 | Buzzer | Buzzer |
| 16 | Fuel-level warning light | Fuel-level warning light |
| 22 | Fuel gauge sender unit | Fuel gauge |
| 23 | Fuel gauge | Fuel gauge |
| 25 | Water temperature gauge | Water temperature gauge |
| 26 |
|
|
| 31 | Key reminder switch | Key reminder warning alarm |
| 32 | Indicator buzzer | Indicator buzzer |
| 55 | Dimmer switch | Panel light control |
NOTE:
- Check codes which are not listed may be indicated, but they cannot be inspected.
- The check codes are displayed in numerical order. (While performing the inspection, if you want to inspect a check code with a number smaller than the code number you are currently inspecting, terminate the check mode then repeat the inspection from the beginning.)
- If a speed signal is input to the instrument cluster (the wheels are rotated) while a code other than check code 50 or 51 is displayed, the input/output check mode will be cancelled.
- The check codes can be fast-forwarded by pushing and holding the odometer/tripmeter switch for 1 s or more.
