Joint Hose Installation Note

  1. Install the joint hose and clamp as shown in the figure.

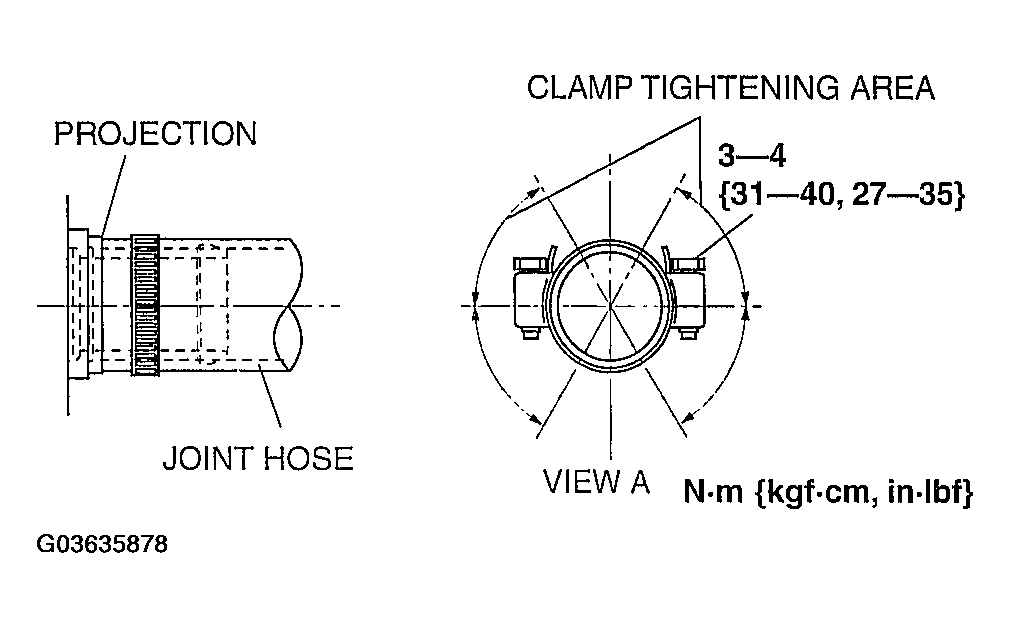

    Fig 1: Identifying Proper Position Of Joint Hose Clamp
    G03635878Courtesy of MAZDA MOTORS CORP.
