Symptom Troubleshooting [Engine]
>>
Quick Diagnostic Chart
Quick Diagnostic Chart

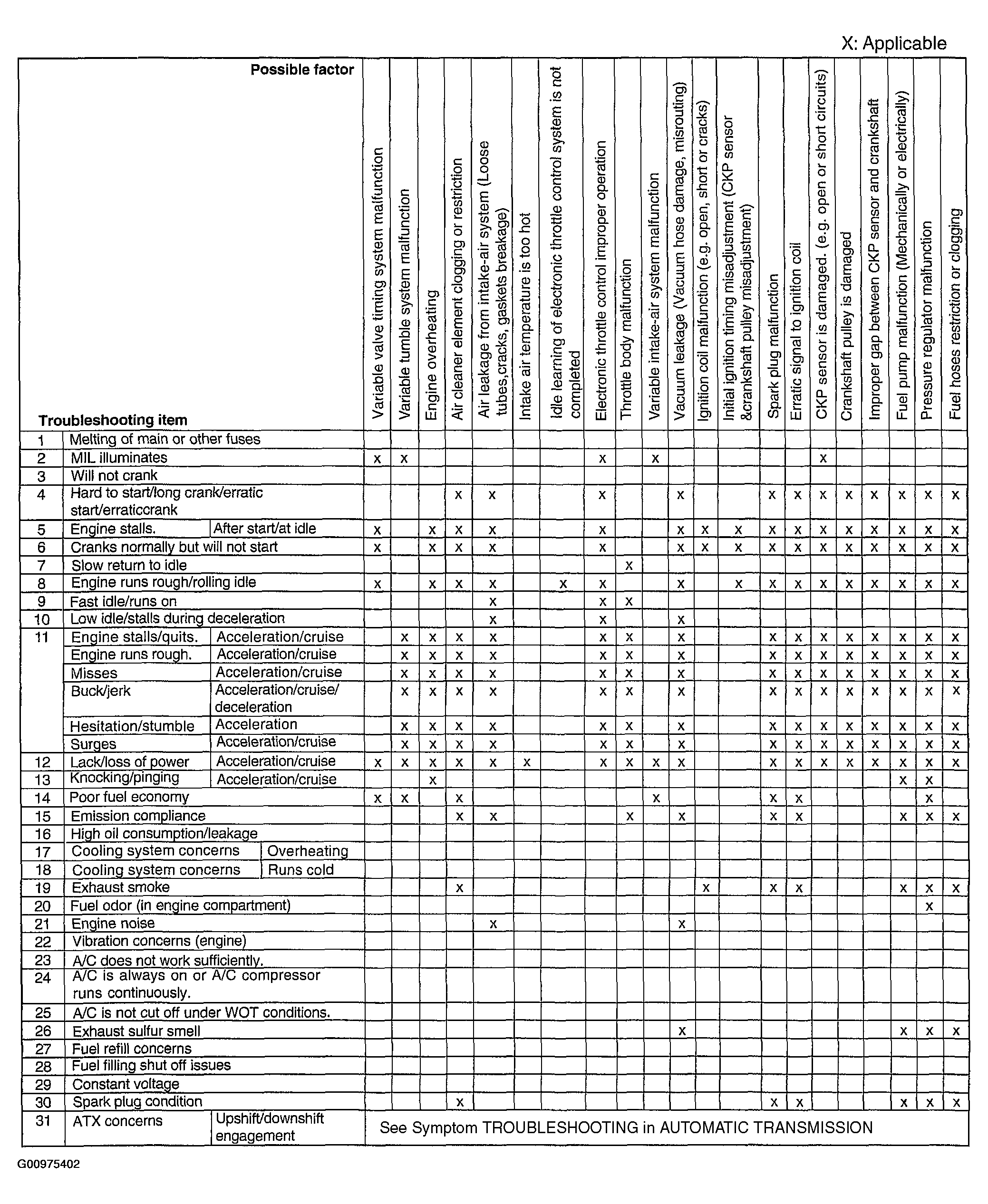

Fig 1: Engine Symptom Troubleshooting - Quick Diagnostic Chart (1 Of 4)
Courtesy of MAZDA MOTORS CORP.

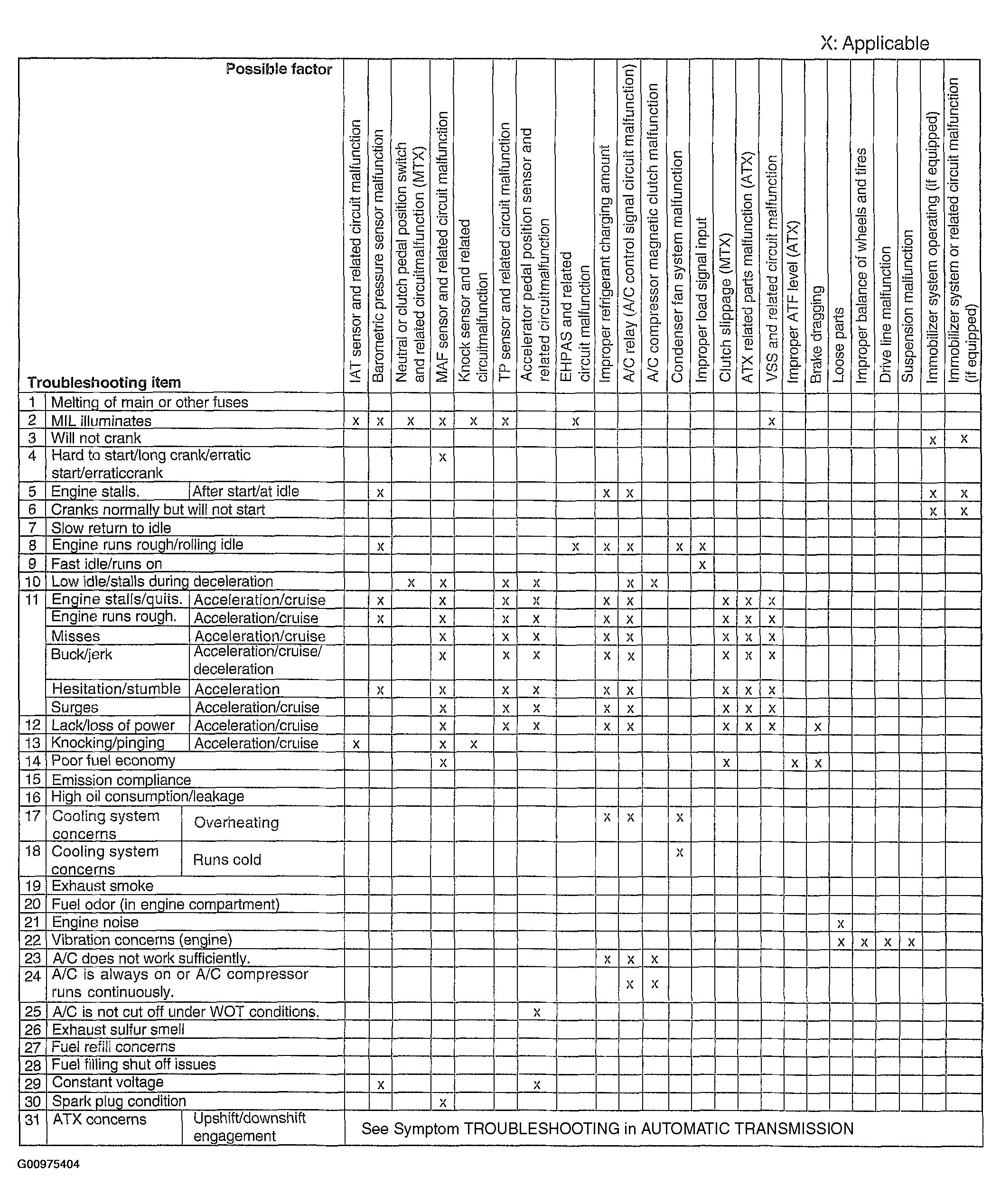

Fig 2: Engine Symptom Troubleshooting - Quick Diagnostic Chart (2 Of 4)
Courtesy of MAZDA MOTORS CORP.

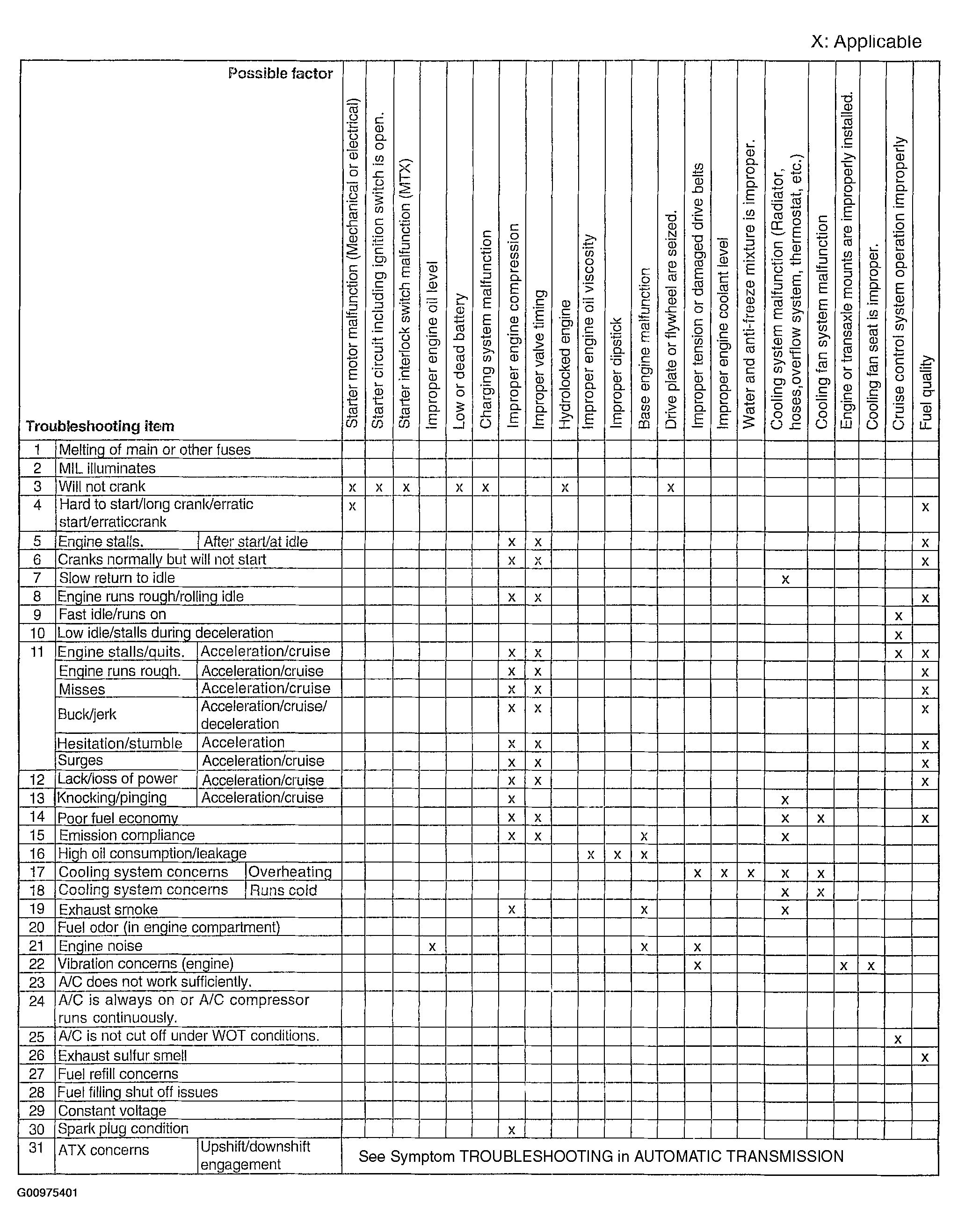

Fig 3: Engine Symptom Troubleshooting - Quick Diagnostic Chart (3 Of 4)
Courtesy of MAZDA MOTORS CORP.

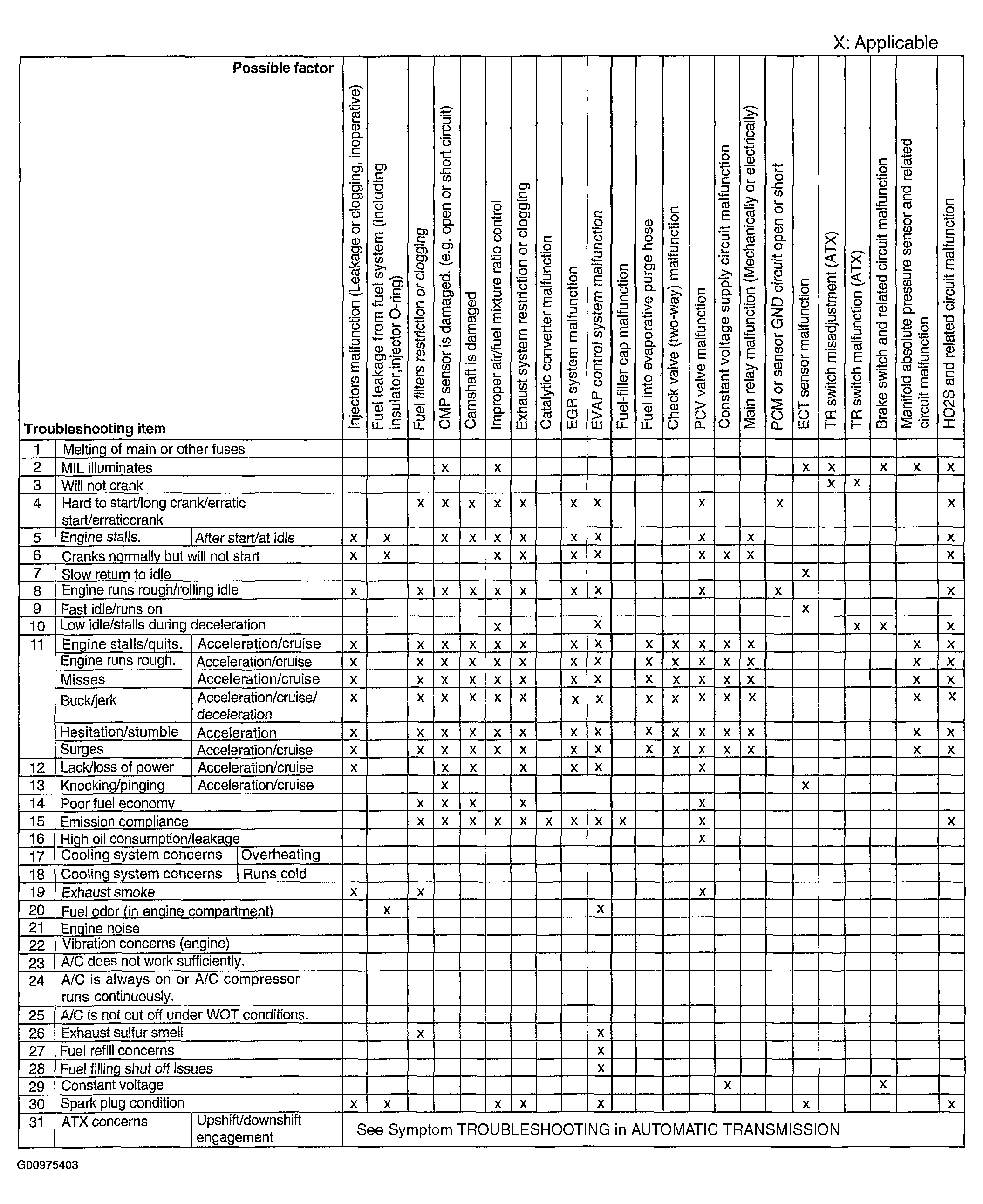

Fig 4: Engine Symptom Troubleshooting - Quick Diagnostic Chart (4 Of 4)
Courtesy of MAZDA MOTORS CORP.
