ECT Sensor Resistance Inspection: Specification

RESISTANCE (KILOHM) SPECIFICATION CHART

Water temperature (°C {°F})	Resistance (kilohm)
20 {68}	35.48-39.20
70 {158}	5.07-5.60
80 {176}	3.65-4.02

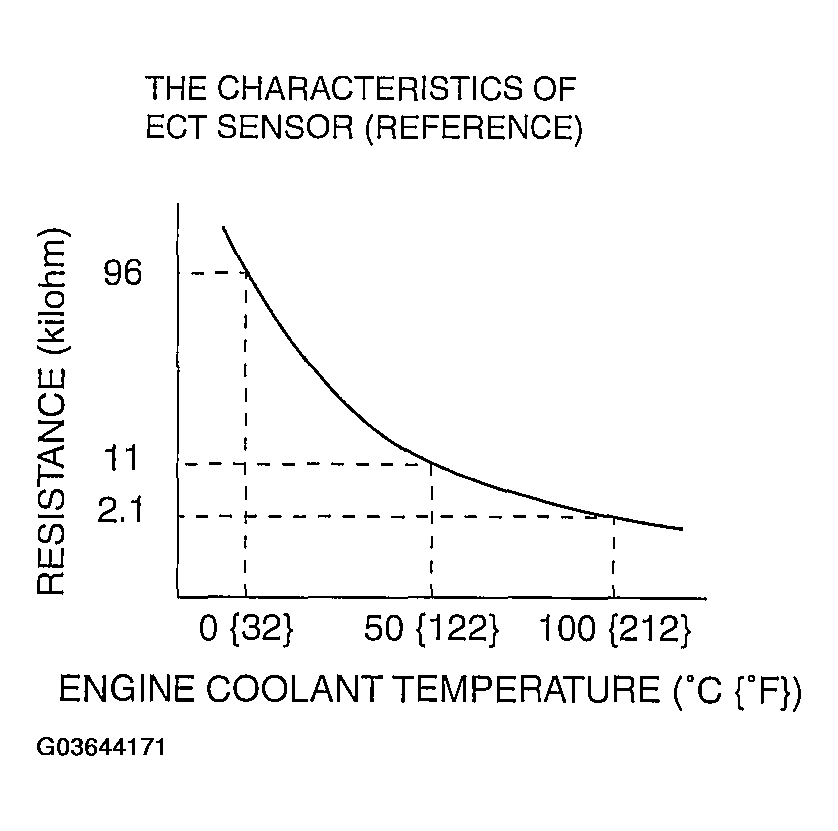

Fig 1: Identifying Resistance And Temperature Graph

Courtesy of MAZDA MOTORS CORP.
