Pcm Removal/Installation

NOTE:

For PCM replacement, setup the WDS and perform the PCM configuration. (See PCM REPLACEMENT .)

Disconnect the negative battery cable.
Remove in the order indicated in the table.

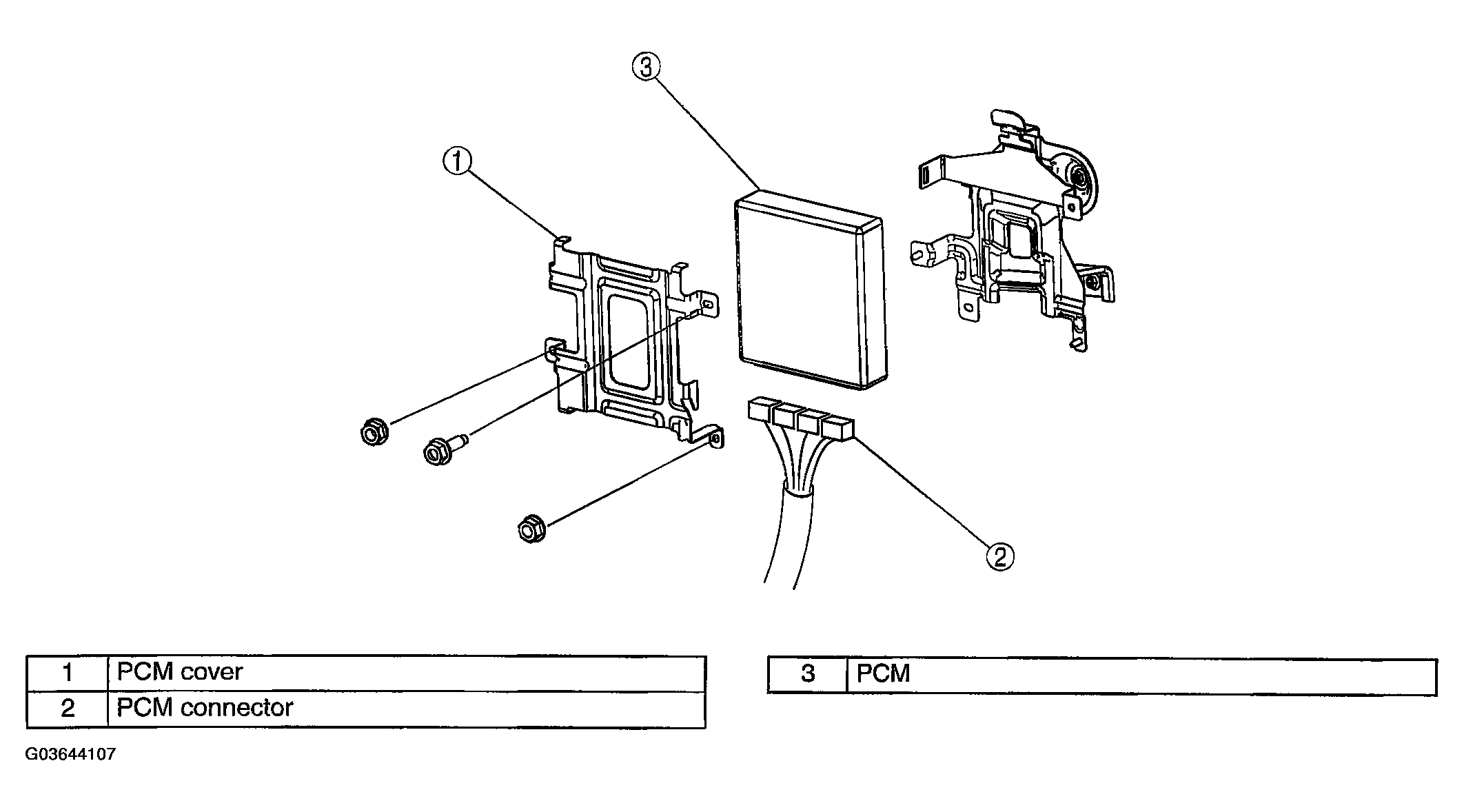

Fig 1: Removing PCM
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
