Generator Disassembly/Assembly: AJ

  1. Disassemble in the order indicated in the table.

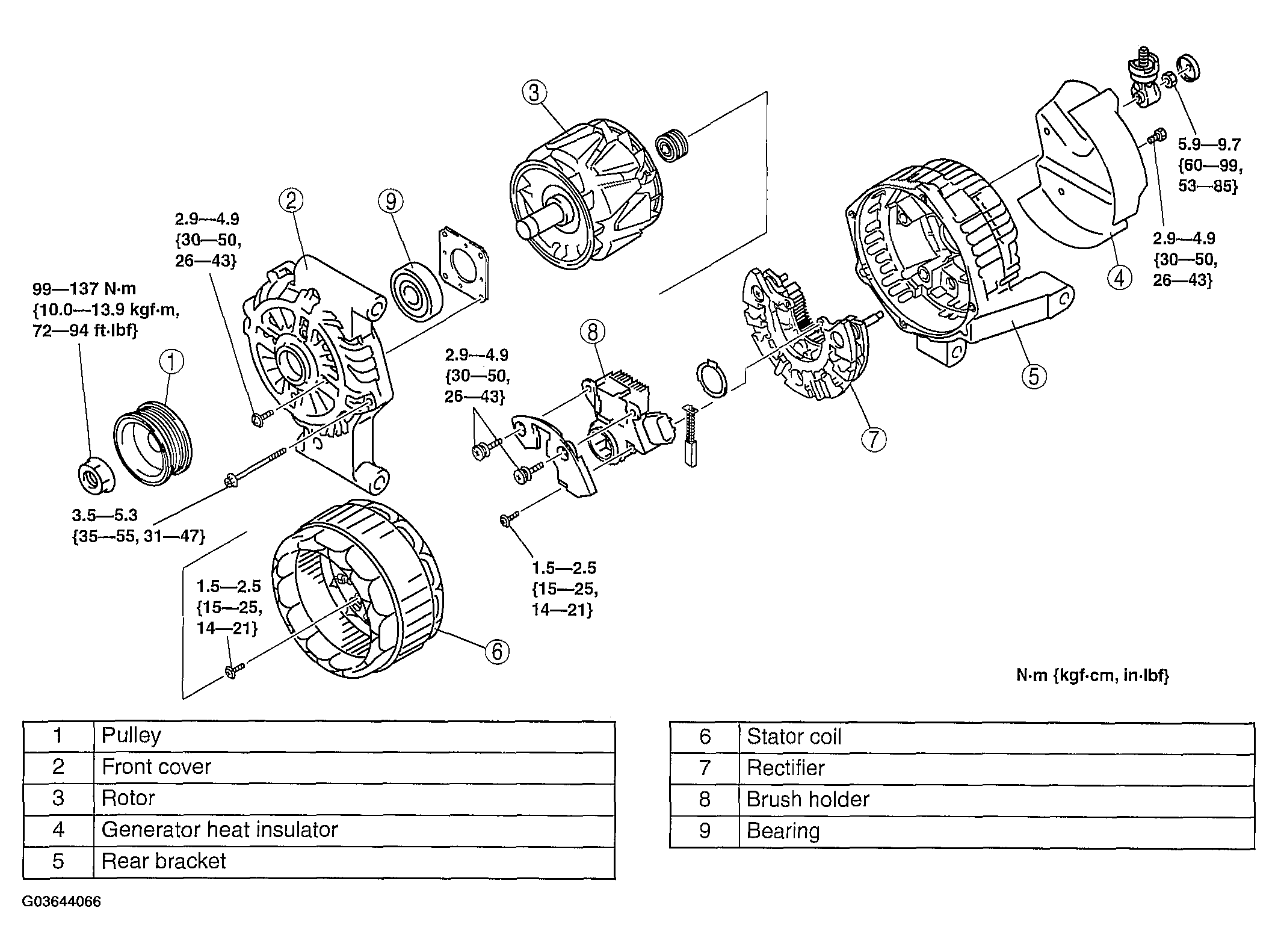

    Fig 1: Exploded View Of Generator (AJ) (Torque Specs)
    G03644066Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
