Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

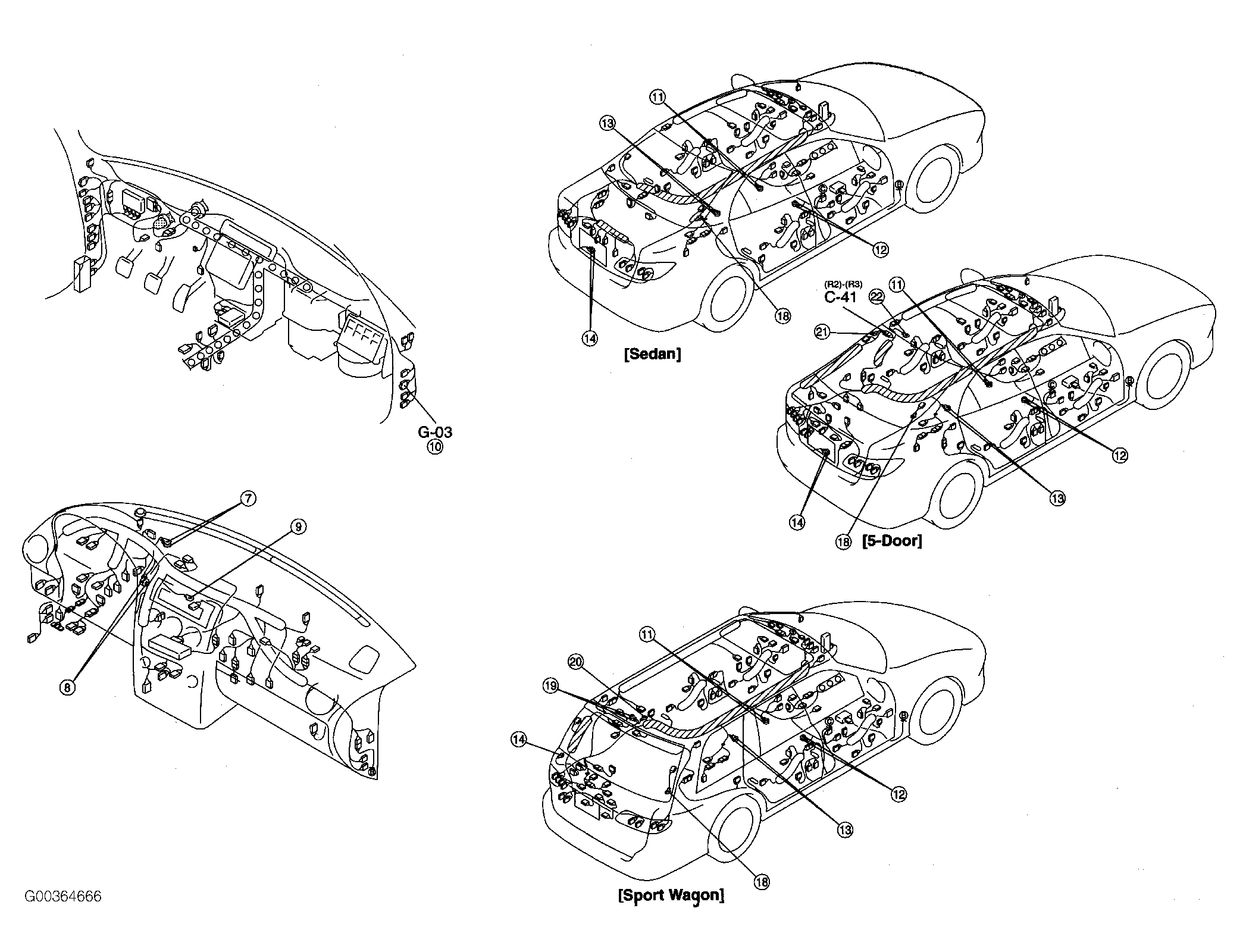

Fig 1: Vehicle Grounds

G00364666

Courtesy of MAZDA MOTORS CORP.

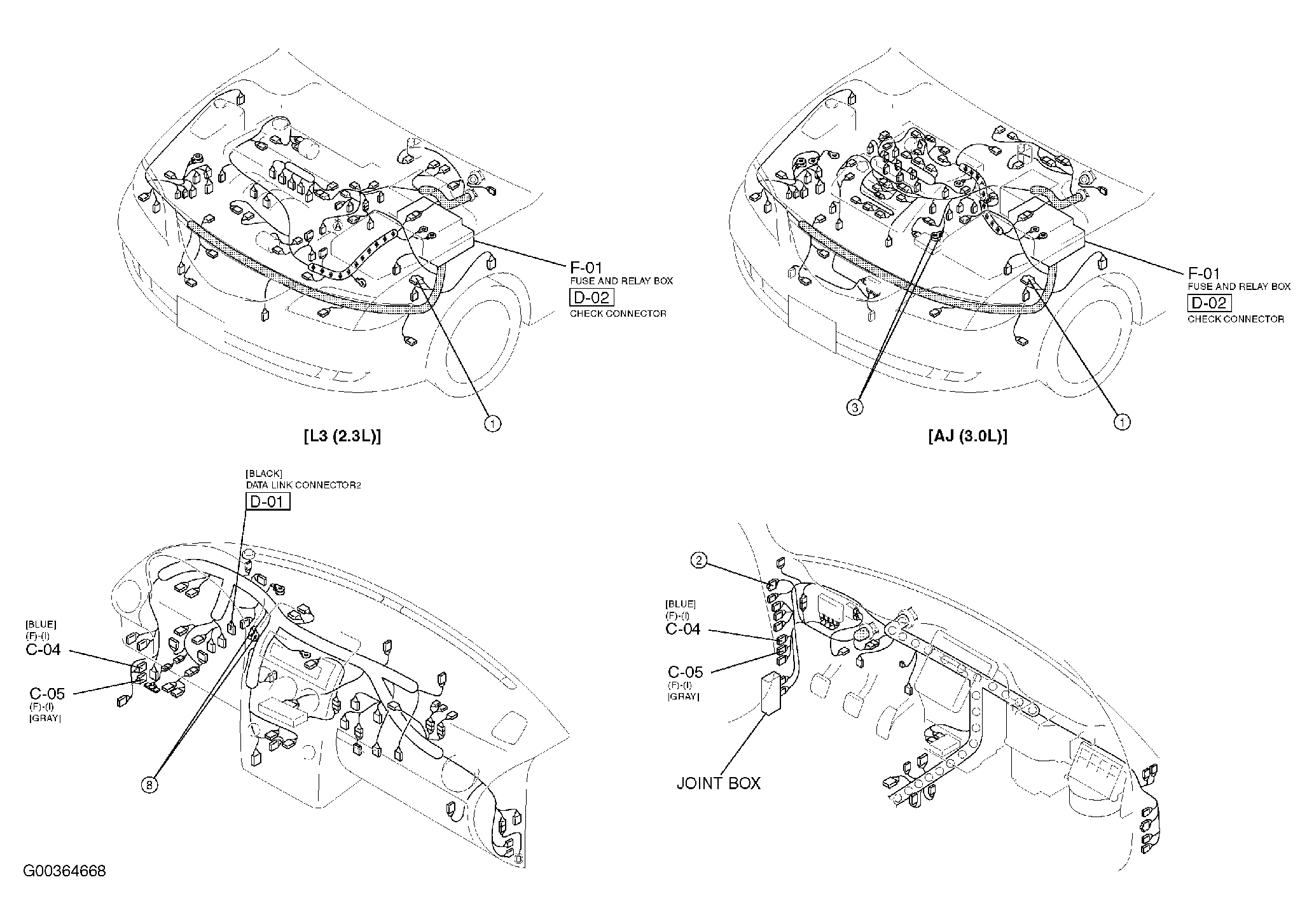

Fig 2: Immobilizer System

G00364668

Courtesy of MAZDA MOTORS CORP.

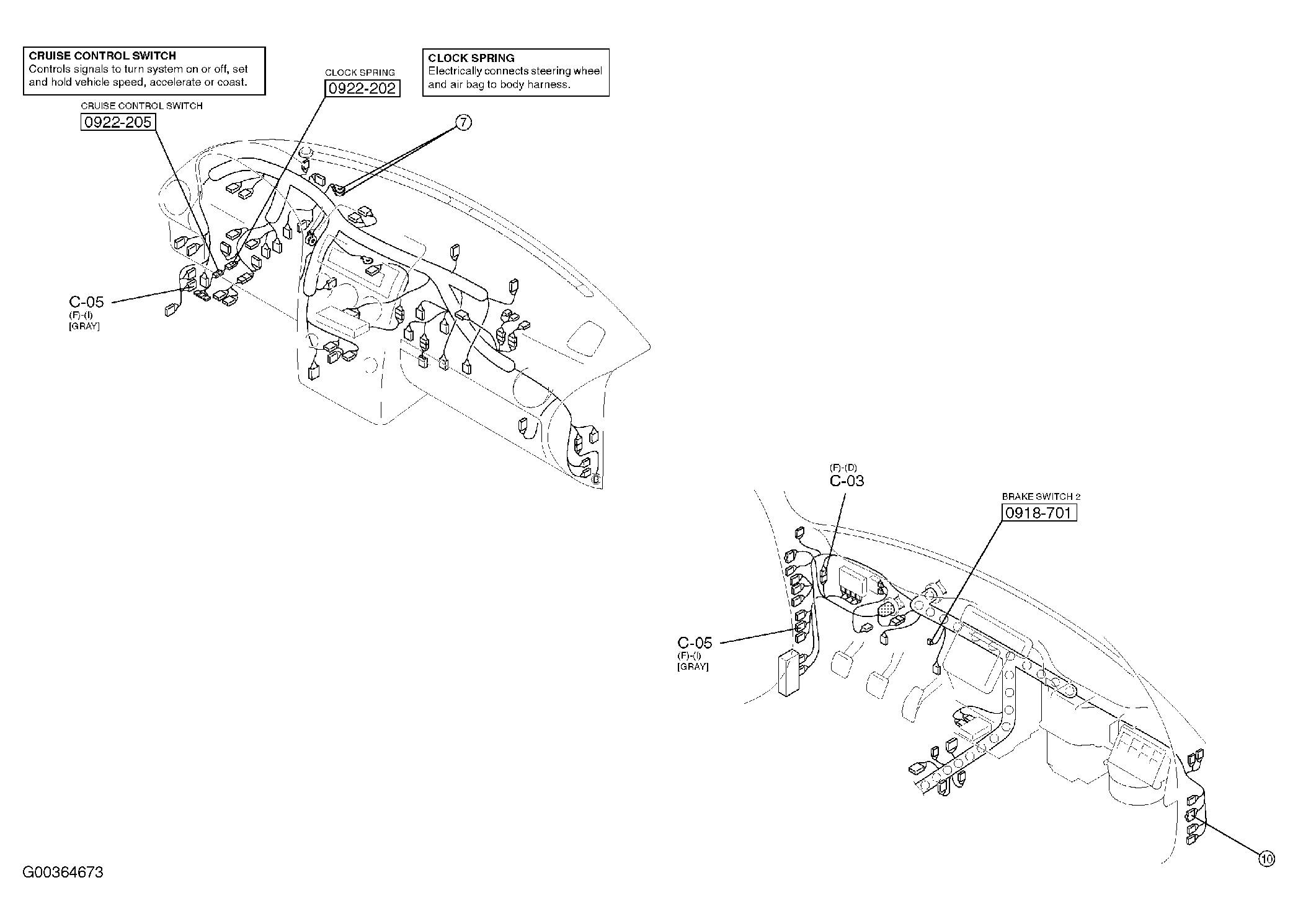

Fig 3: Cruise Control

G00364673

Courtesy of MAZDA MOTORS CORP.

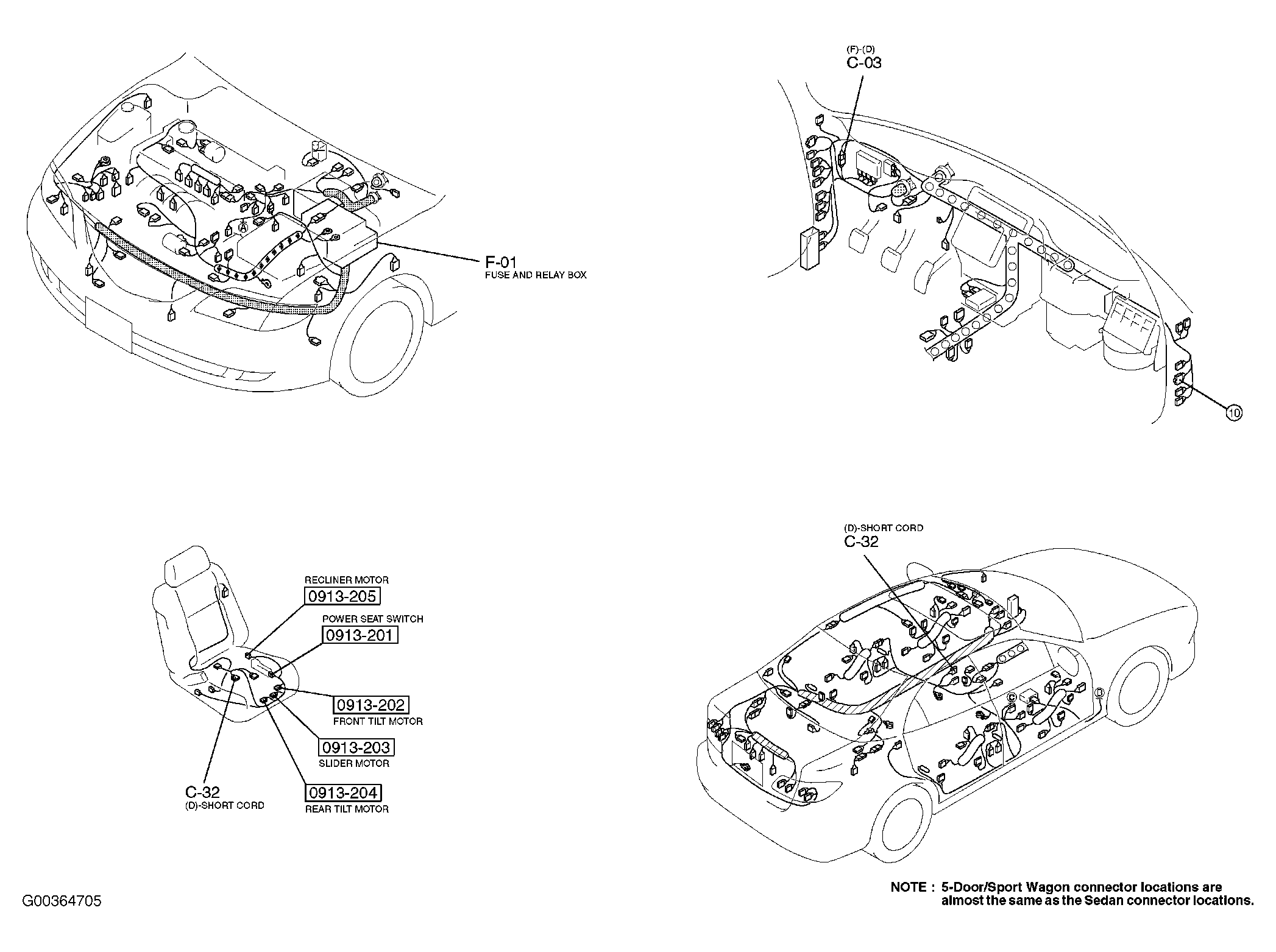

Fig 4: Power Seat

G00364705

Courtesy of MAZDA MOTORS CORP.

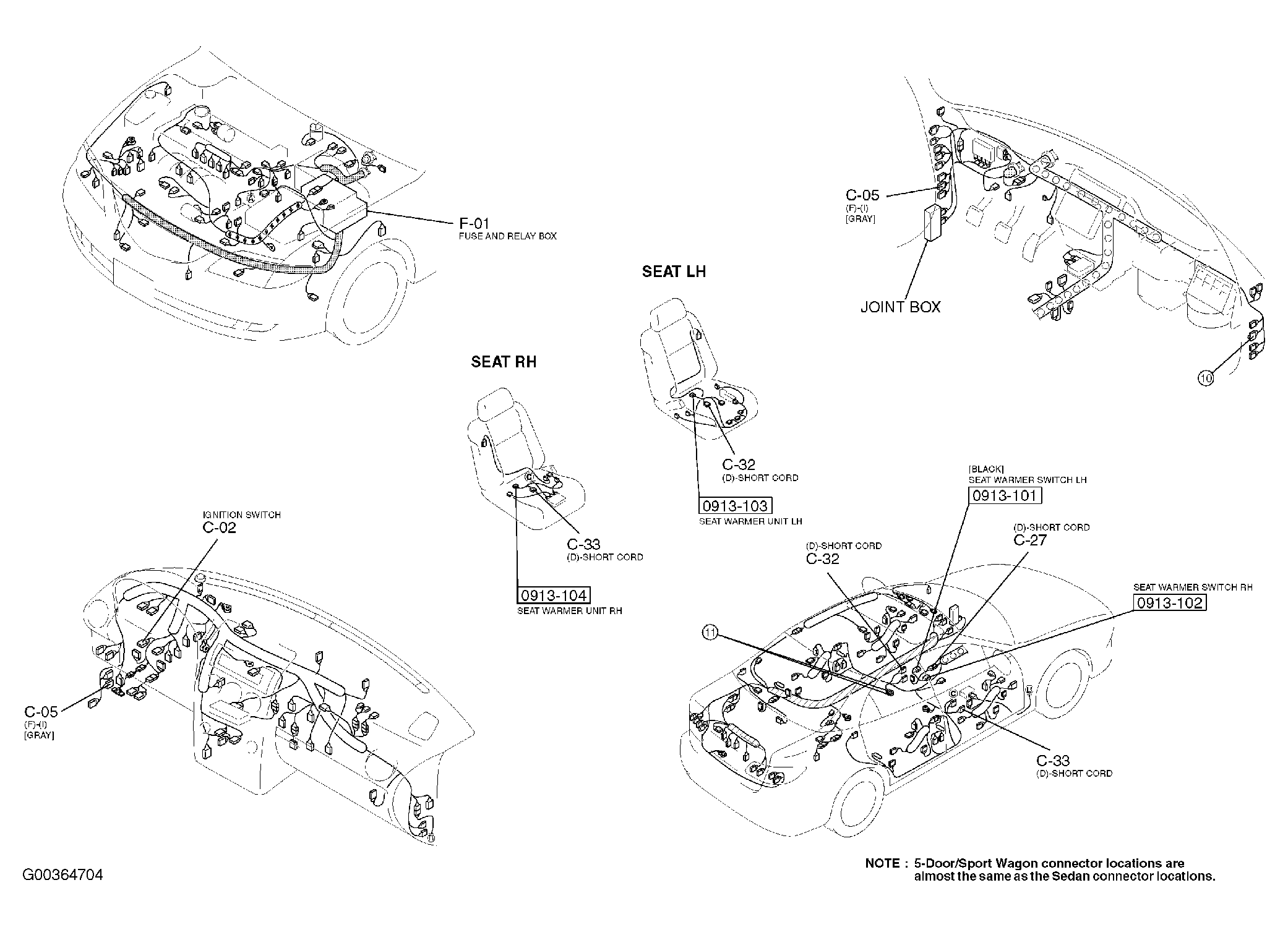

Fig 5: Seat Warmers

G00364704

Courtesy of MAZDA MOTORS CORP.

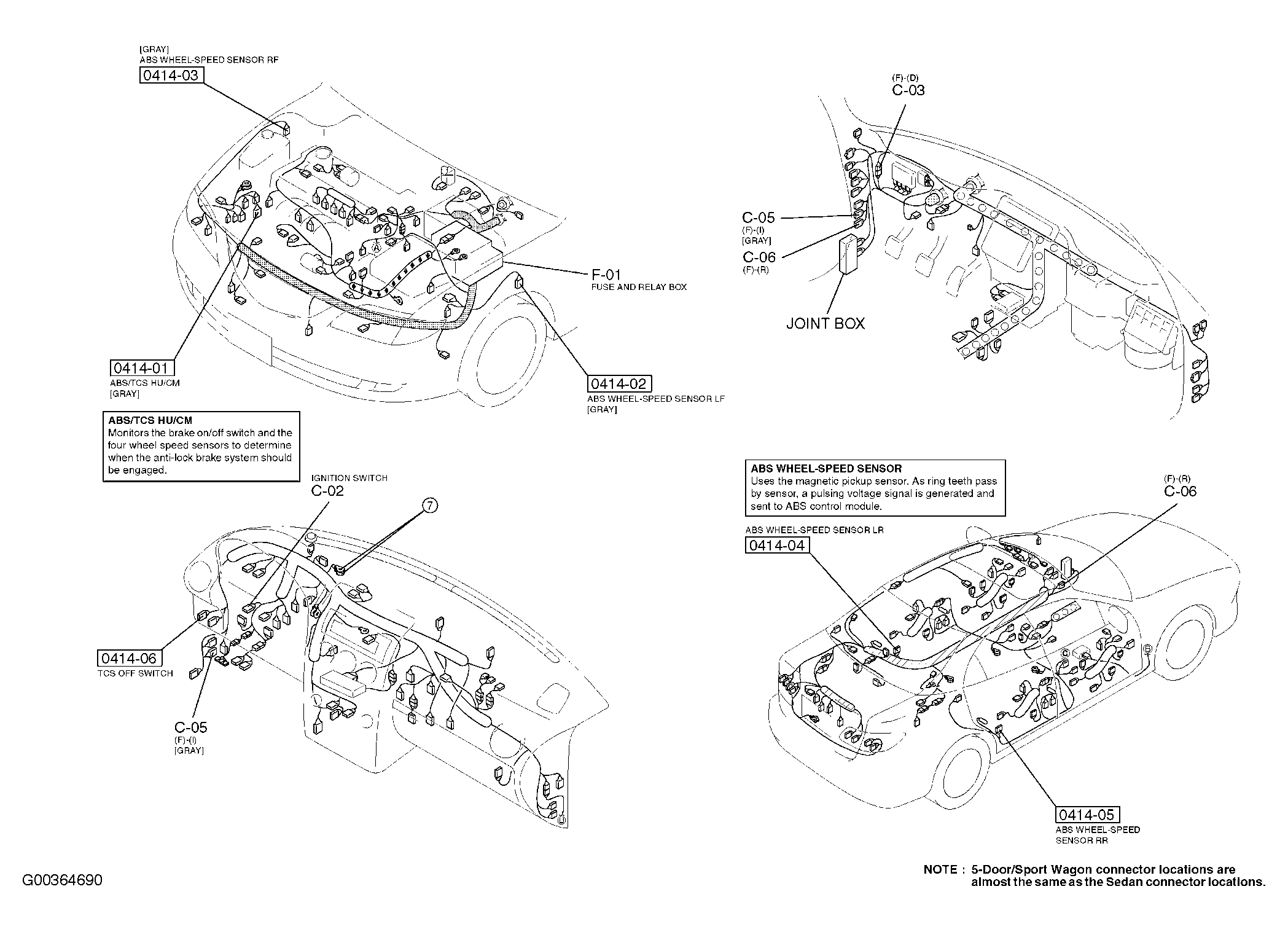

Fig 6: Anti-Lock Brake System

G00364690

Courtesy of MAZDA MOTORS CORP.

Fig 7: Anti-Lock Brake System

G00364691

Courtesy of MAZDA MOTORS CORP.

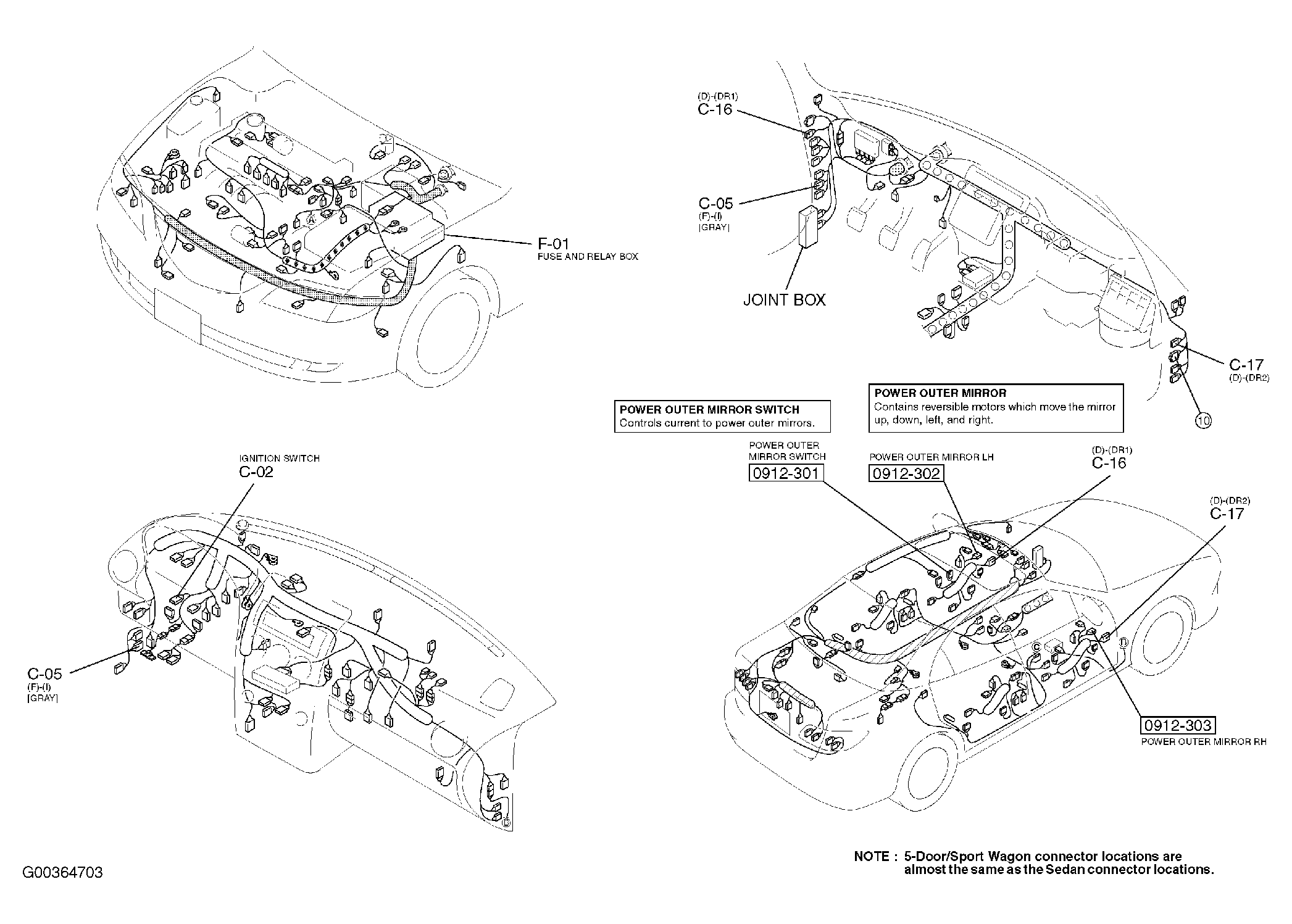

Fig 8: Mirrors

G00364703

Courtesy of MAZDA MOTORS CORP.

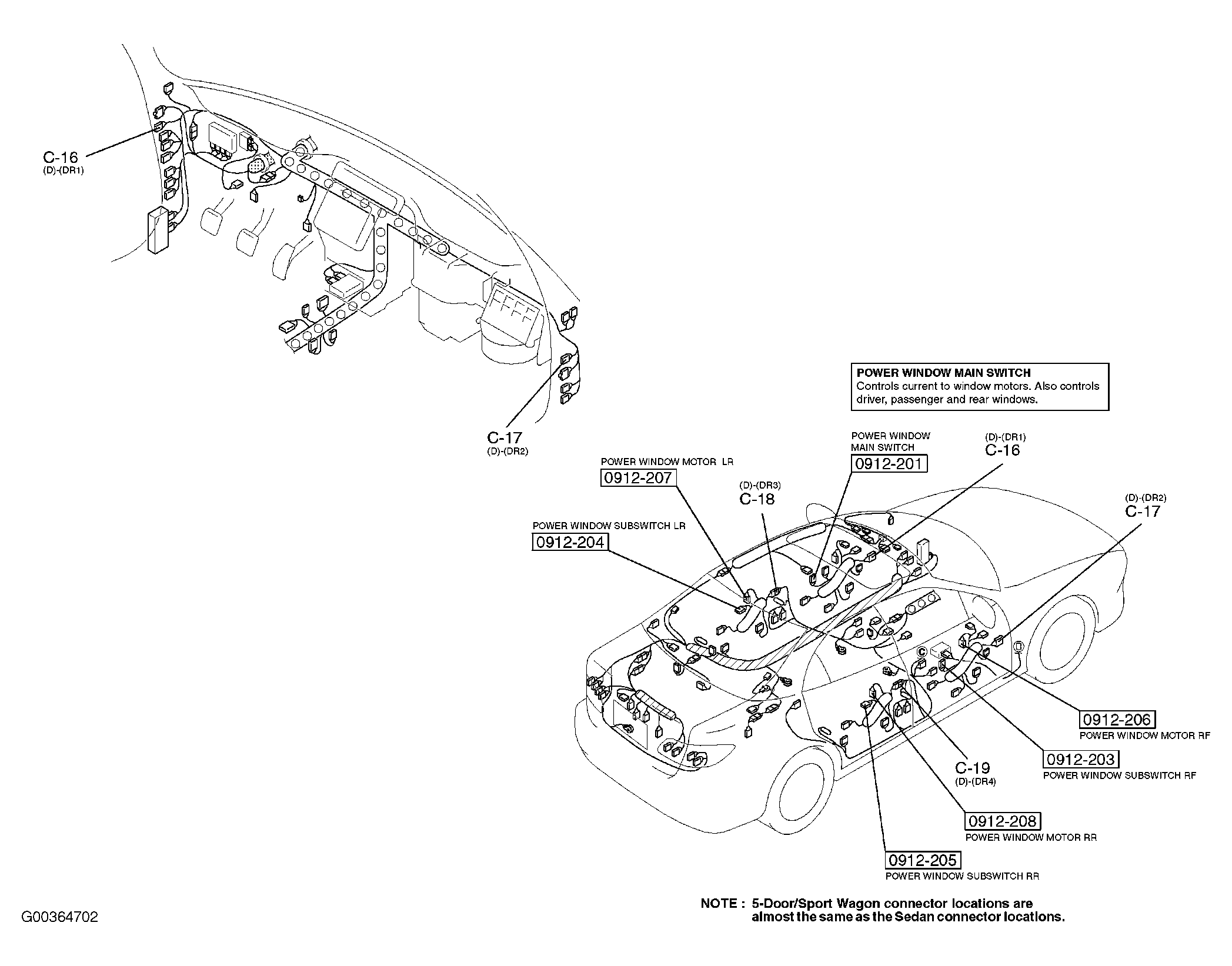

Fig 9: Power Window Motors

G00364702

Courtesy of MAZDA MOTORS CORP.

Fig 10: Power Door Lock System

G00364706

Courtesy of MAZDA MOTORS CORP.

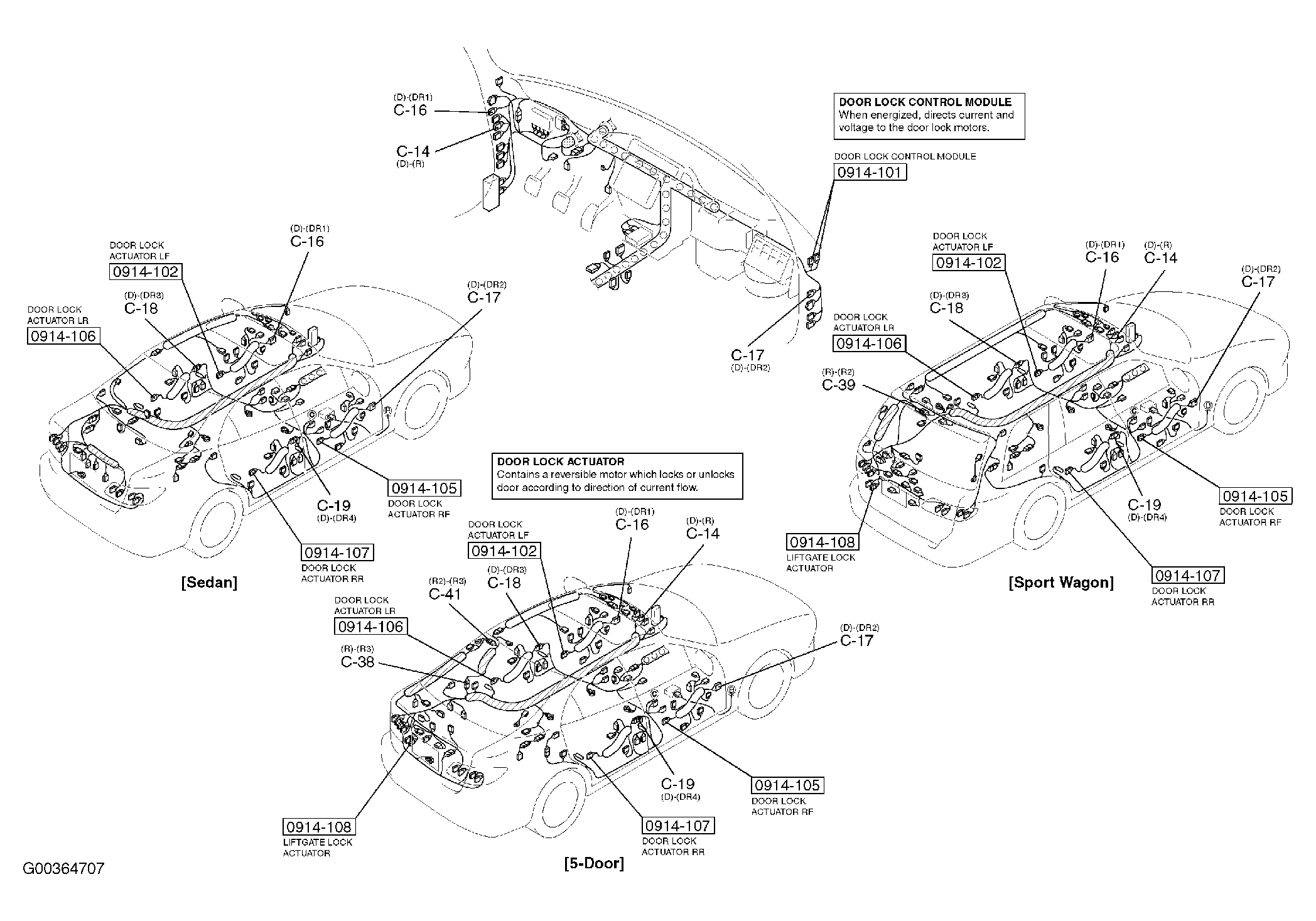

Fig 11: Power Door Lock System

G00364707

Courtesy of MAZDA MOTORS CORP.

Fig 12: Power Window System

G00364701

Courtesy of MAZDA MOTORS CORP.

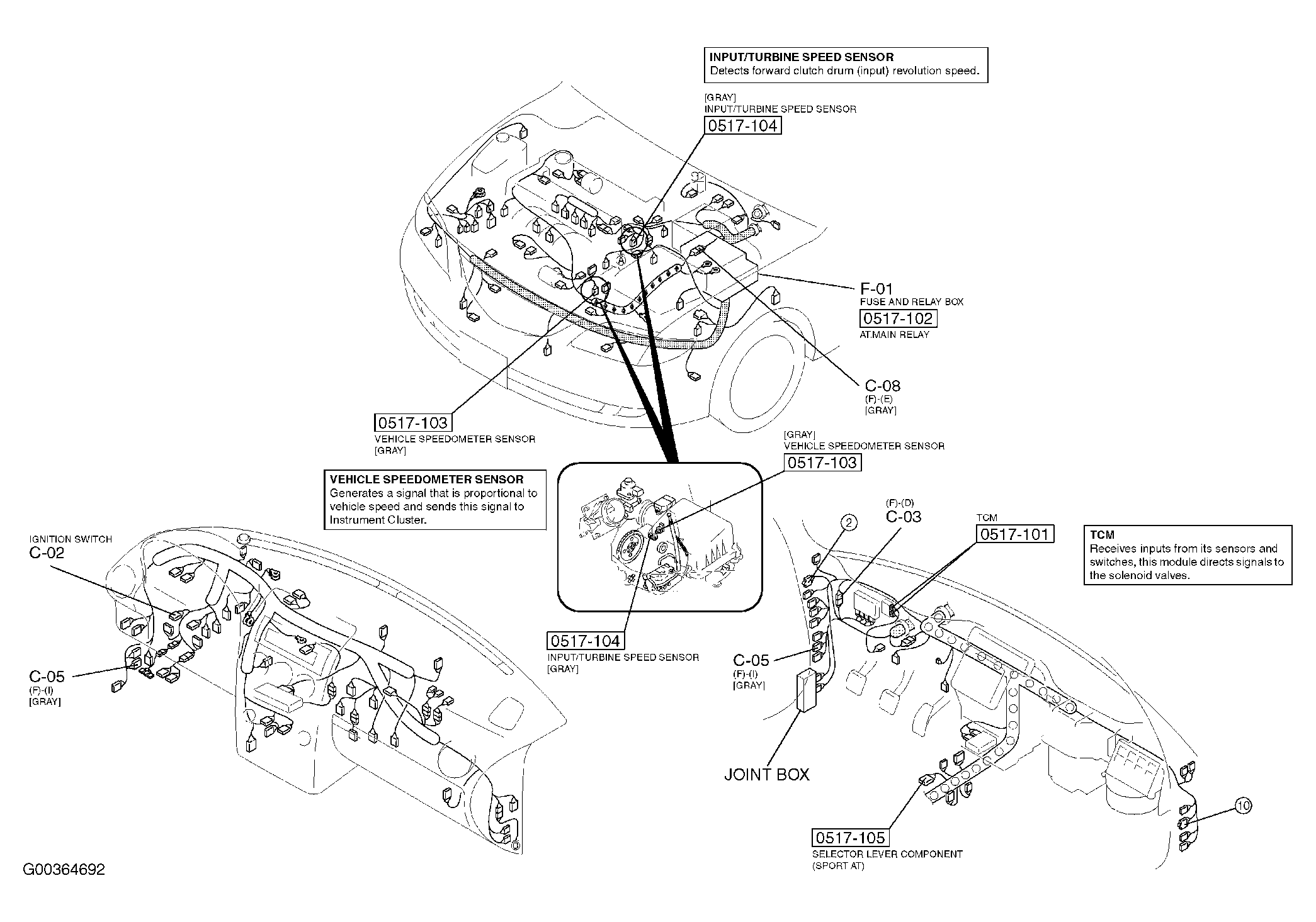

Fig 13: EC-AT Control (2.3L)

G00364692

Courtesy of MAZDA MOTORS CORP.

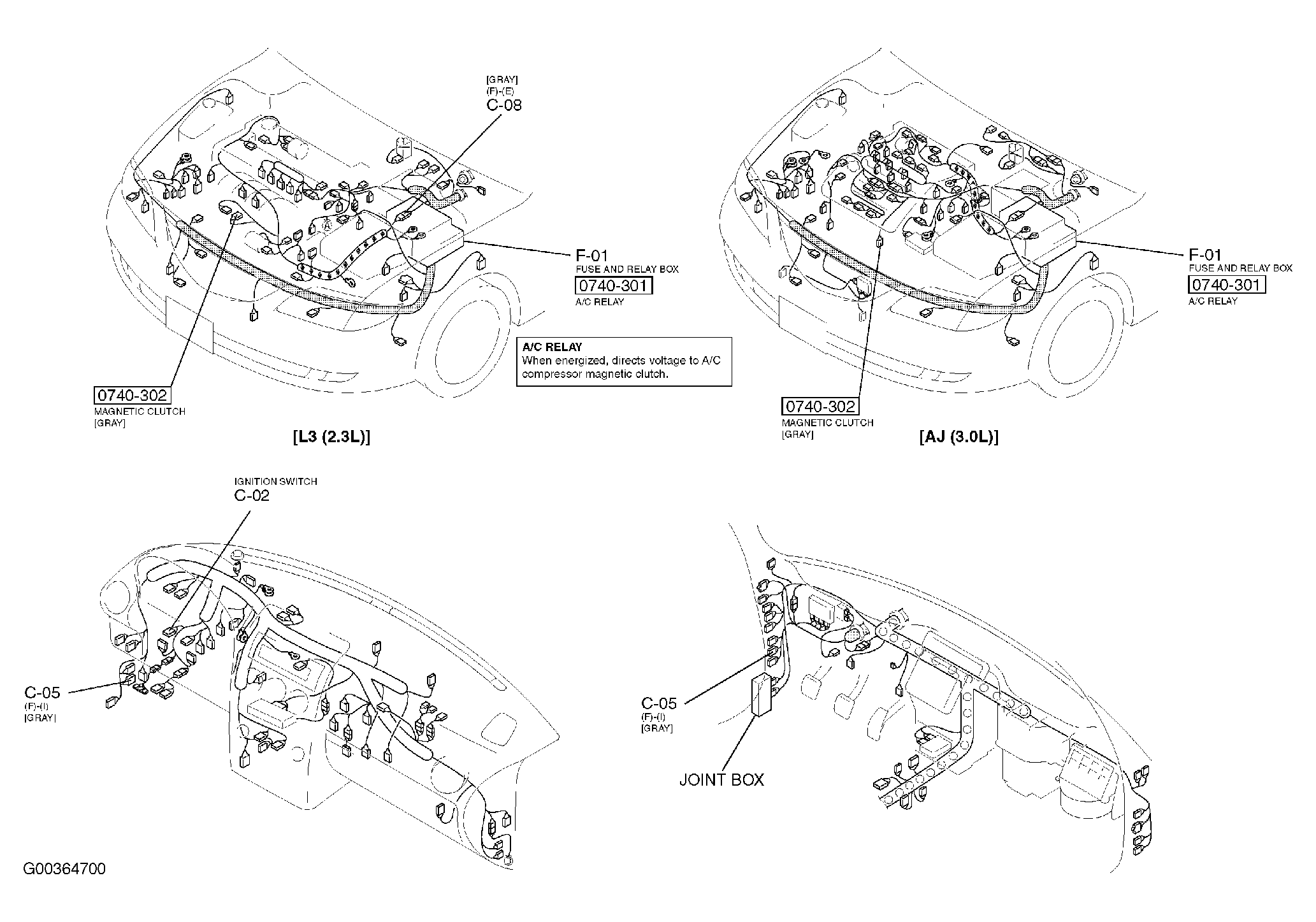

Fig 14: A/C Compressor Clutch

G00364700

Courtesy of MAZDA MOTORS CORP.

Fig 15: Auto HVAC

G00364697

Courtesy of MAZDA MOTORS CORP.

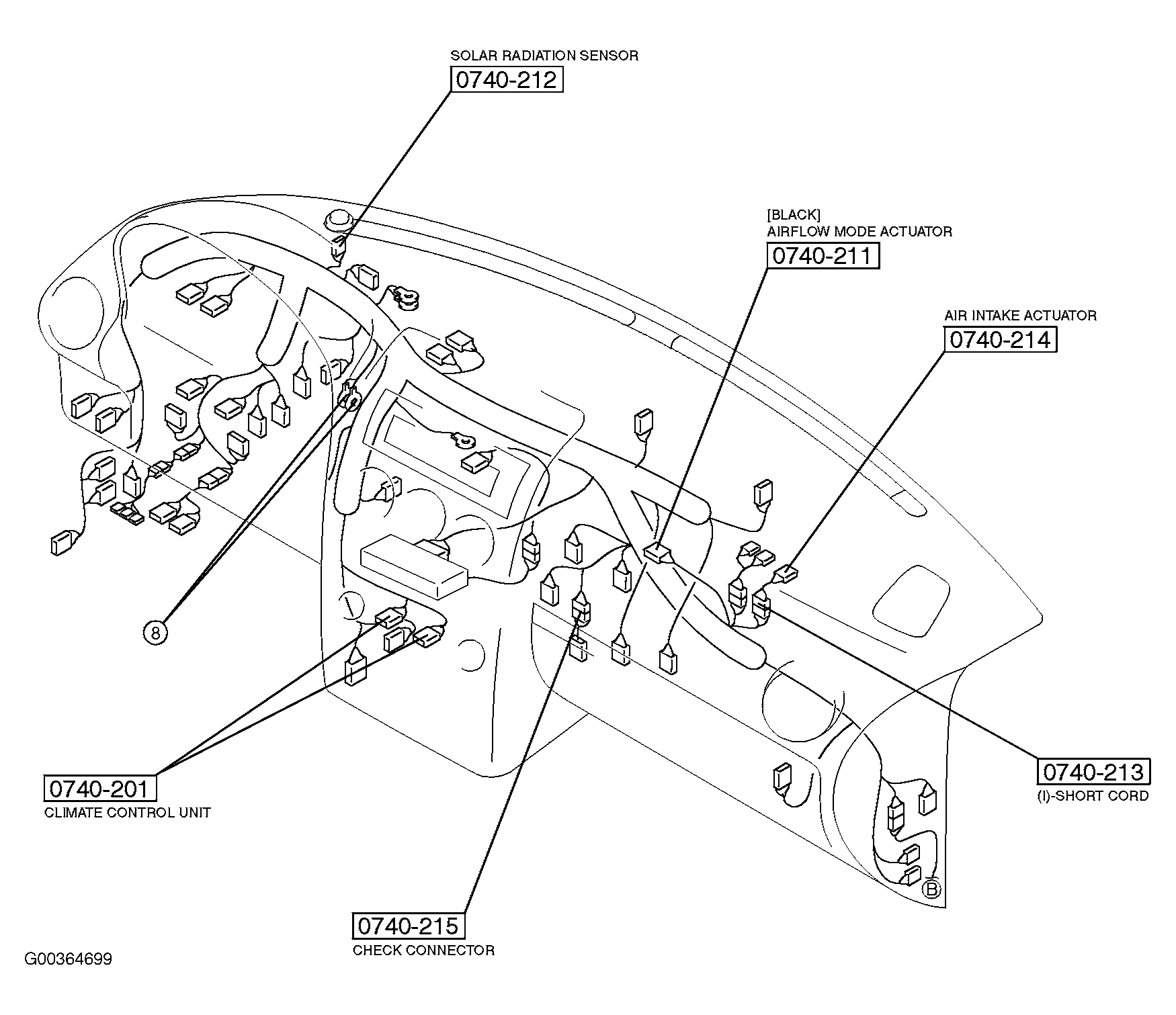

Fig 16: Auto HVAC

G00364699

Courtesy of MAZDA MOTORS CORP.

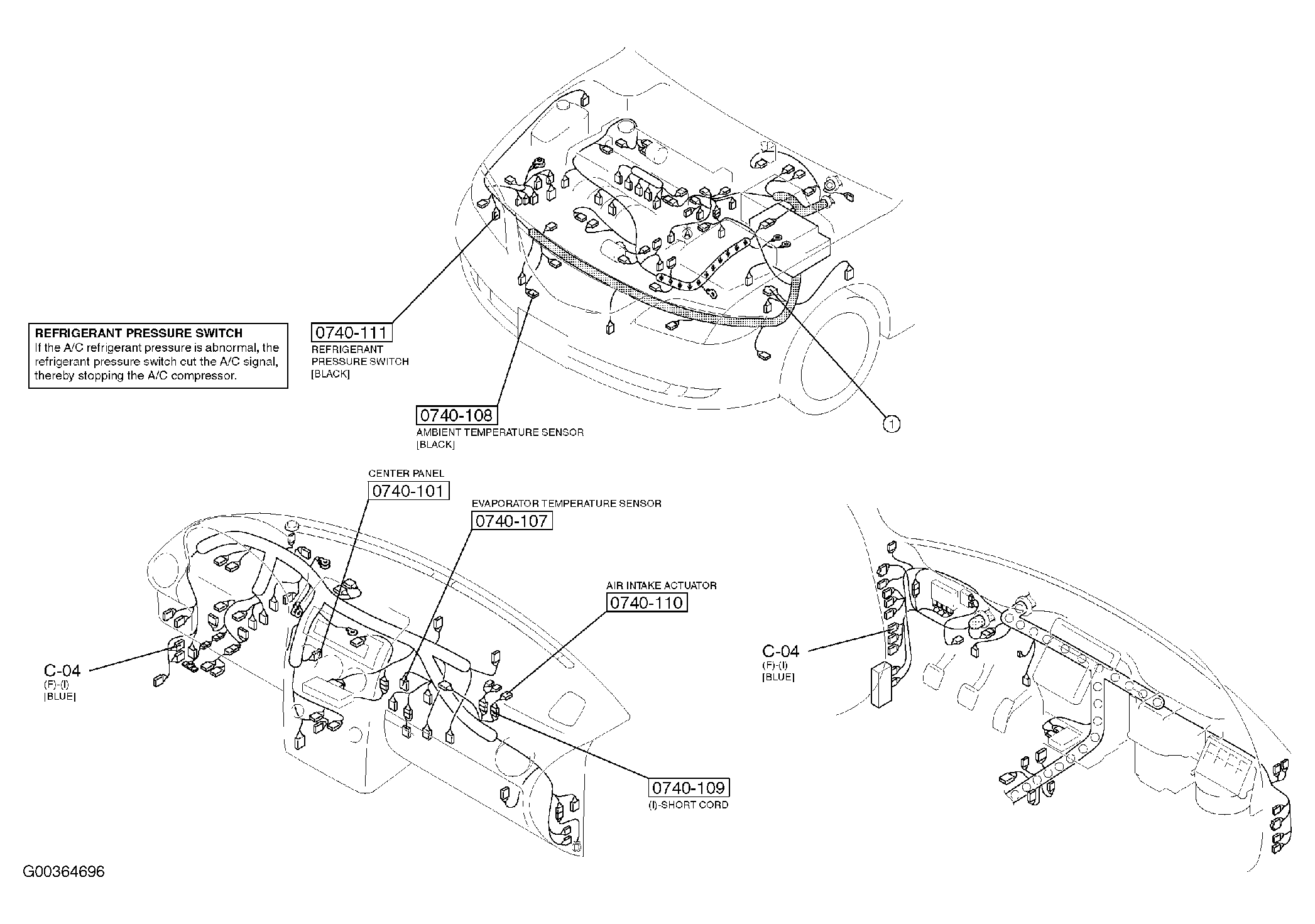

Fig 17: Manual HVAC

G00364696

Courtesy of MAZDA MOTORS CORP.

Fig 18: Instrument Cluster

G00364693

Courtesy of MAZDA MOTORS CORP.

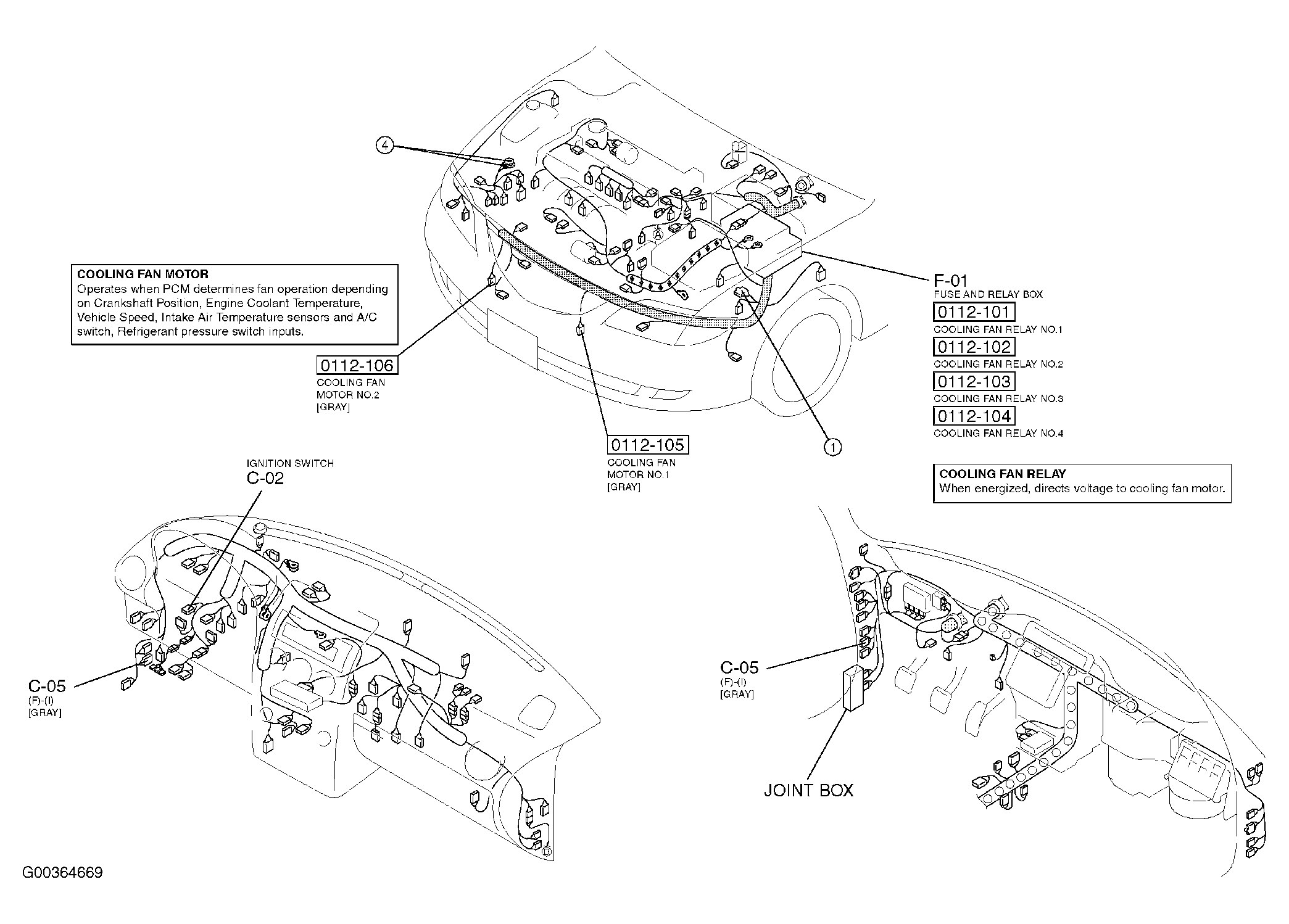

Fig 19: Fan Condenser

G00364669

Courtesy of MAZDA MOTORS CORP.

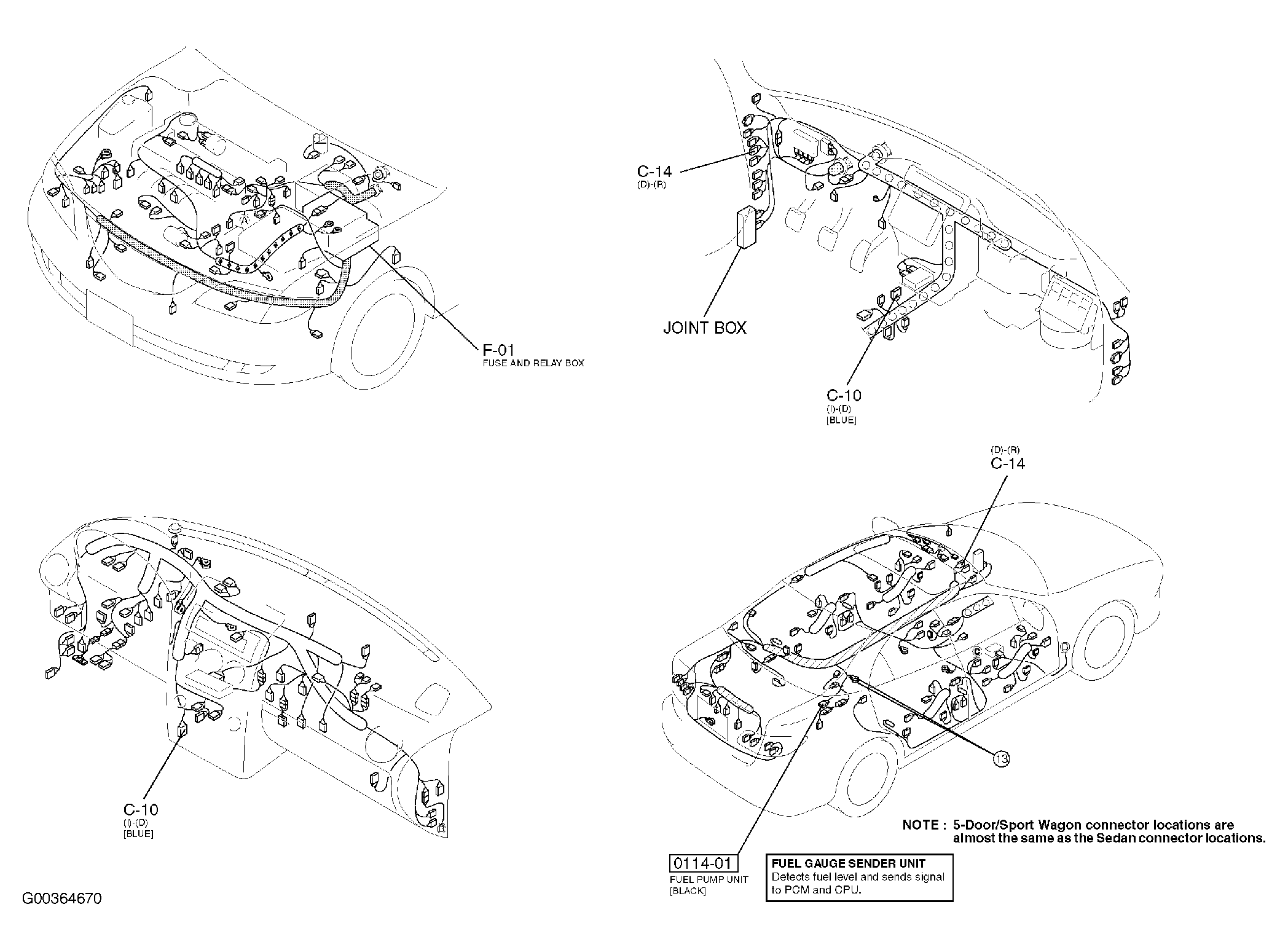

Fig 20: Fuel Control

G00364670

Courtesy of MAZDA MOTORS CORP.

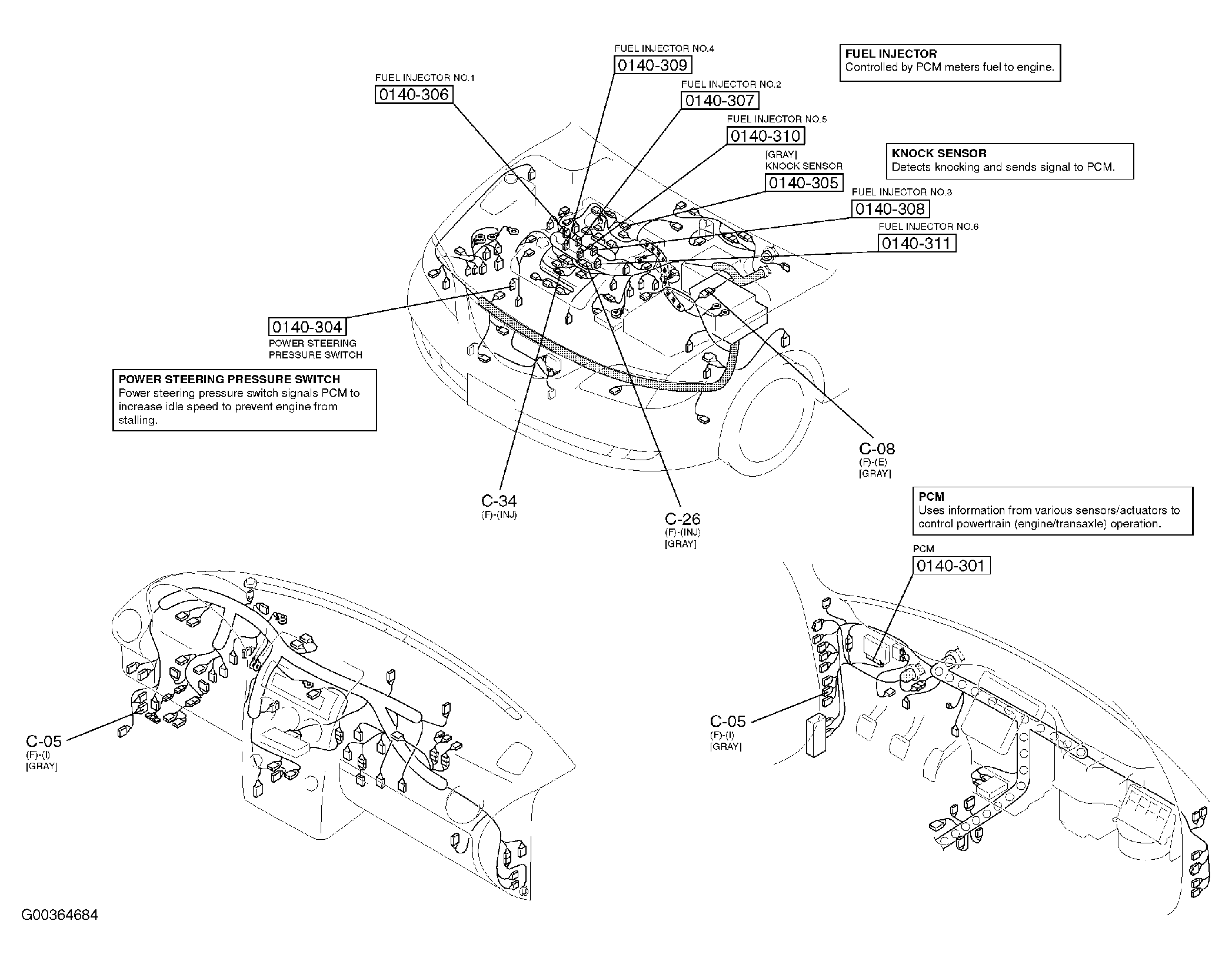

Fig 21: Engine Controls (3.0L)

G00364684

Courtesy of MAZDA MOTORS CORP.

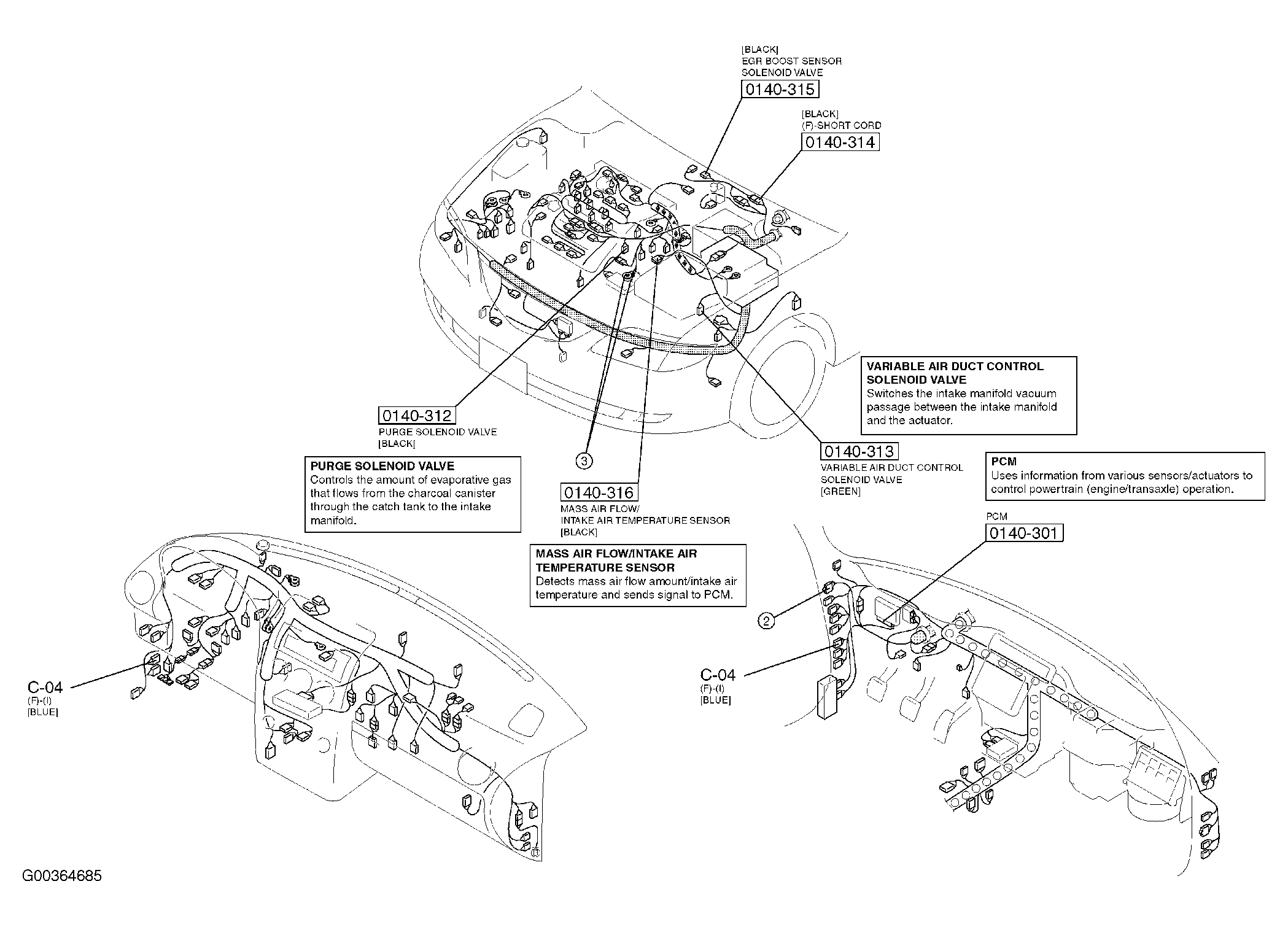

Fig 22: Engine Controls (3.0L)

G00364685

Courtesy of MAZDA MOTORS CORP.

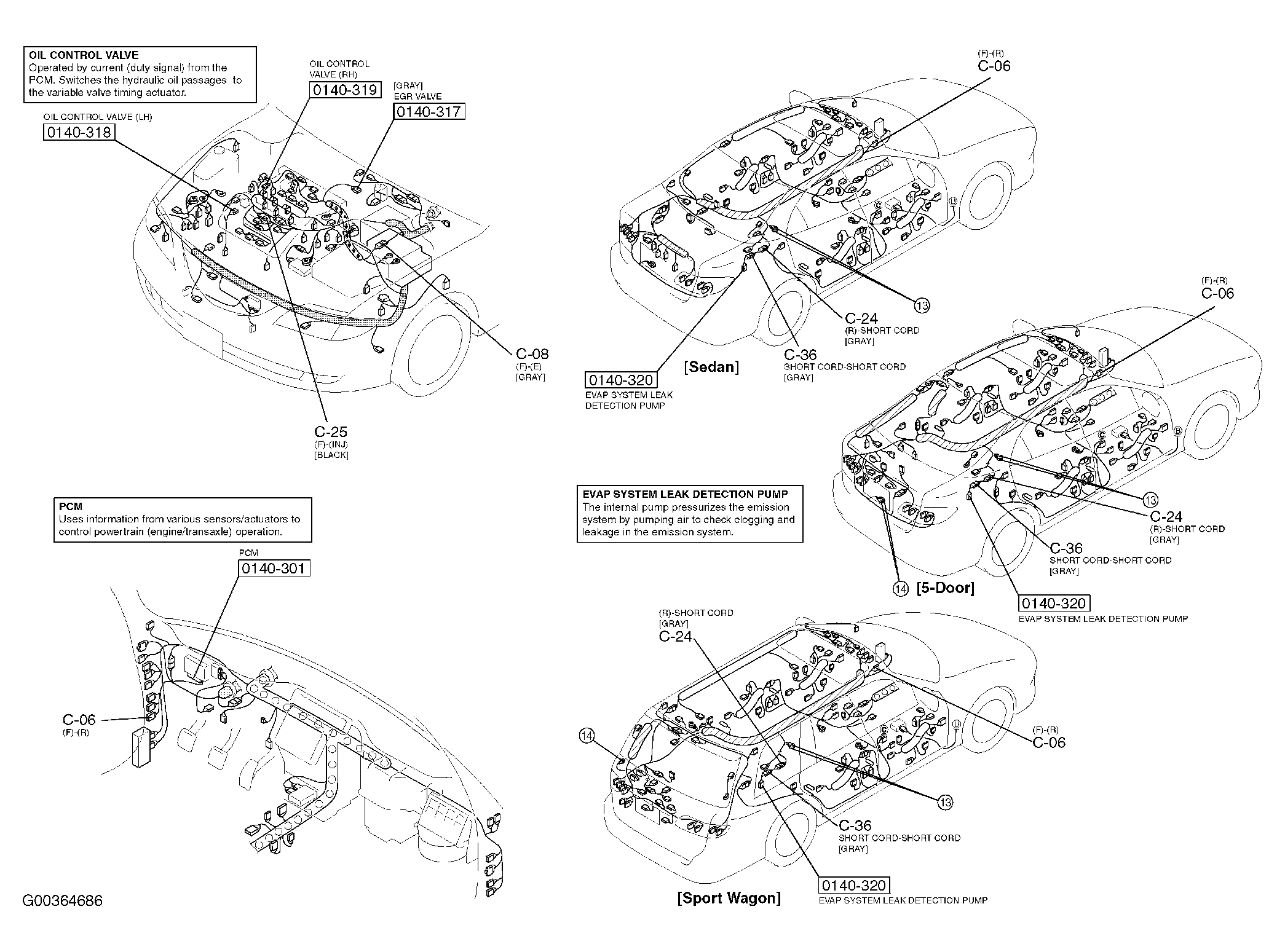

Fig 23: Engine Controls (3.0L)

G00364686

Courtesy of MAZDA MOTORS CORP.

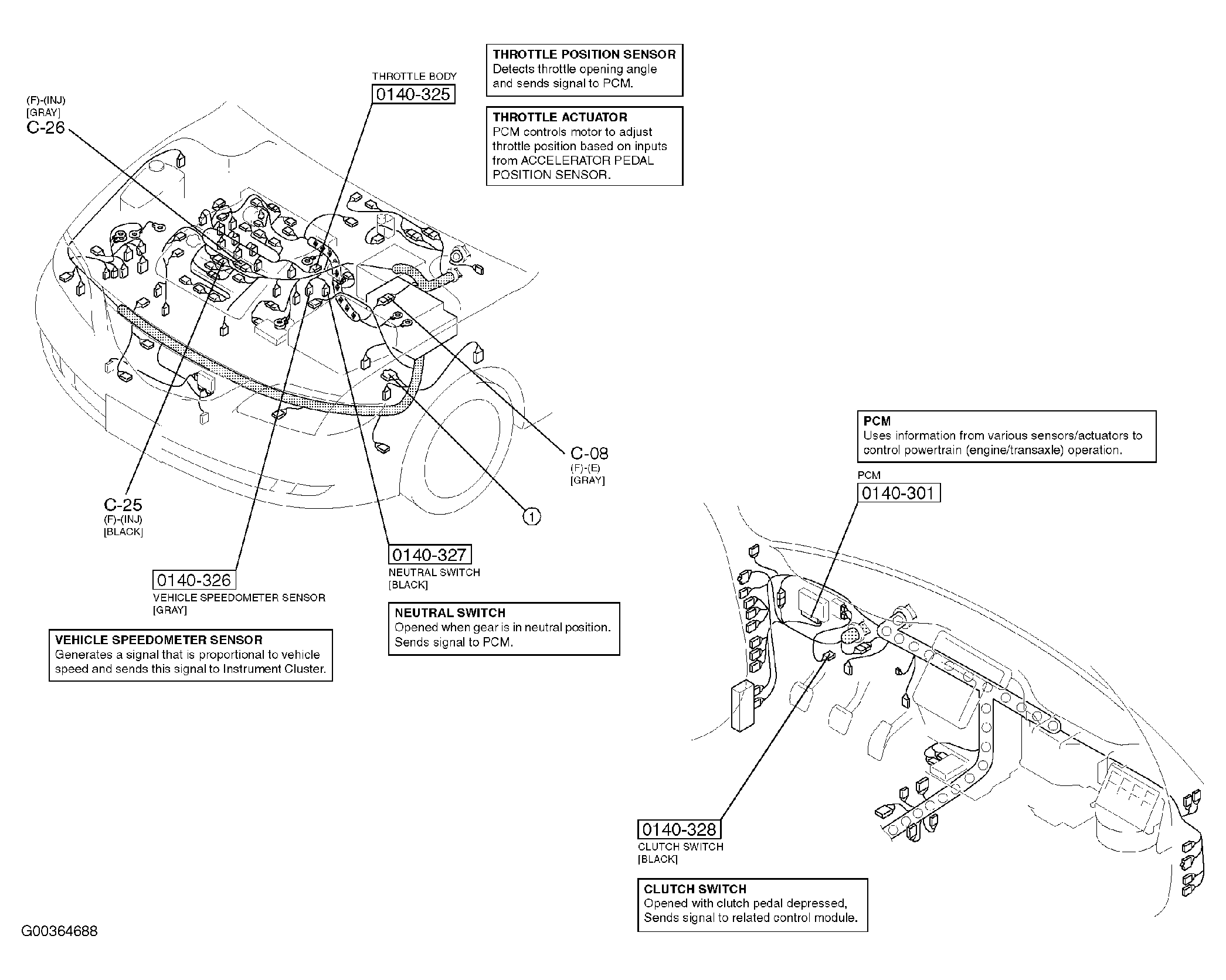

Fig 24: Engine Controls (3.0L)

G00364688

Courtesy of MAZDA MOTORS CORP.

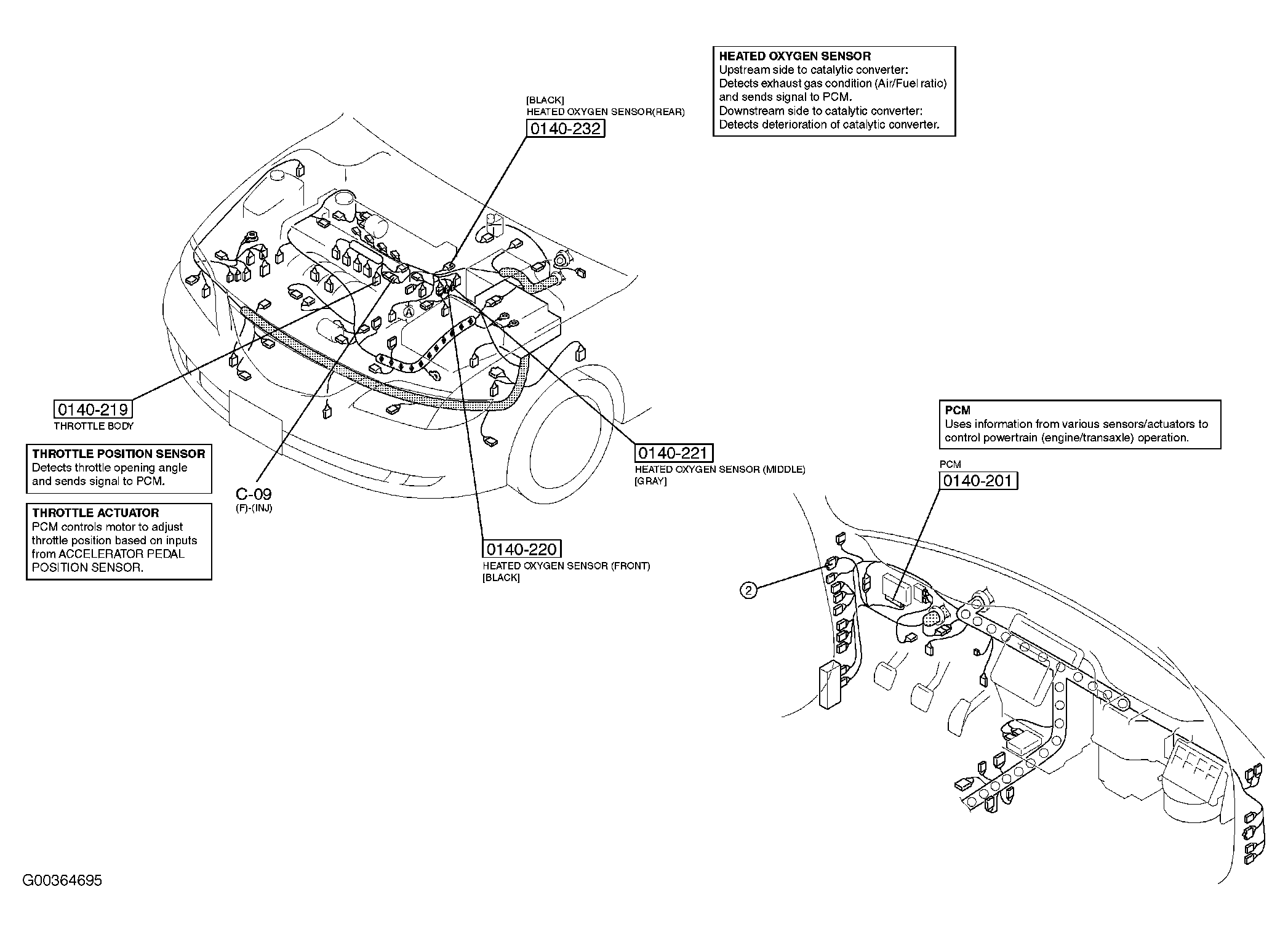

Fig 25: Engine Controls (3.0L)

G00364695

Courtesy of MAZDA MOTORS CORP.

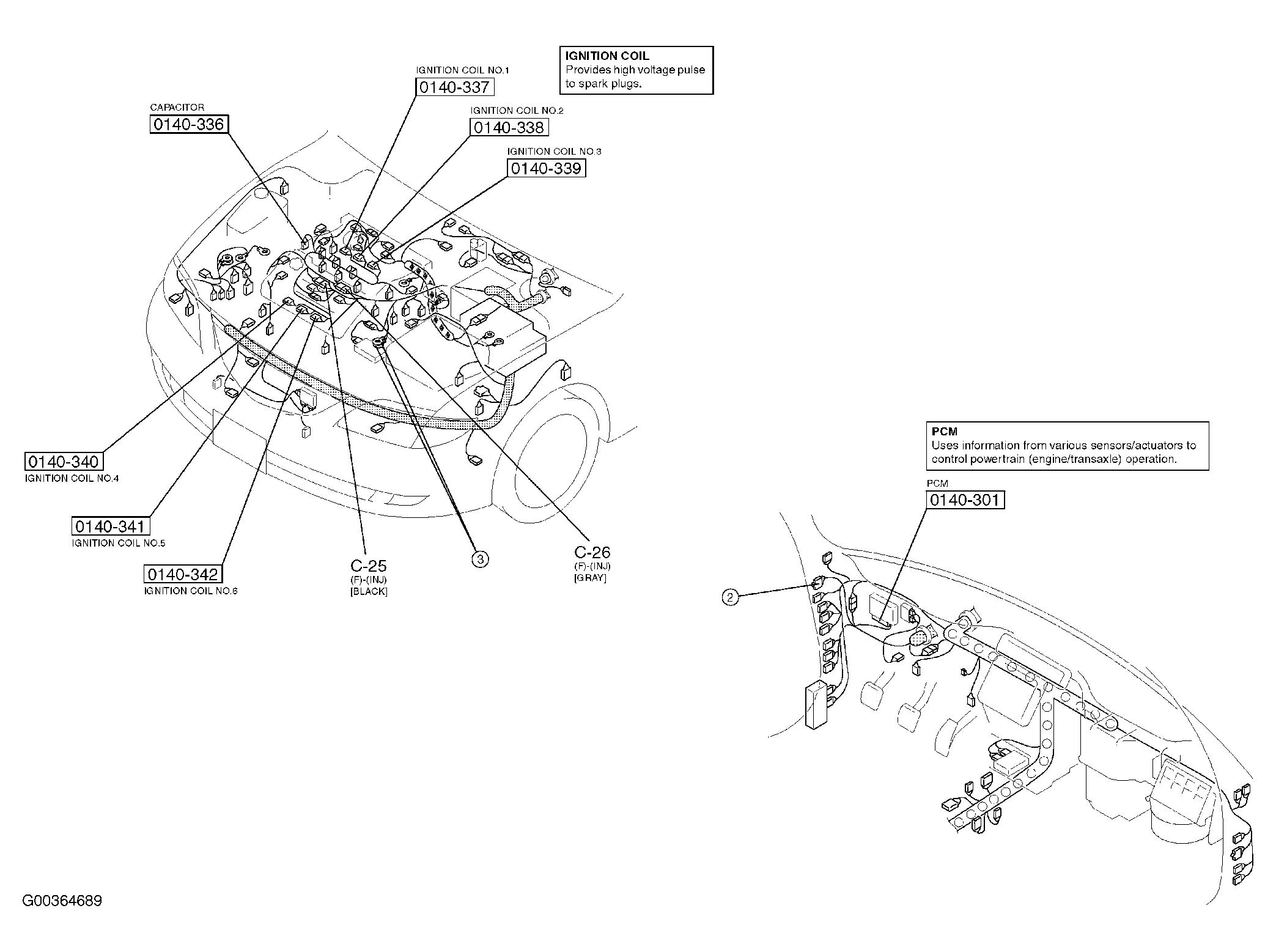

Fig 26: Engine Controls (3.0L)

G00364689

Courtesy of MAZDA MOTORS CORP.

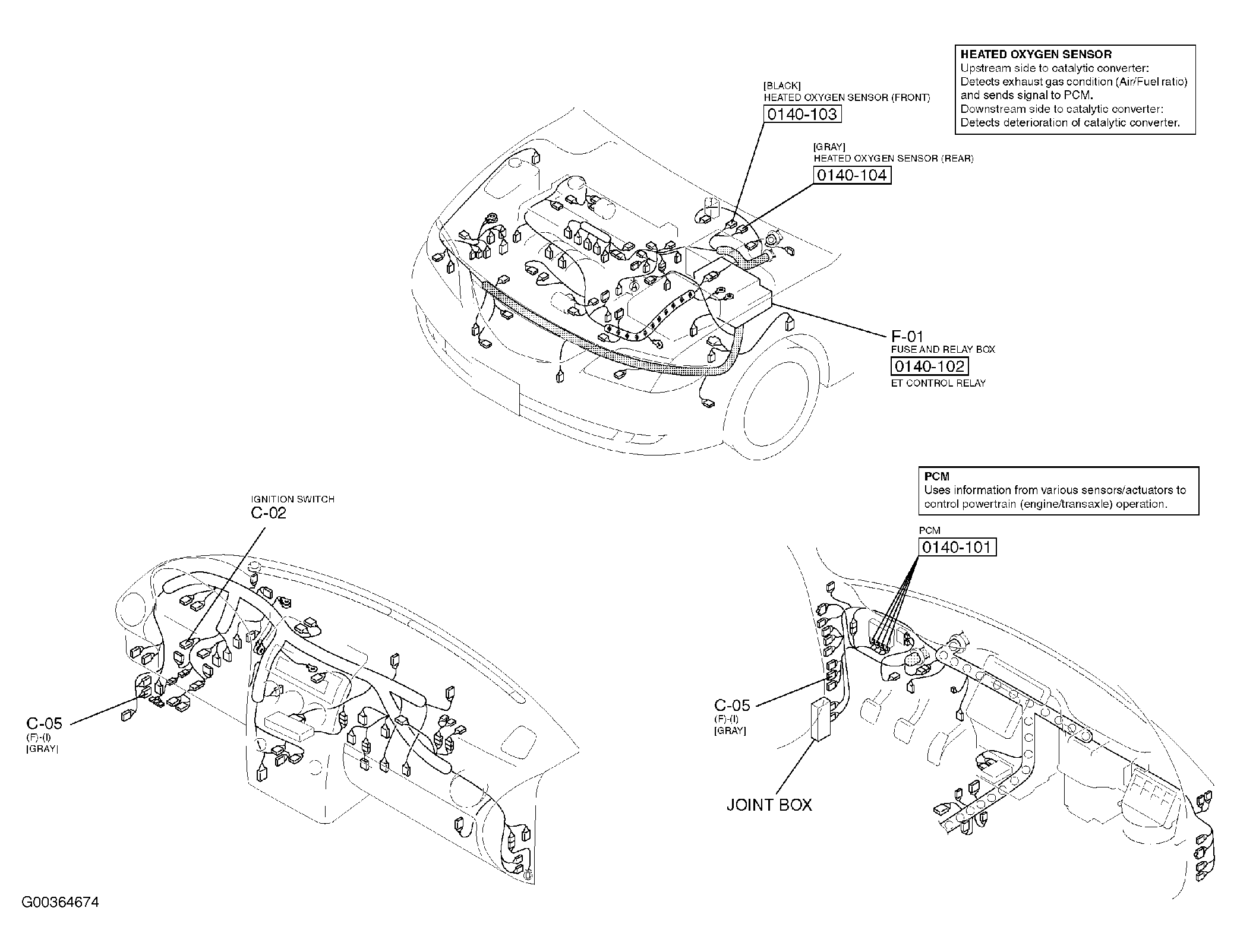

Fig 27: Engine Controls (2.3L)

G00364674

Courtesy of MAZDA MOTORS CORP.

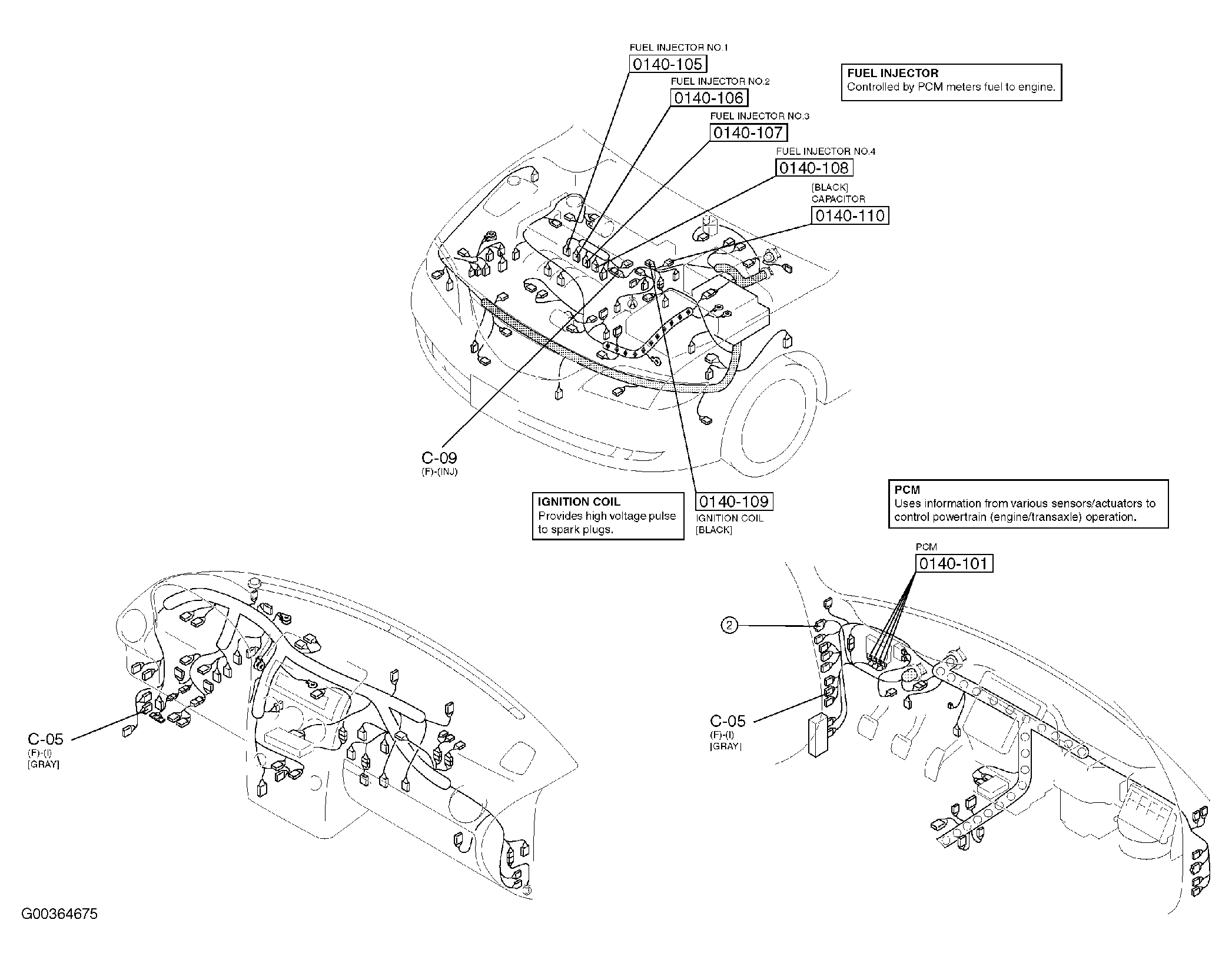

Fig 28: Engine Controls (2.3L)

G00364675

Courtesy of MAZDA MOTORS CORP.

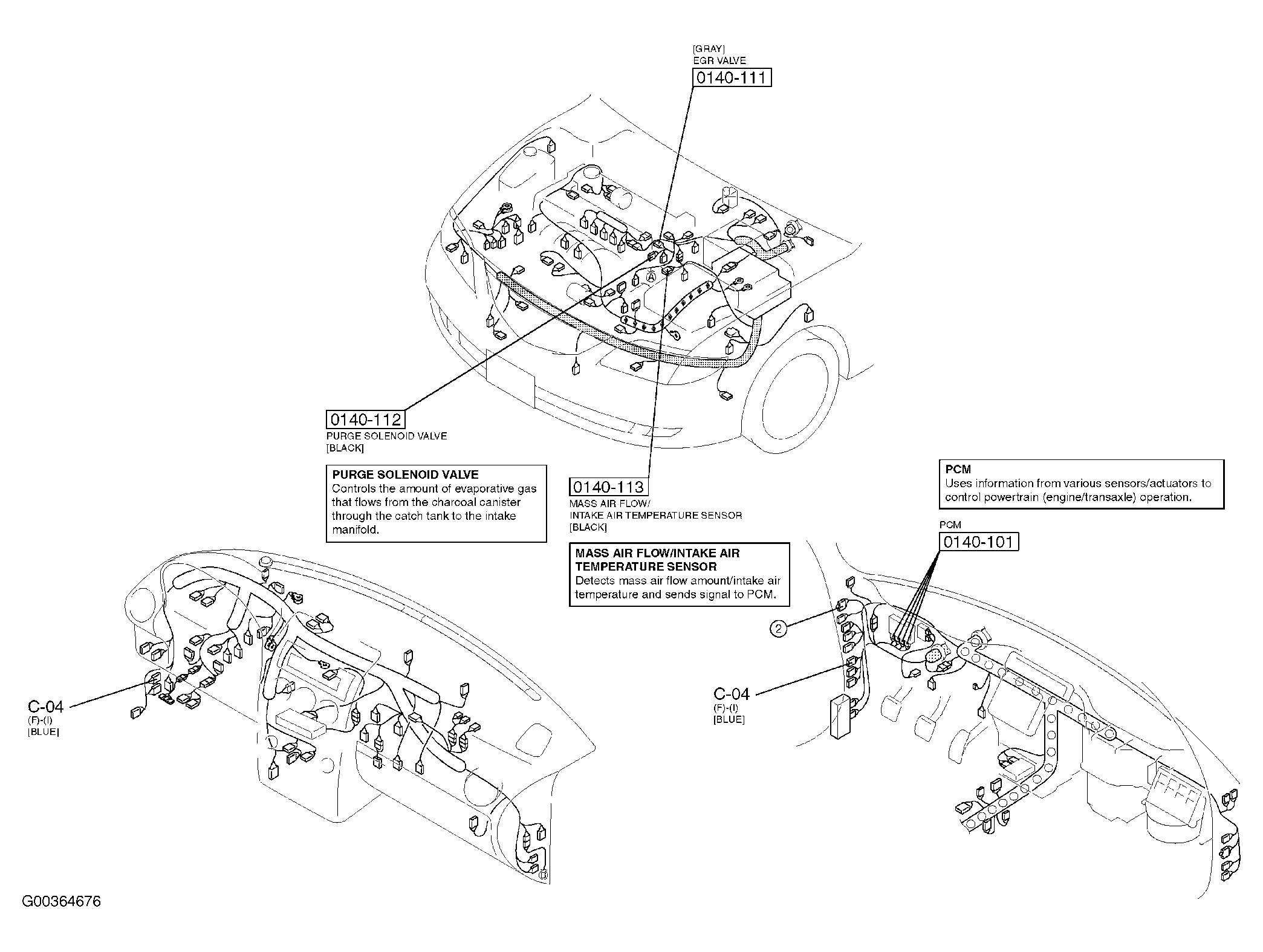

Fig 29: Engine Controls (2.3L)

G00364676

Courtesy of MAZDA MOTORS CORP.

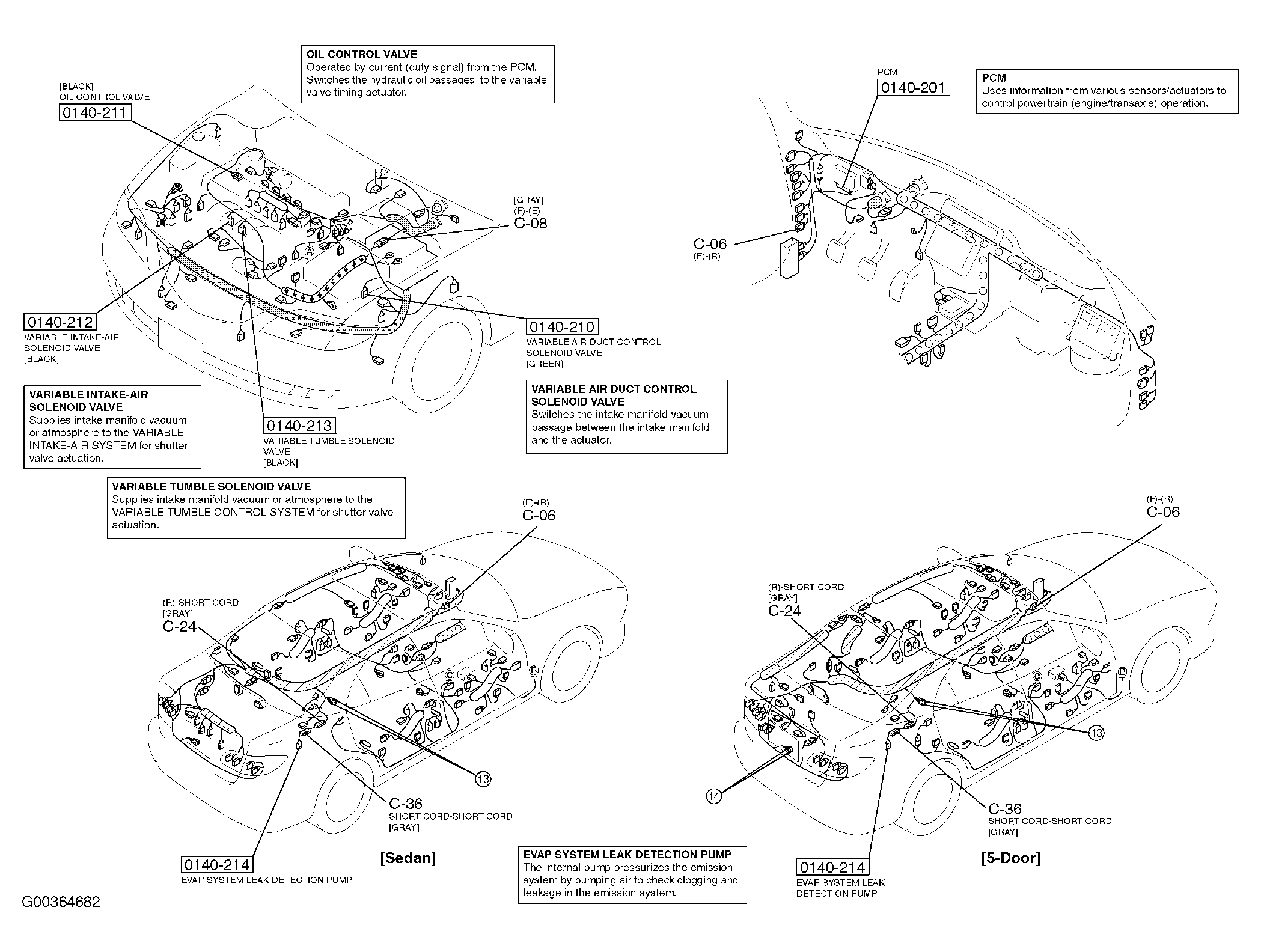

Fig 30: Engine Controls (2.3L)

G00364682

Courtesy of MAZDA MOTORS CORP.

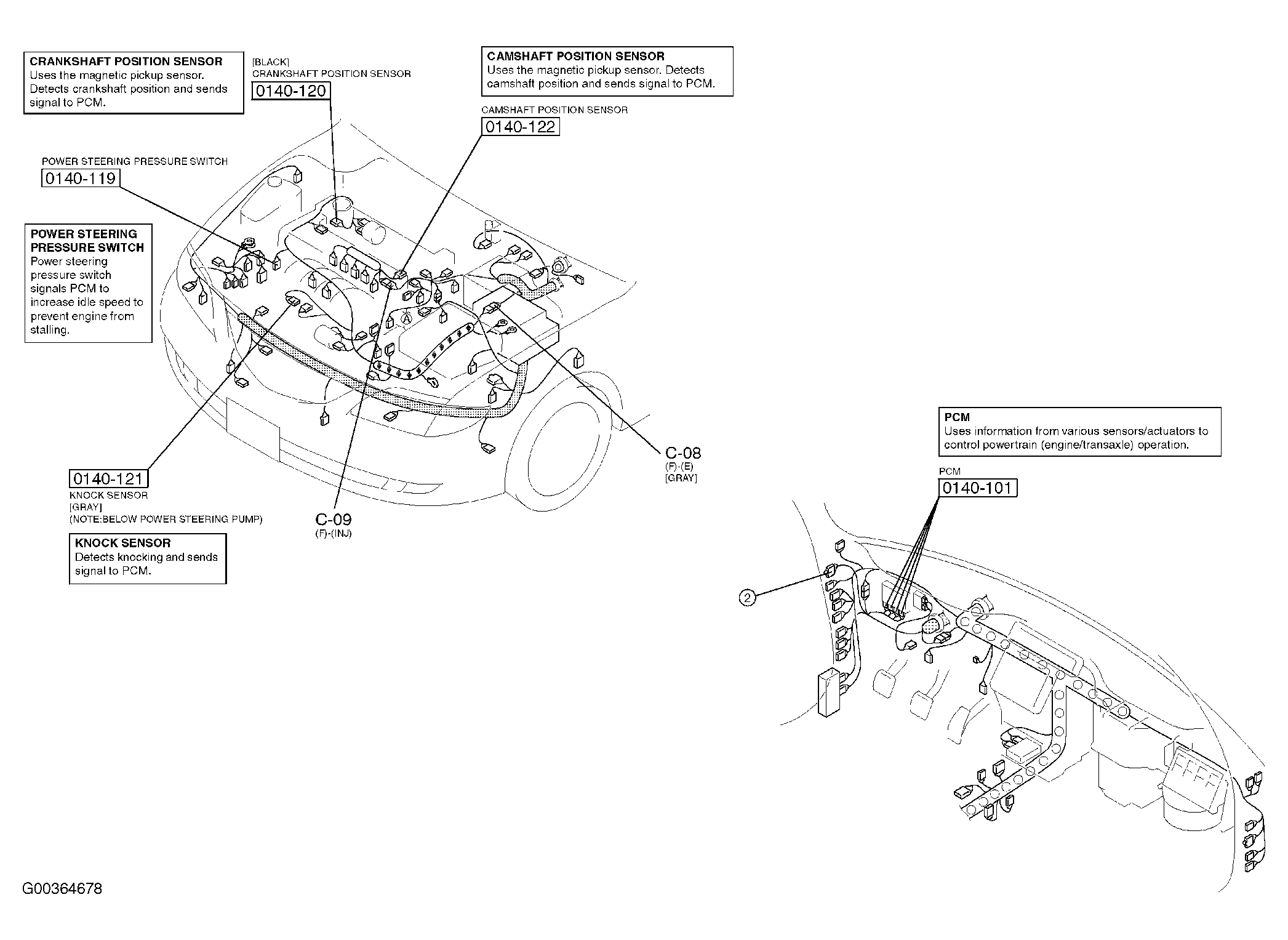

Fig 31: Engine Controls (2.3L)

G00364678

Courtesy of MAZDA MOTORS CORP.

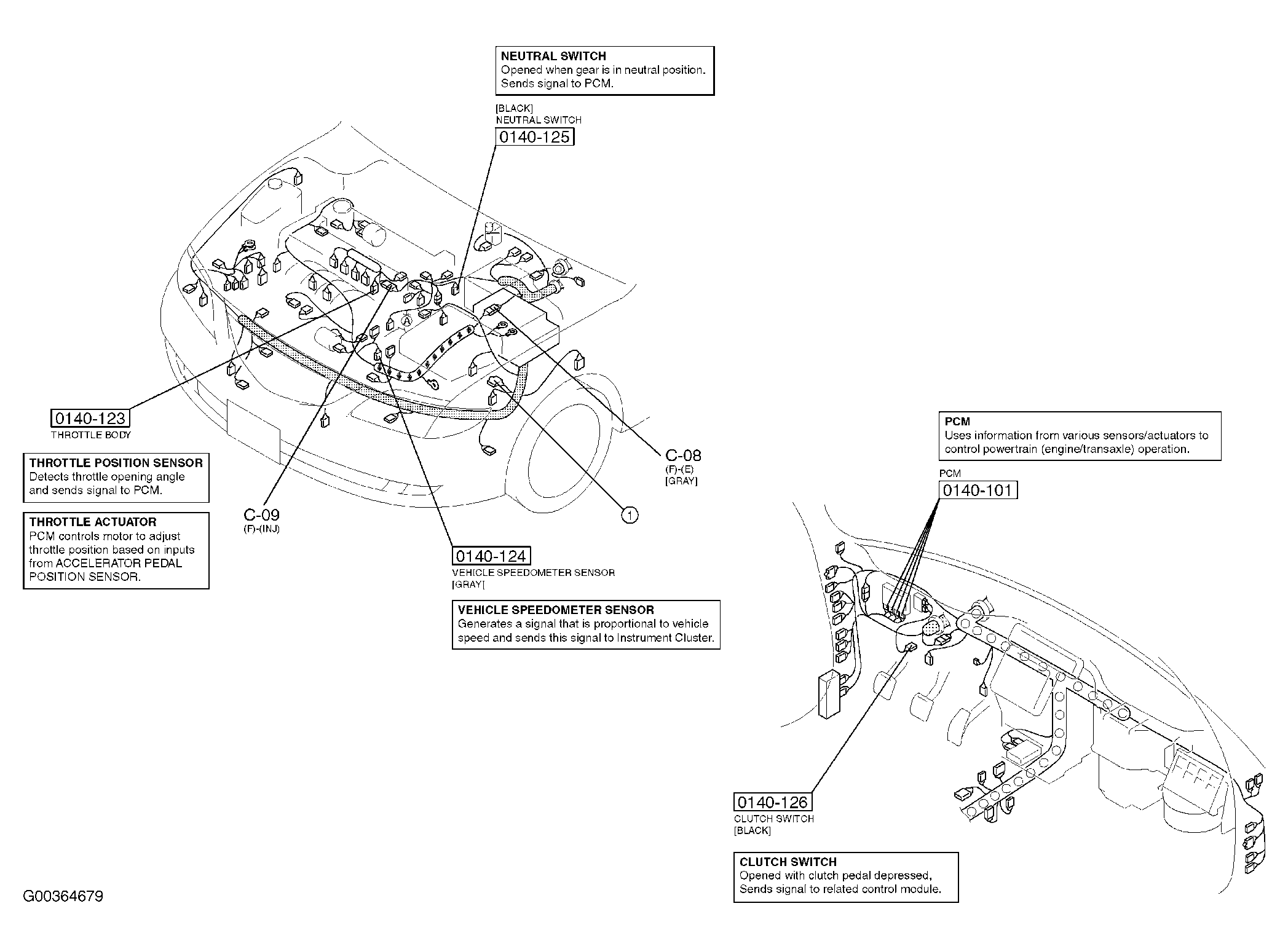

Fig 32: Engine Controls (2.3L)

G00364679

Courtesy of MAZDA MOTORS CORP.

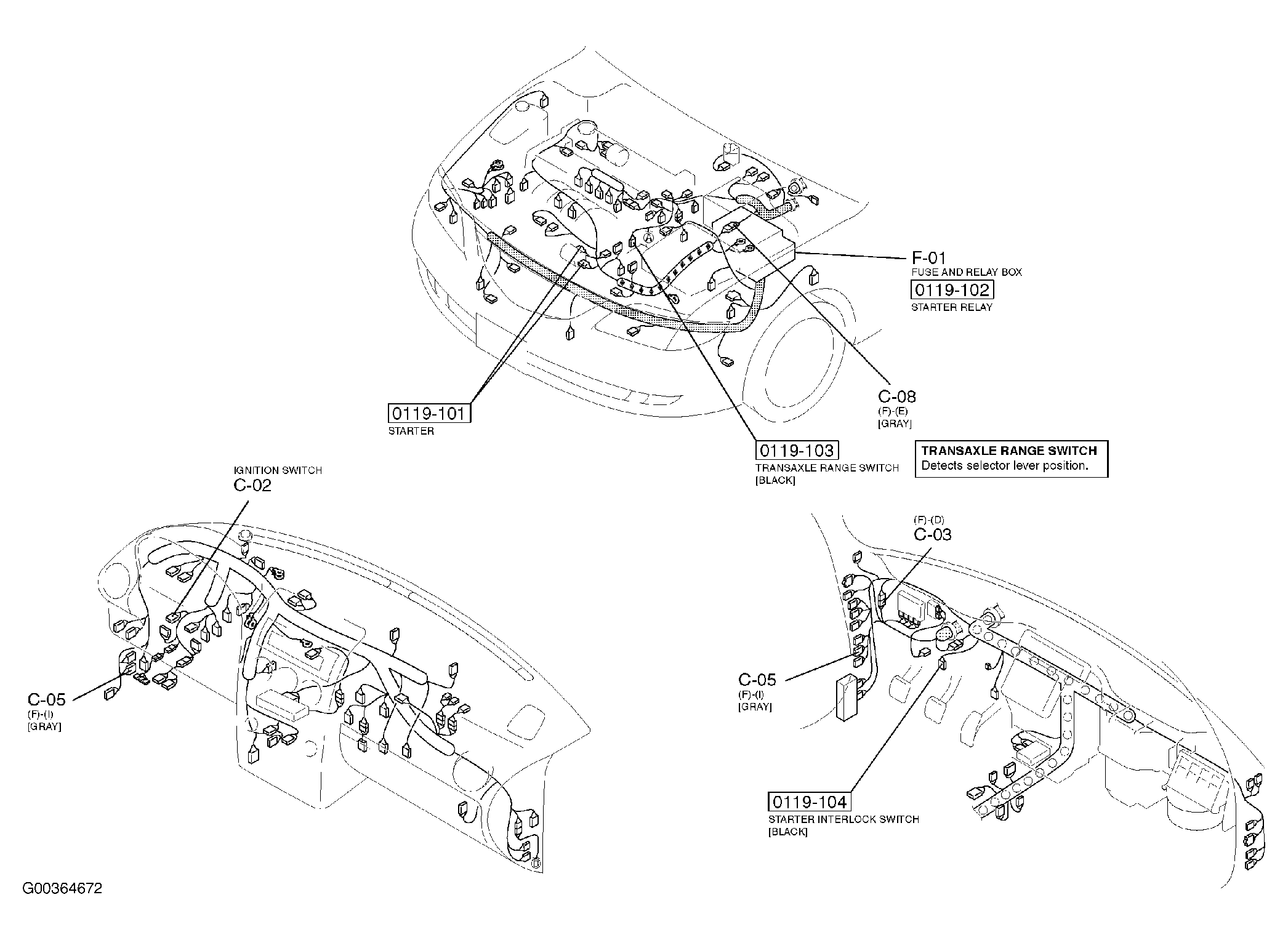

Fig 33: Starting System

G00364672

Courtesy of MAZDA MOTORS CORP.

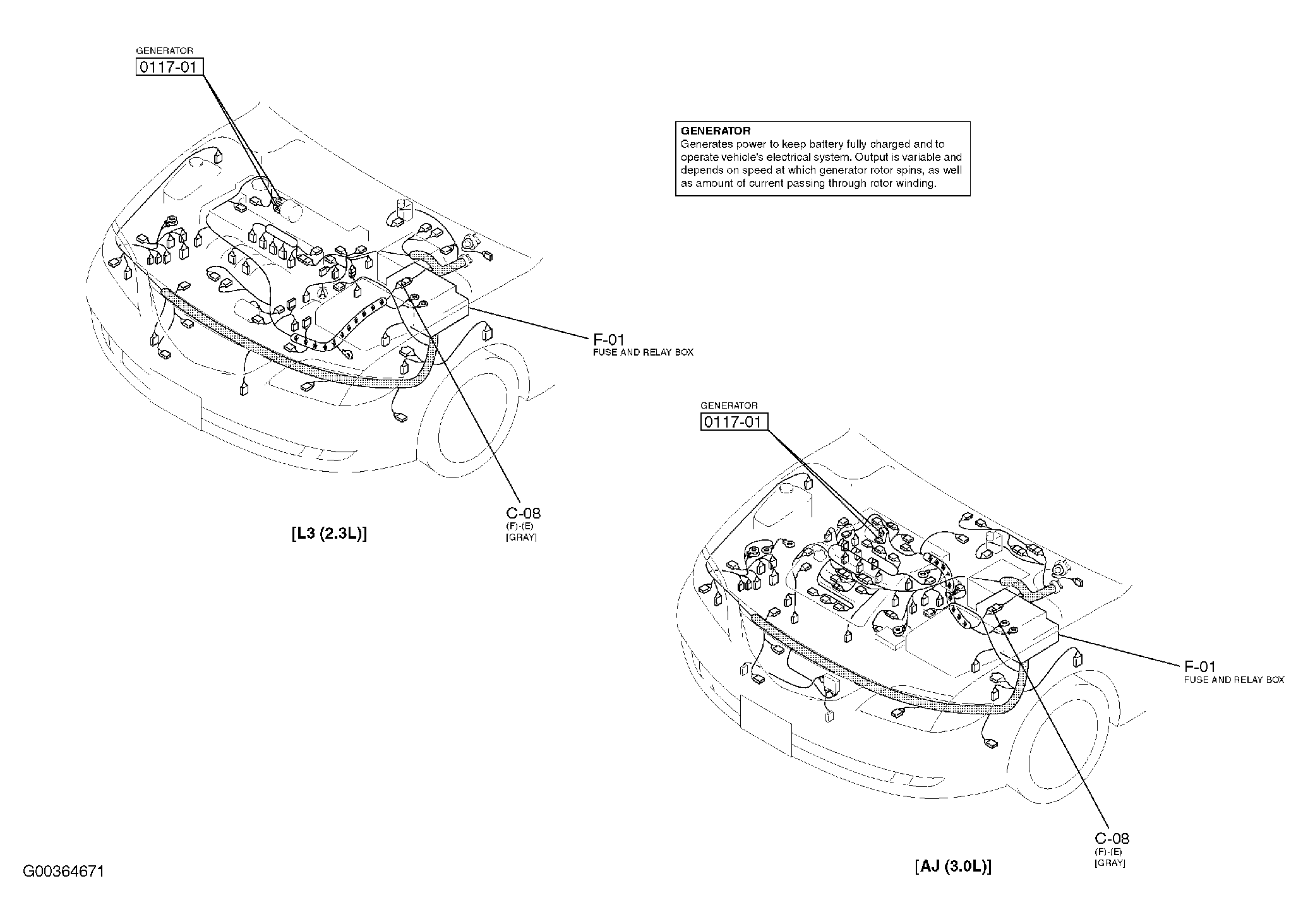

Fig 34: Charging System

G00364671

Courtesy of MAZDA MOTORS CORP.

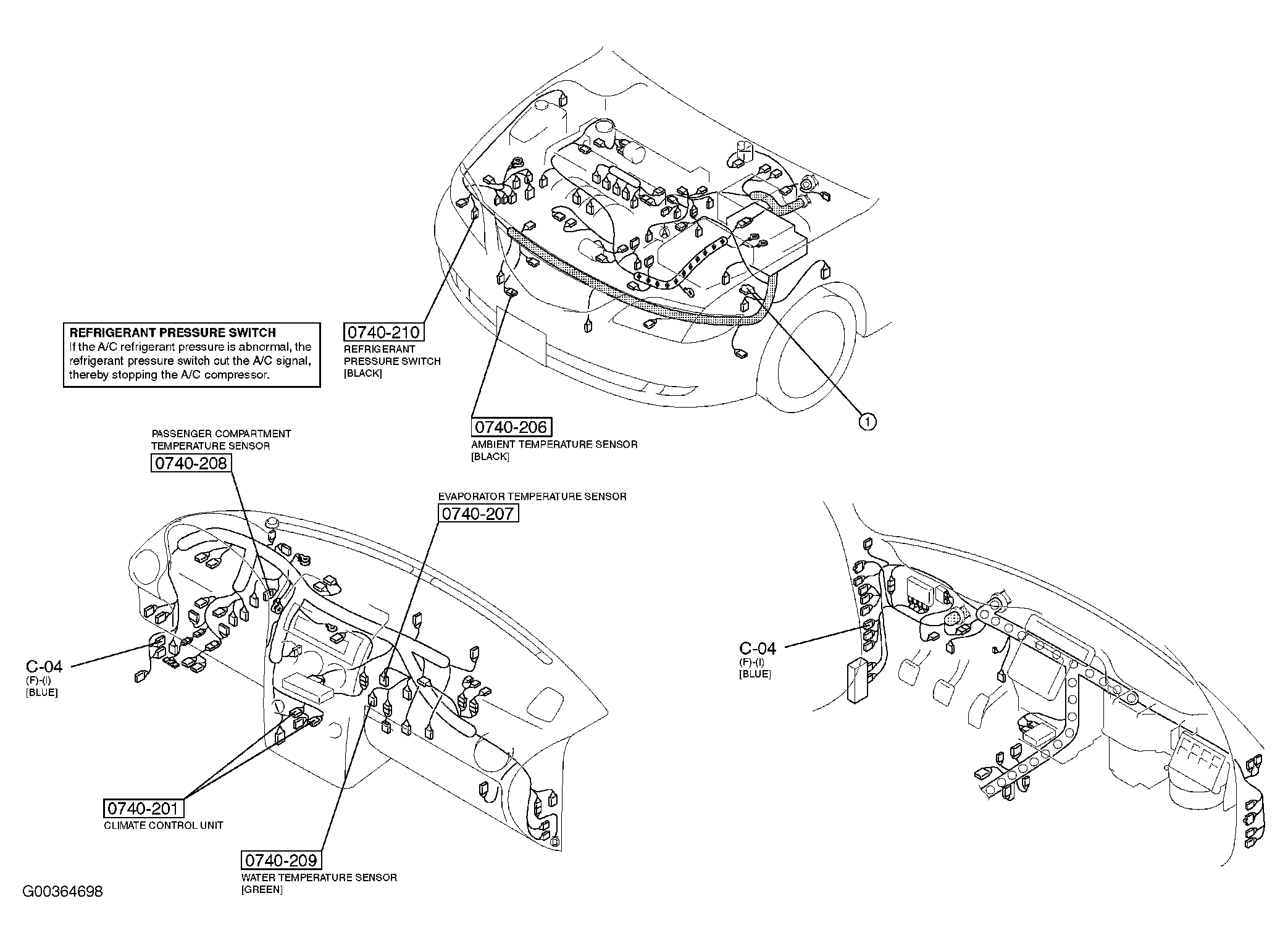

Fig 35: Auto HVAC

G00364698

Courtesy of MAZDA MOTORS CORP.

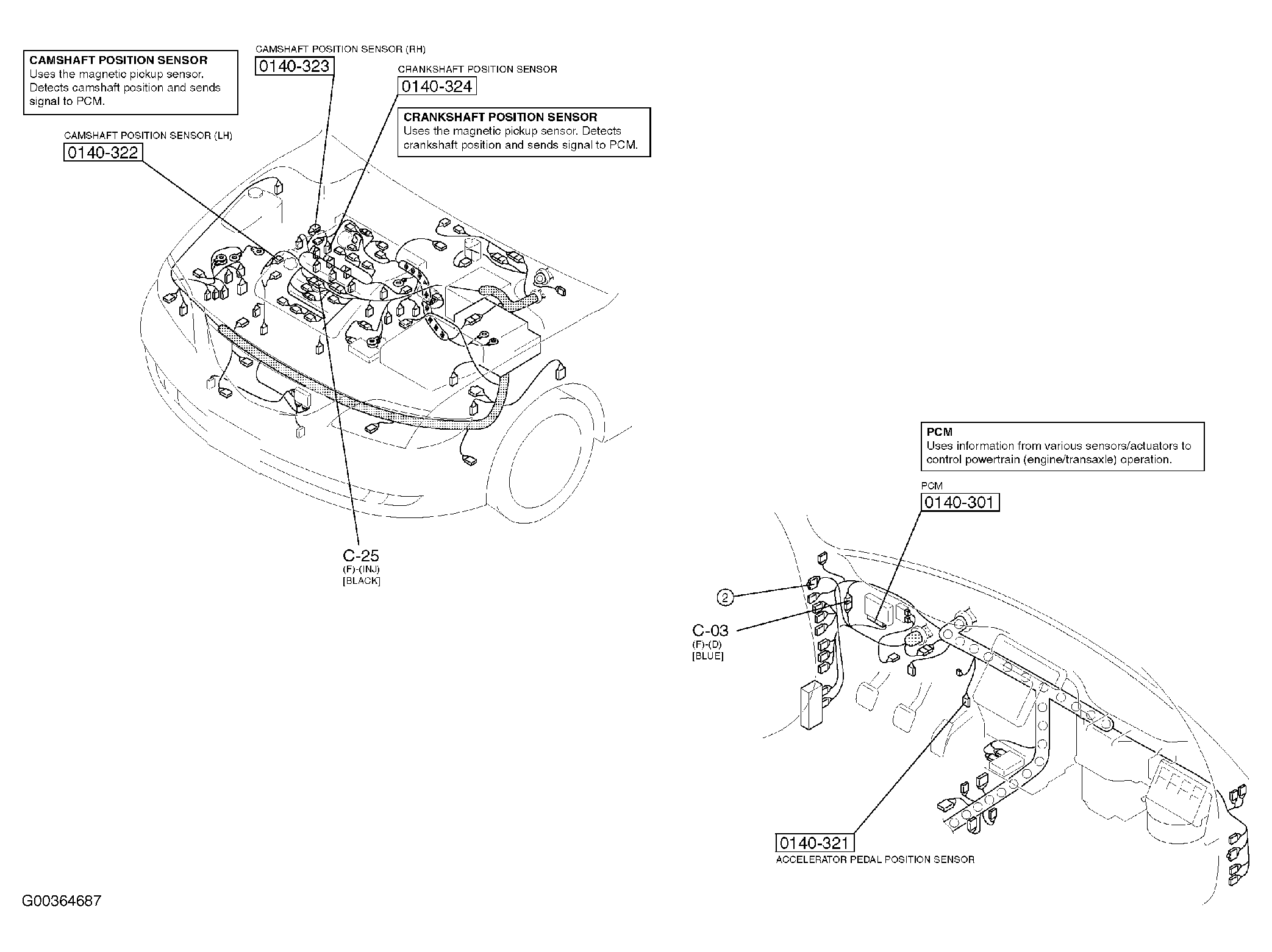

Fig 36: Engine Controls (3.0L)

G00364687

Courtesy of MAZDA MOTORS CORP.

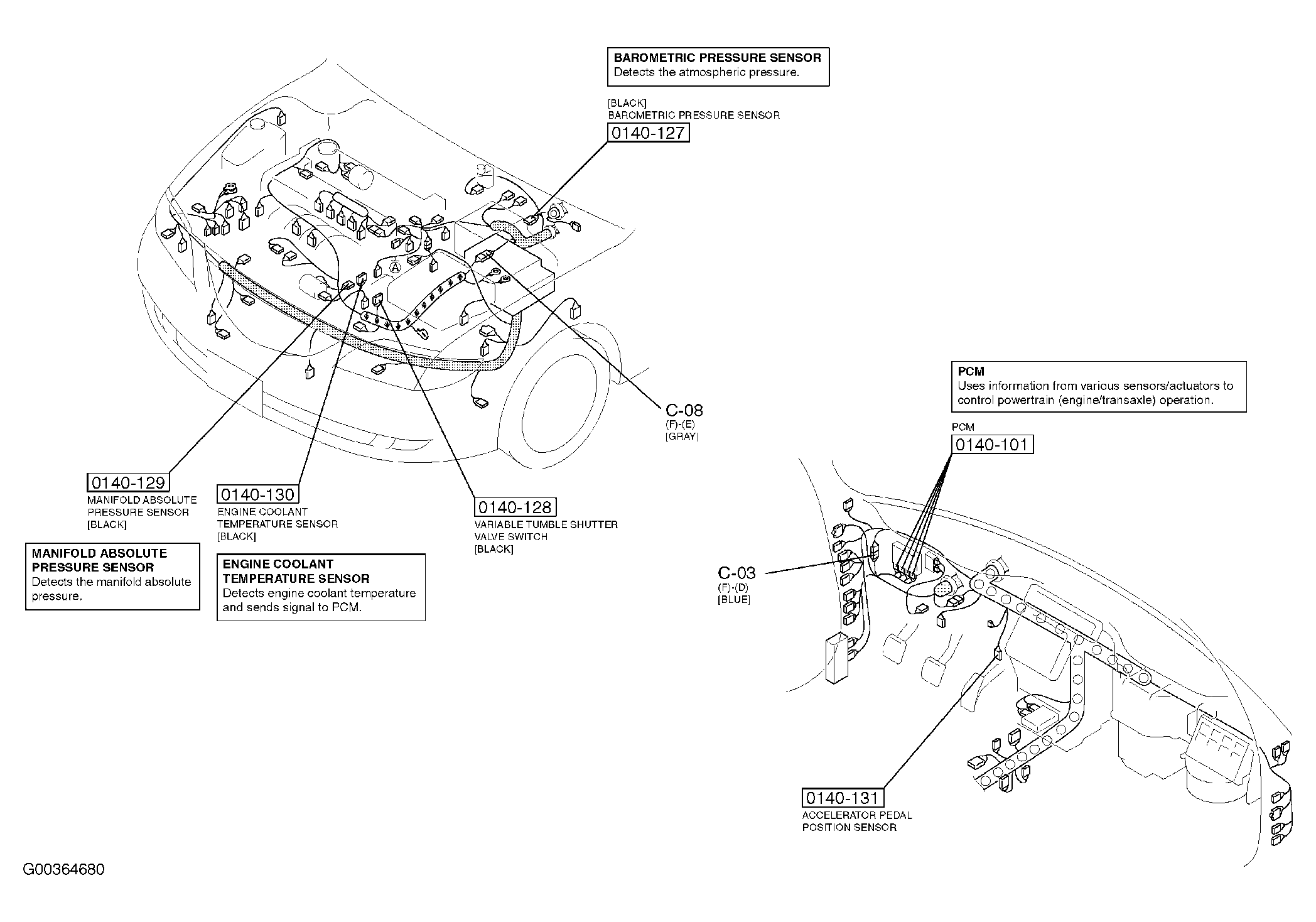

Fig 37: Engine Controls (2.3L)

G00364680

Courtesy of MAZDA MOTORS CORP.

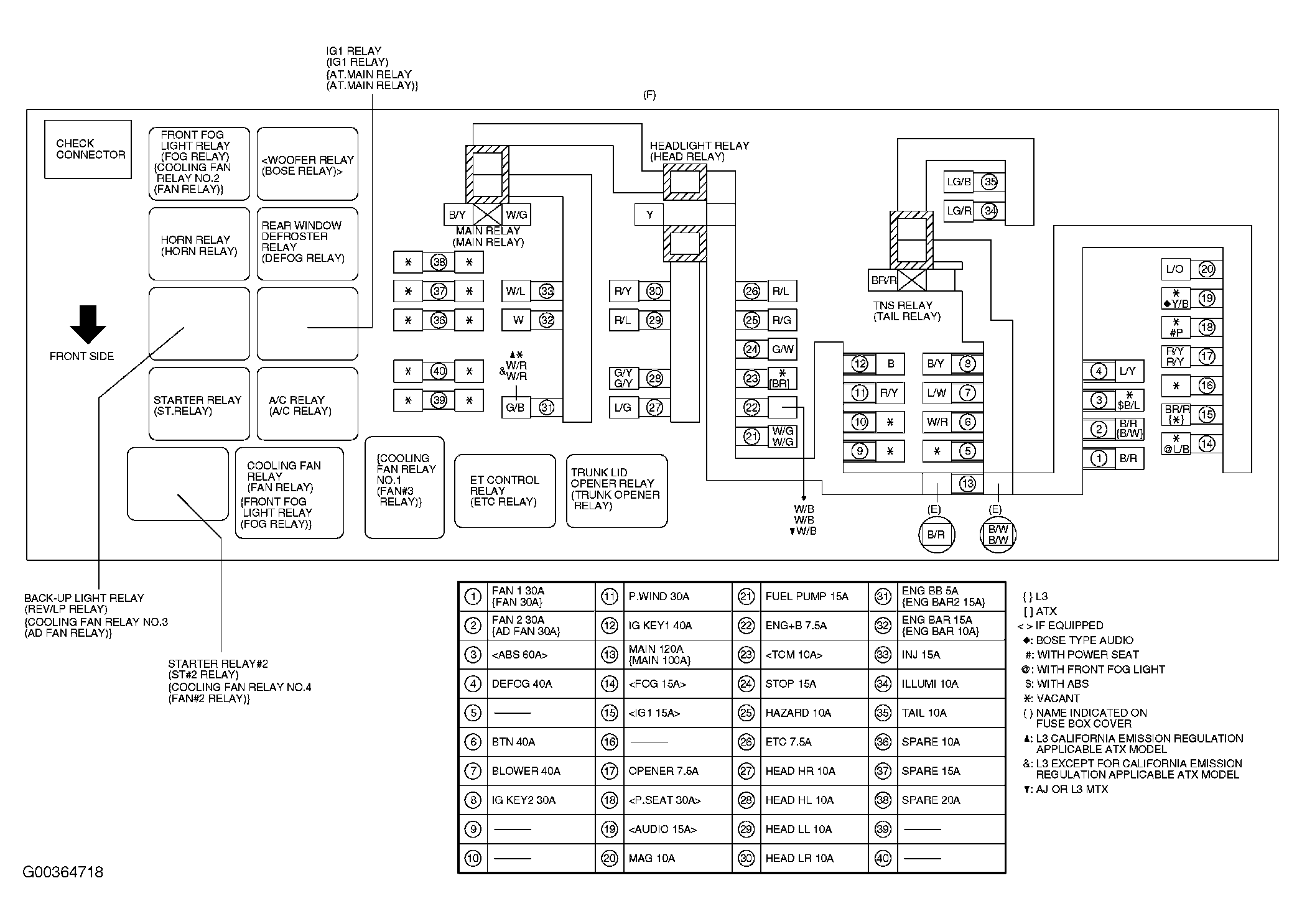

Fig 38: Fuse & Relay Box

G00364718

Courtesy of MAZDA MOTORS CORP.

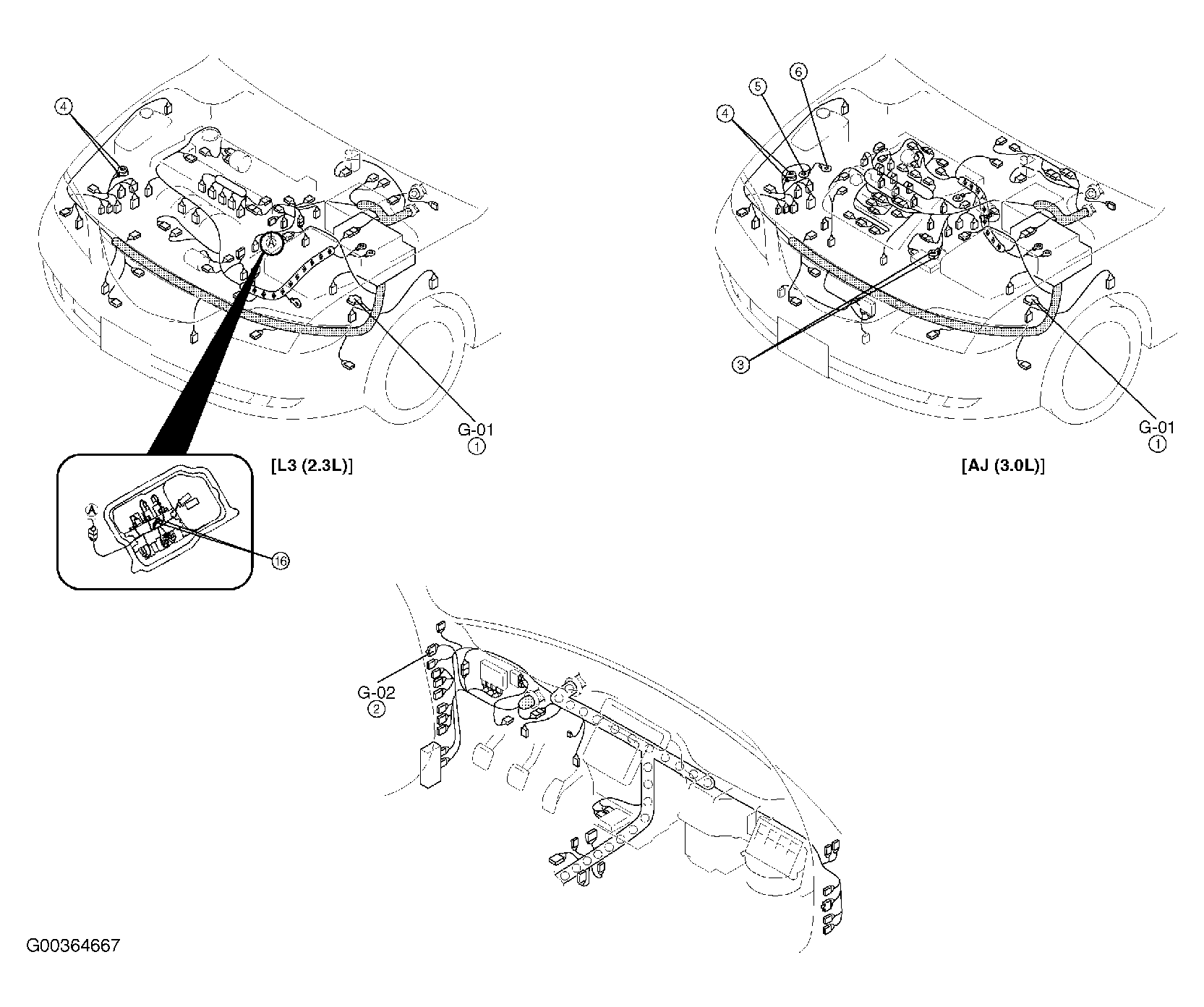

Fig 39: Vehicle Grounds

G00364667

Courtesy of MAZDA MOTORS CORP.

Fig 40: Engine Compartment (3.0L)

G00364708

Courtesy of MAZDA MOTORS CORP.

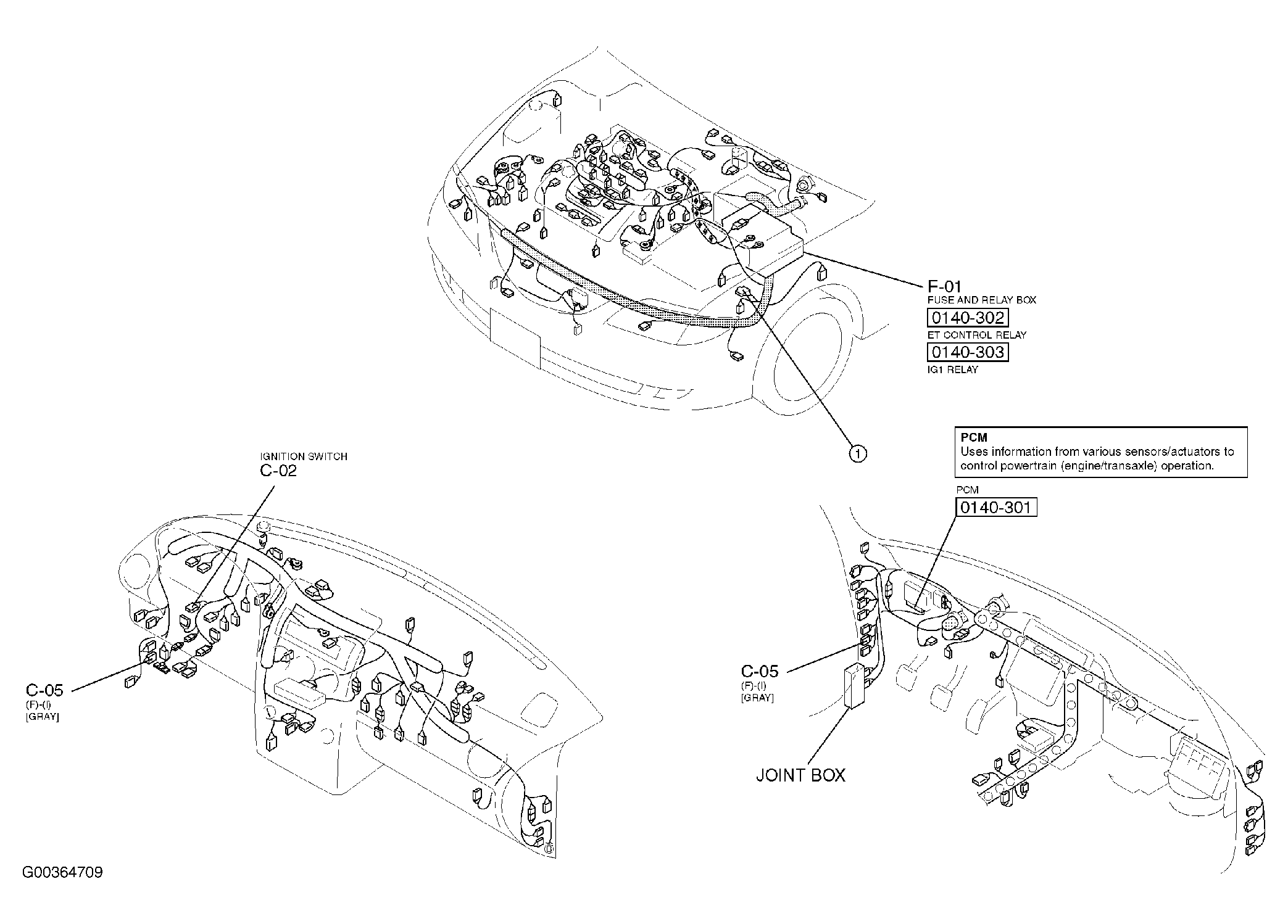

Fig 41: Dash Assembly

G00364709

Courtesy of MAZDA MOTORS CORP.

Fig 42: Engine & Dash

G00364710

Courtesy of MAZDA MOTORS CORP.

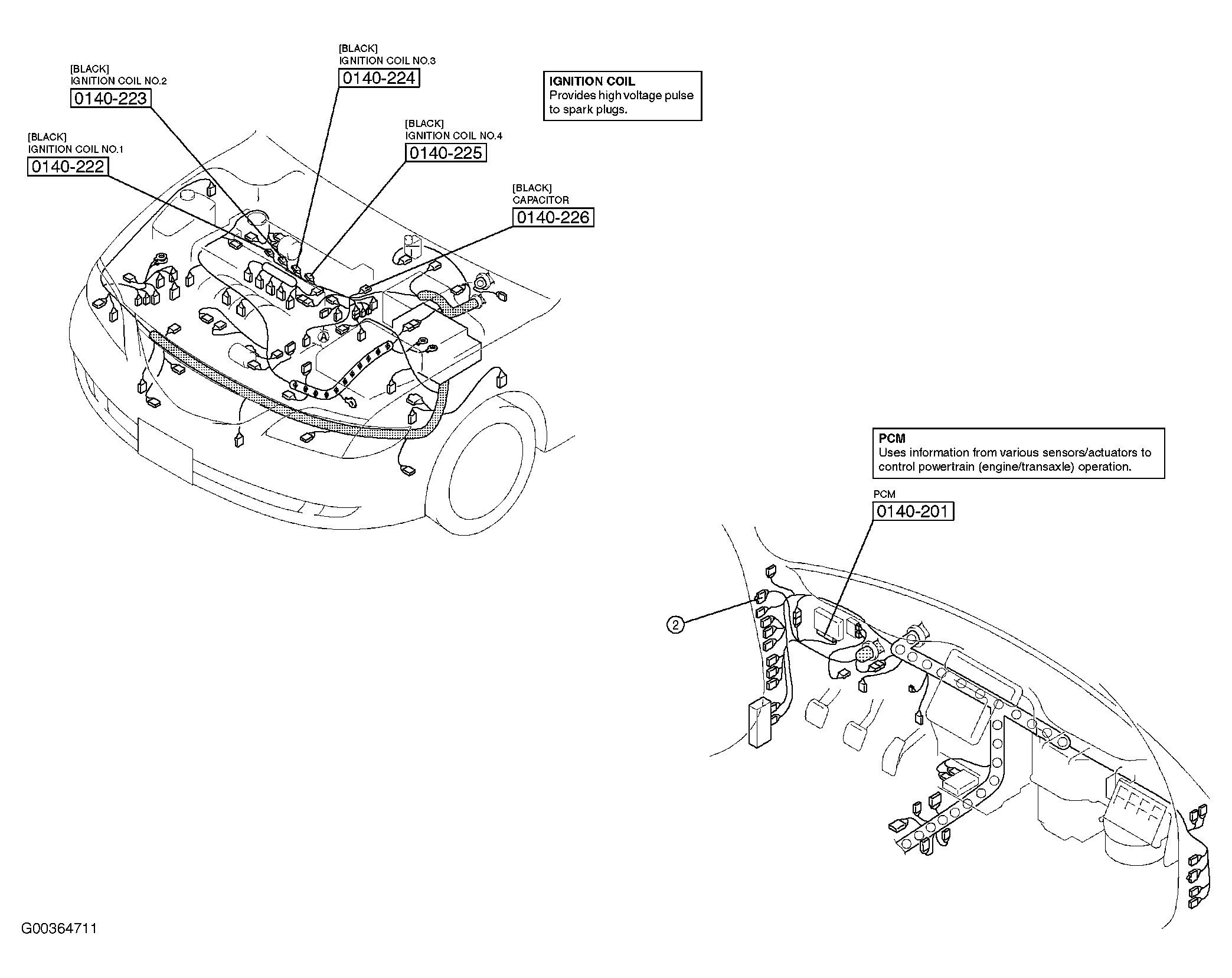

Fig 43: Engine & Dash

G00364711

Courtesy of MAZDA MOTORS CORP.

Fig 44: Engine Compartment (3.0L)

G00364712

Courtesy of MAZDA MOTORS CORP.

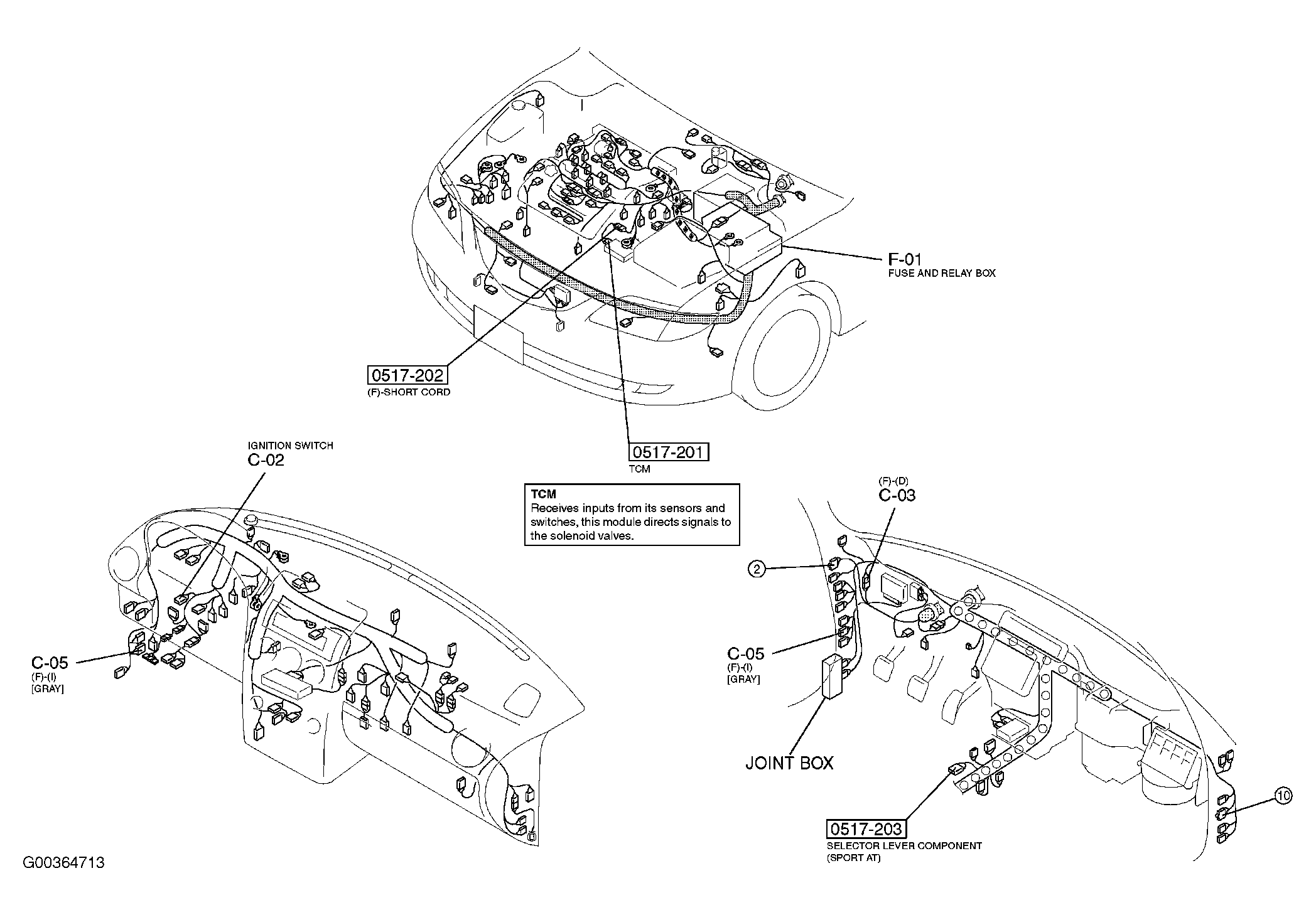

Fig 45: Engine & Dash

G00364713

Courtesy of MAZDA MOTORS CORP.

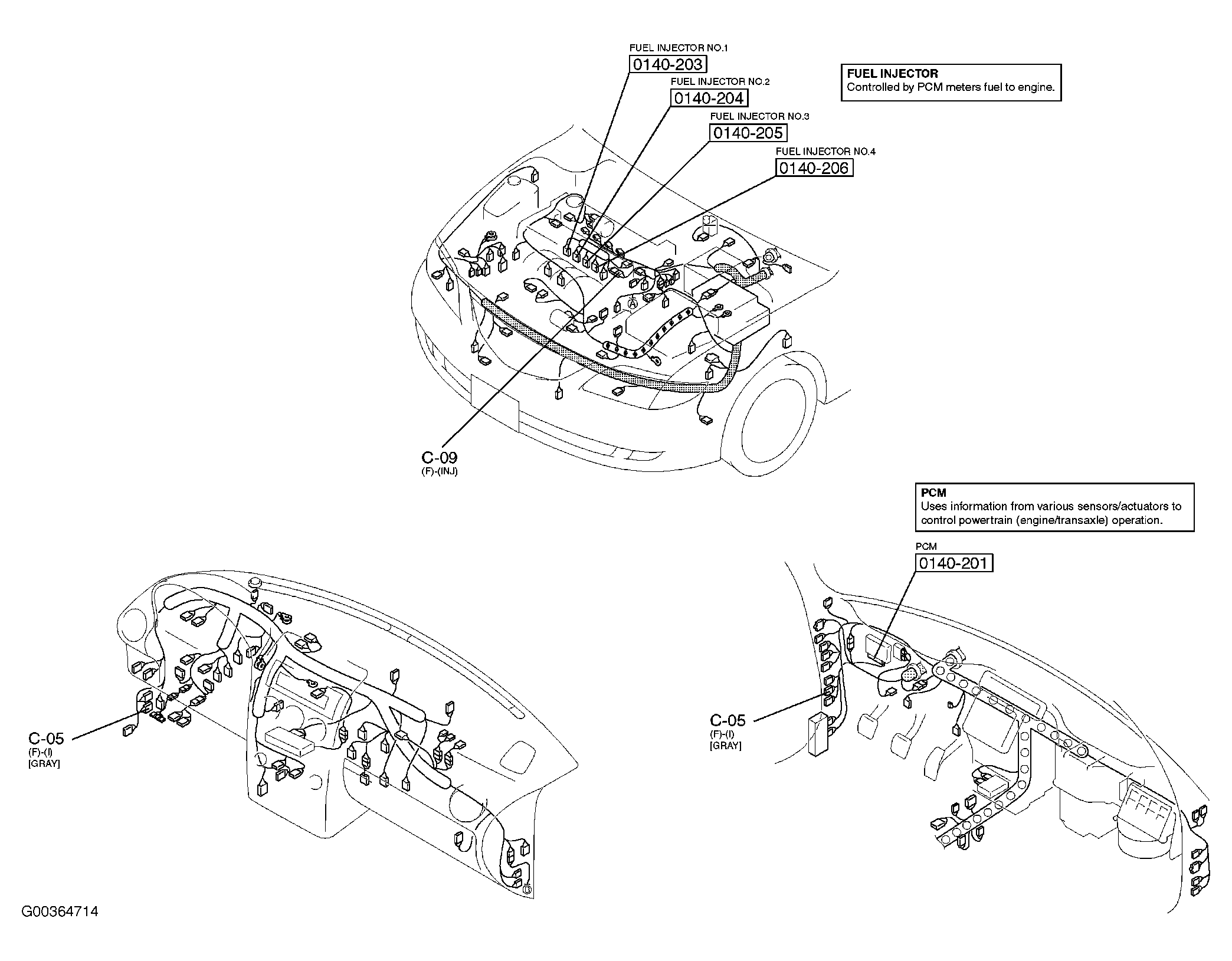

Fig 46: Engine & Dash

G00364714

Courtesy of MAZDA MOTORS CORP.

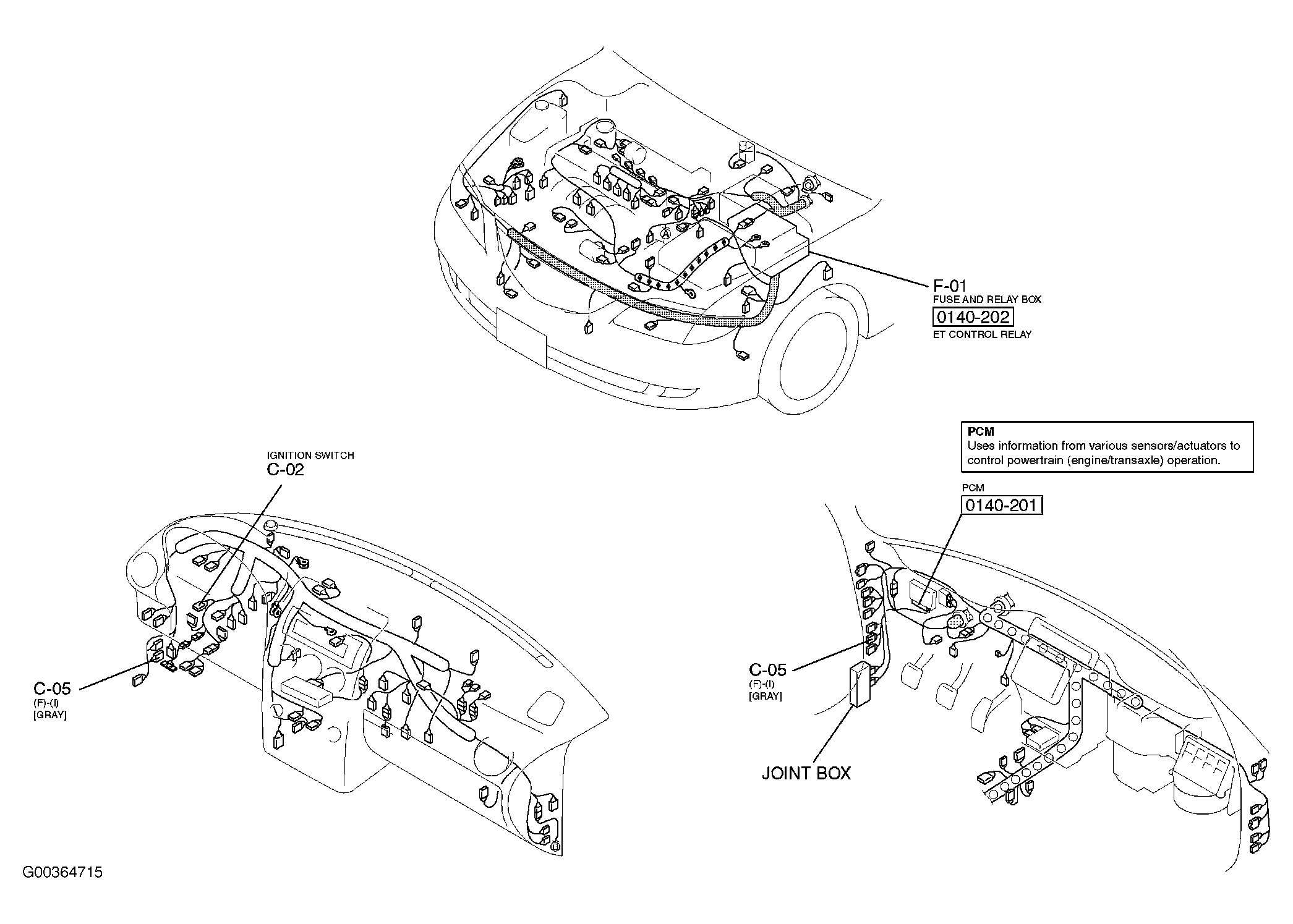

Fig 47: Engine & Dash

G00364715

Courtesy of MAZDA MOTORS CORP.

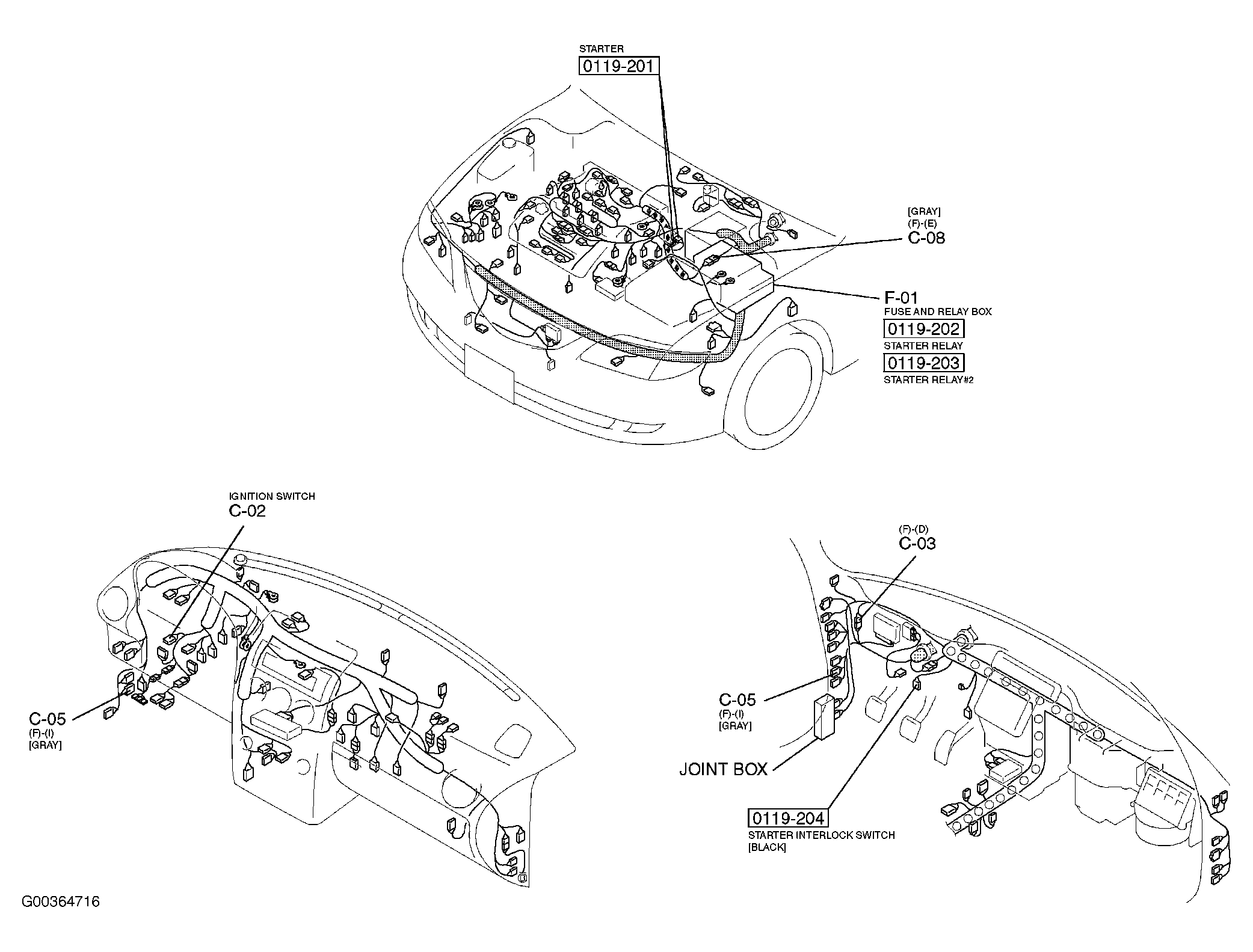

Fig 48: Engine & Dash (3.0L)

G00364716

Courtesy of MAZDA MOTORS CORP.

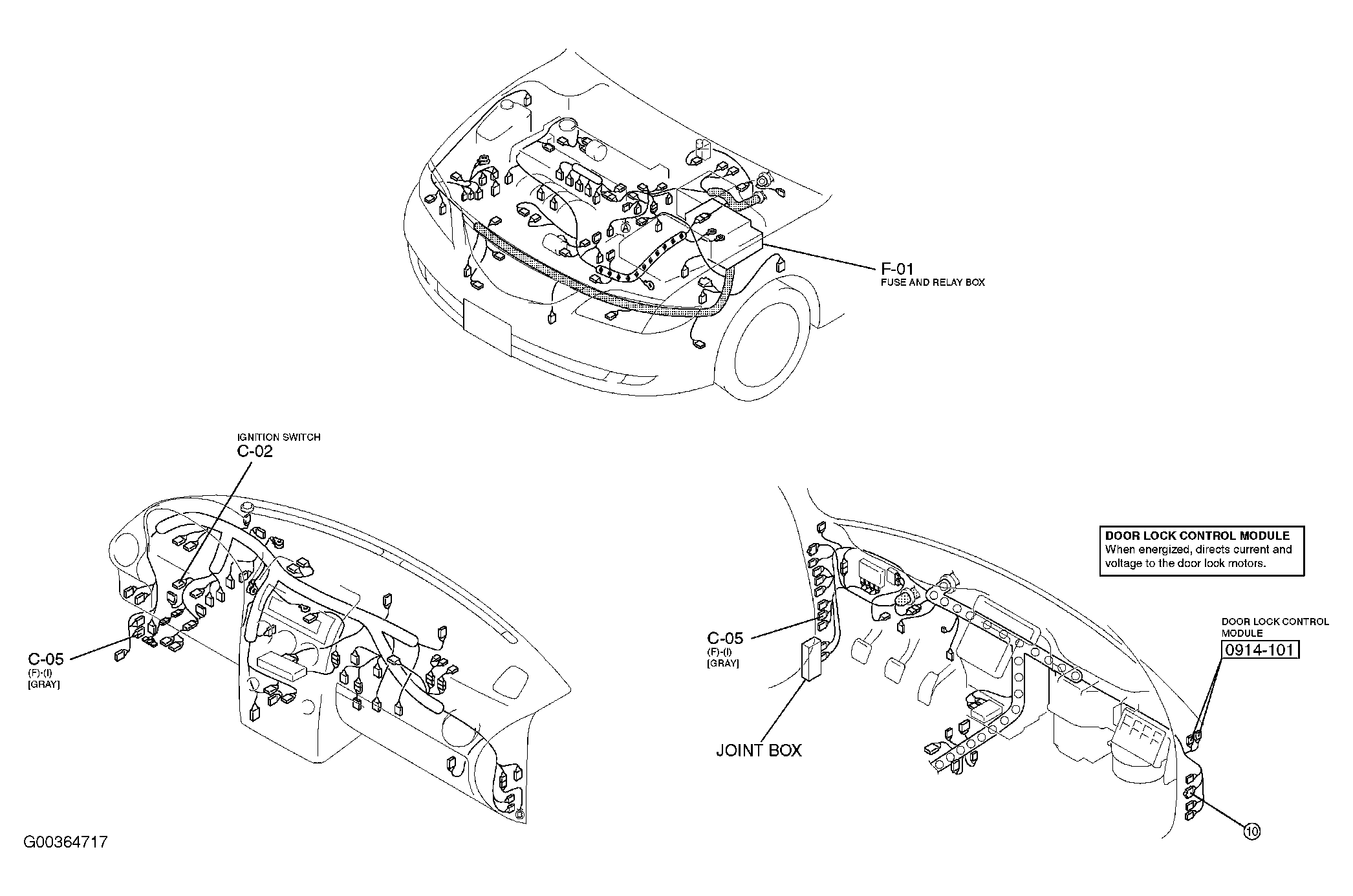

Fig 49: Engine & Dash (2.3L)

G00364717

Courtesy of MAZDA MOTORS CORP.

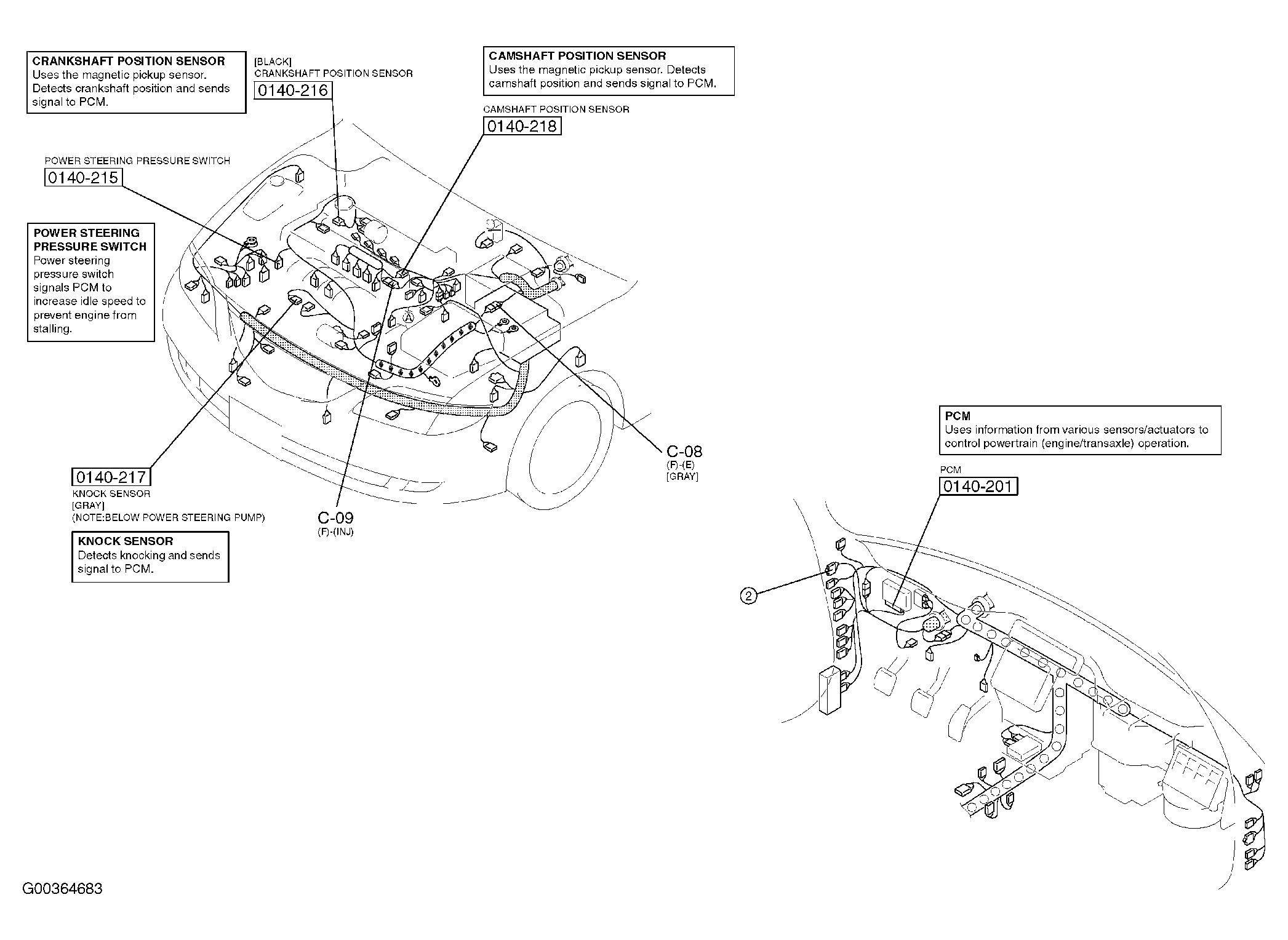

Fig 50: Engine & Dash (2.3L)

G00364683

Courtesy of MAZDA MOTORS CORP.

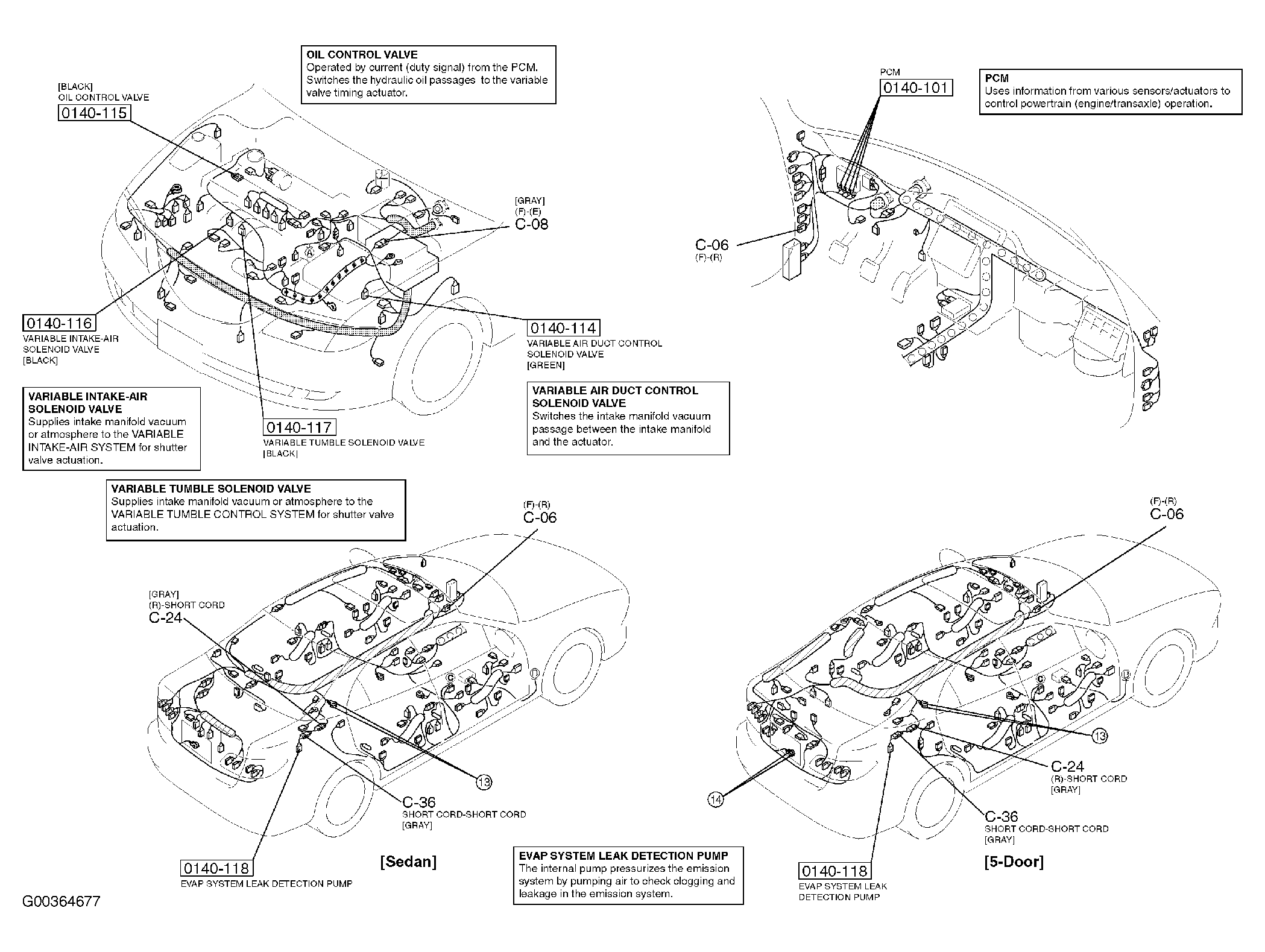

Fig 51: Vehicle Overview (2.3L)

G00364677

Courtesy of MAZDA MOTORS CORP.

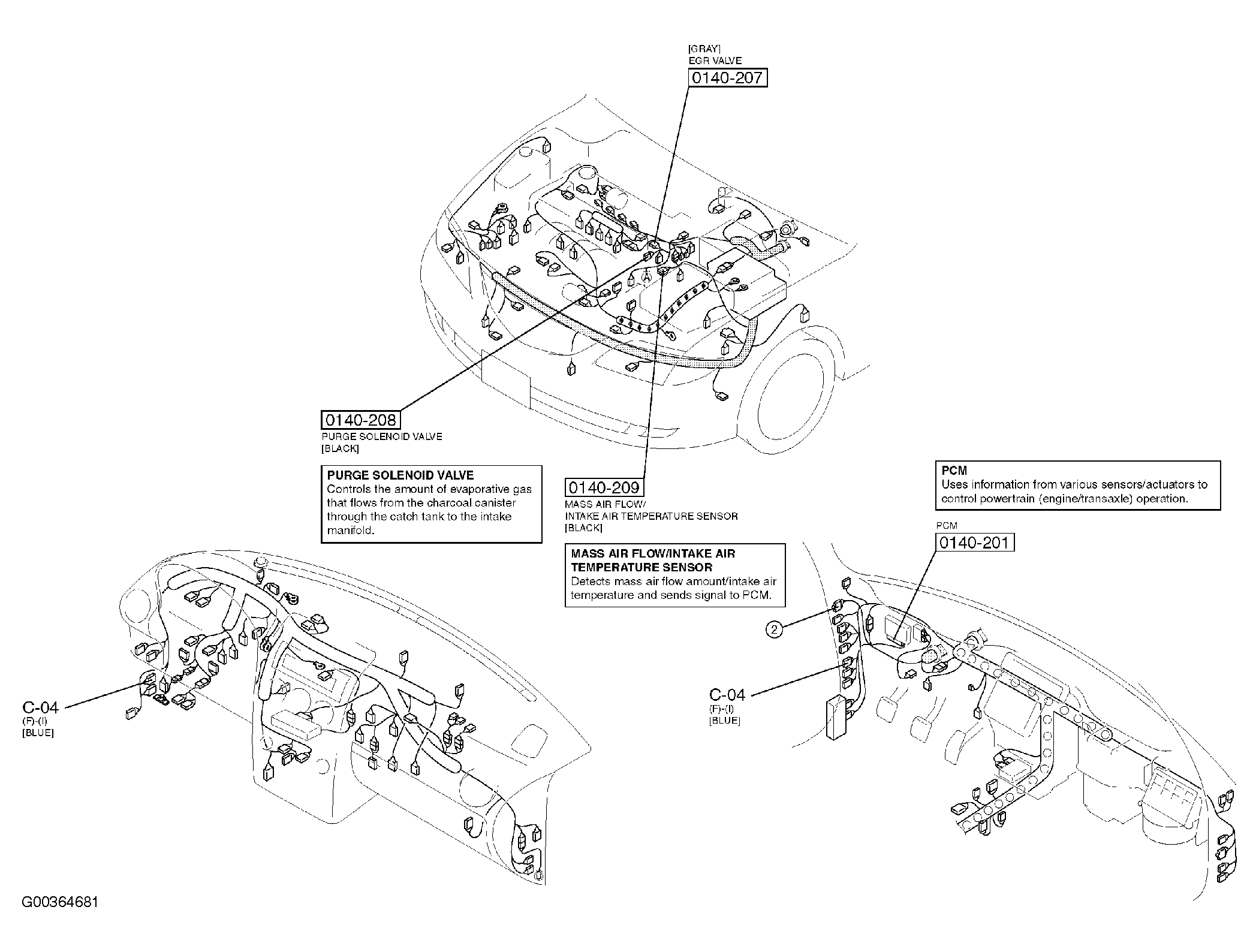

Fig 52: Vehicle Overview (2.3L)

G00364681

Courtesy of MAZDA MOTORS CORP.

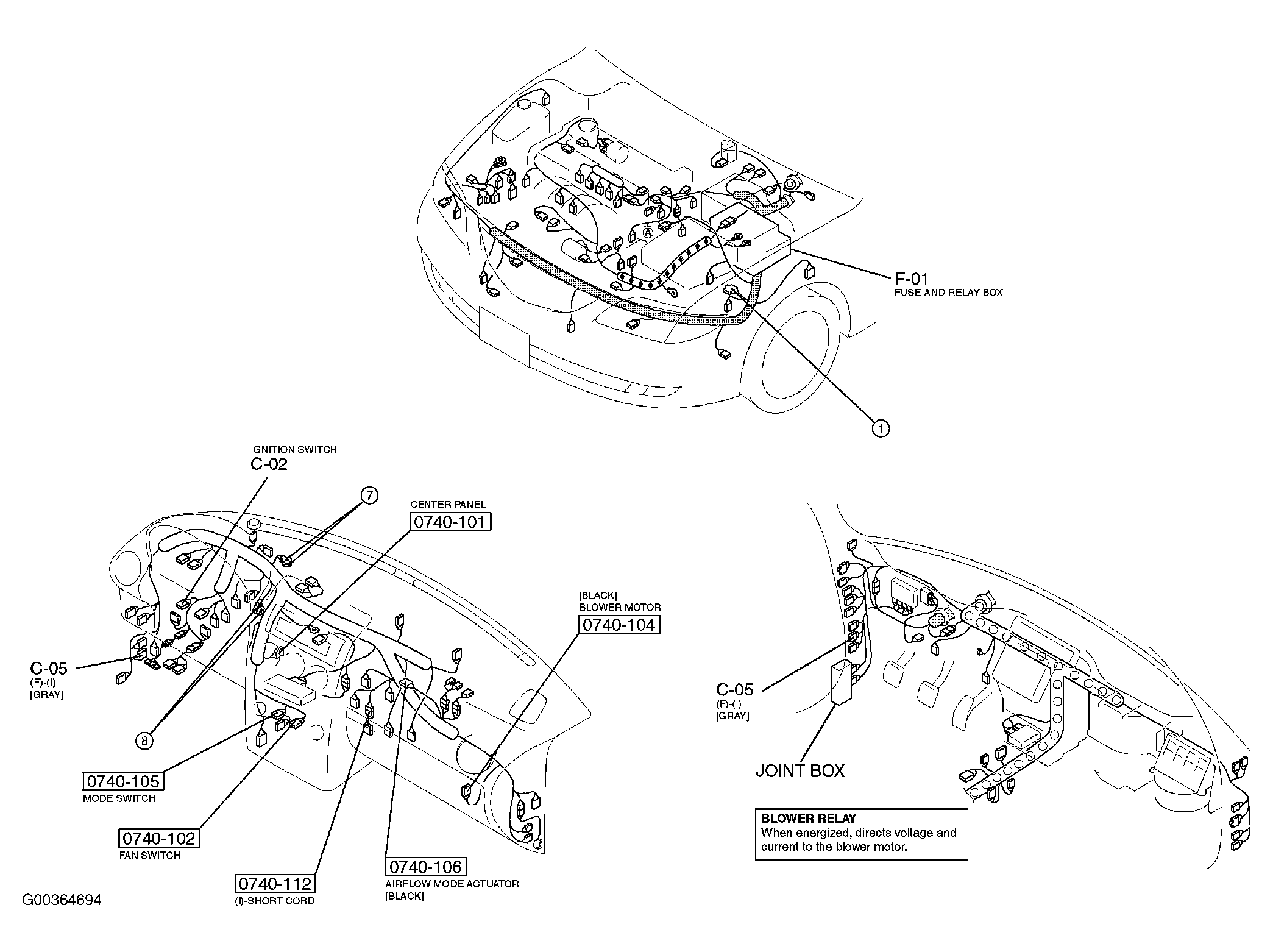

Fig 53: Vehicle Overview (2.3L)

G00364694

Courtesy of MAZDA MOTORS CORP.
