Pcm Removal/Installation

NOTE:
  • To replace the PCM, connect the WDS and perform the PCM configuration. (See PCM REPLACEMENT .)
  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the table.

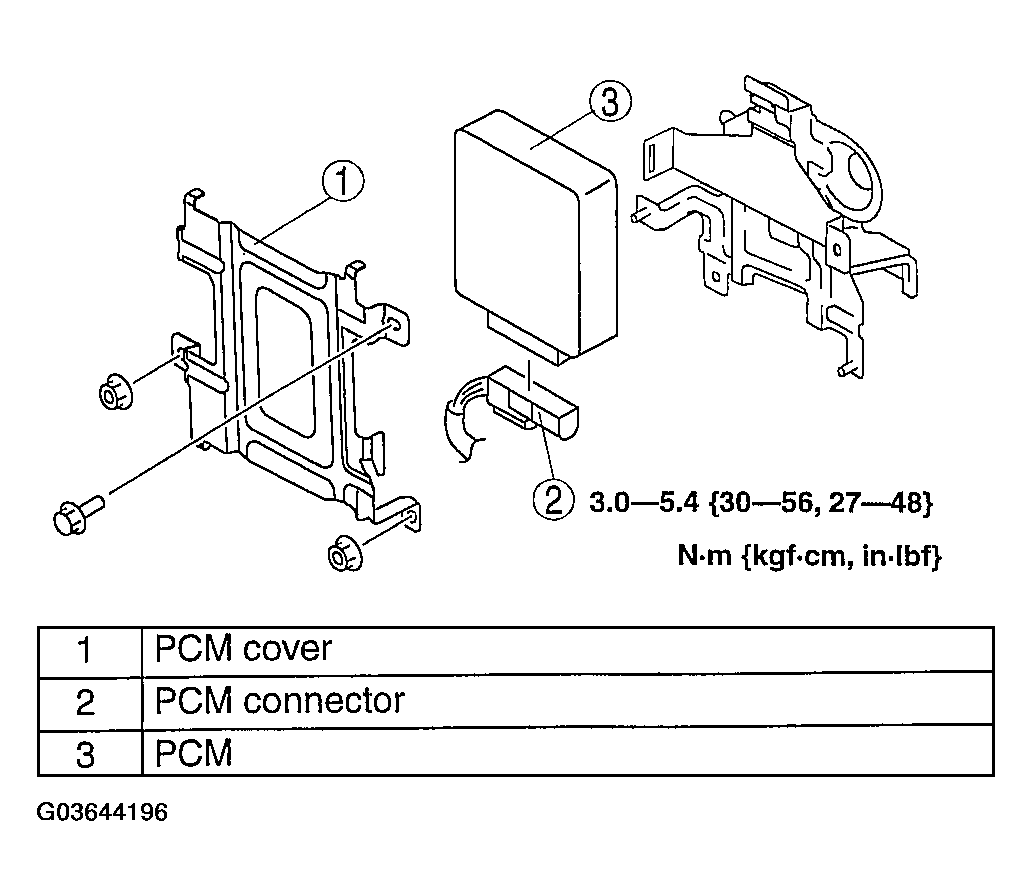

    Fig 1: Removing PCM (Torque Specs)
    G03644196Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
