Door Lock Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the front door trim panel. See DOOR TRIM PANEL FRONT REMOVAL/INSTALLATION .
  3. Remove the watershield.
  4. Remove the center door glass run retainer. See DOOR GLASS RUN RETAINER, CENTER REMOVAL/INSTALLATION .

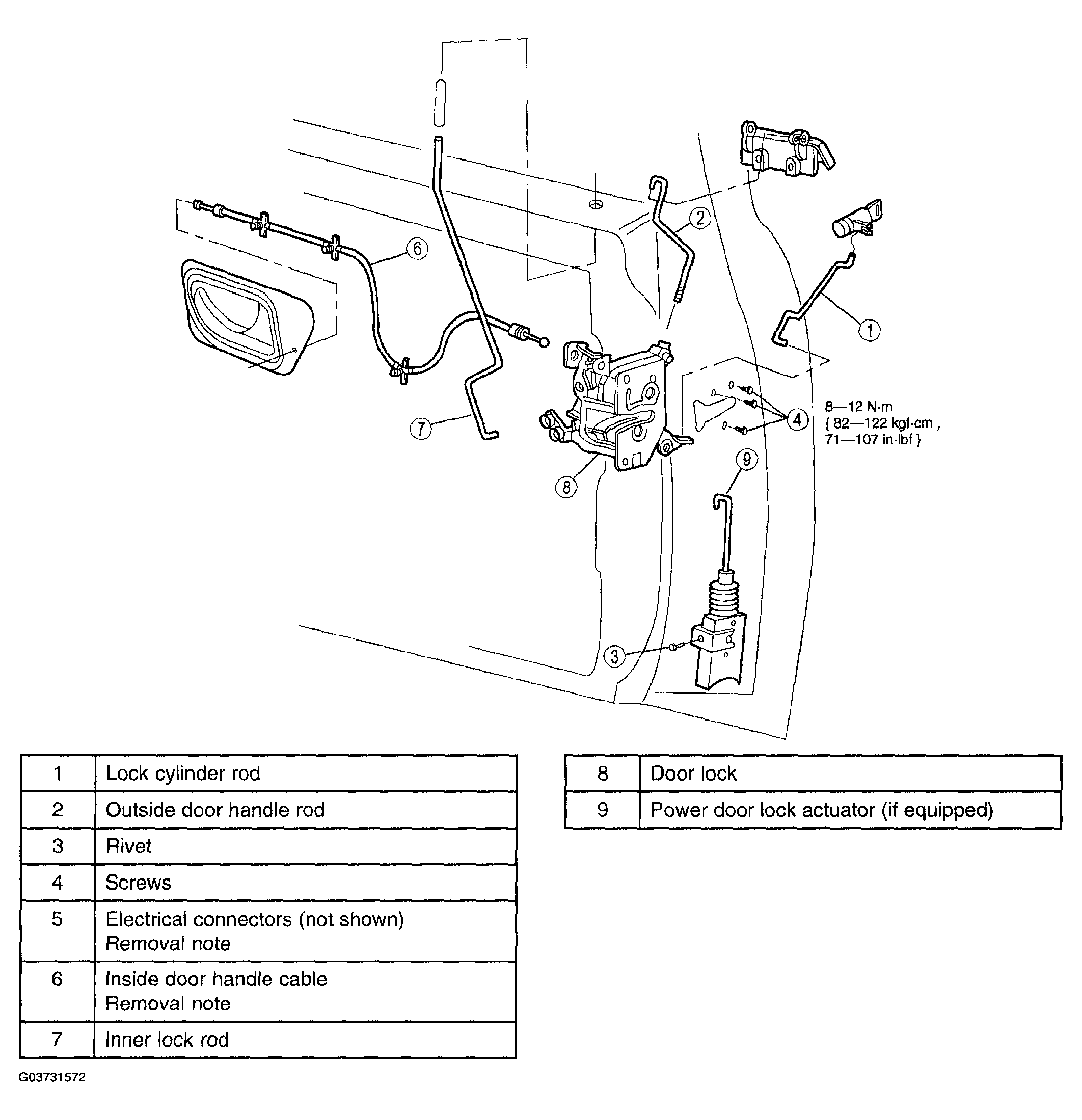

    5. Fig 1: Removing Door Lock - With Torque Specification
    G03731572Courtesy of MAZDA MOTORS CORP.
