Home >> Mazda >> 2005 >> B3000 Base, Automatic >> Repair and Diagnosis >> Body & Frame >> Windows >> Glass/Windows/Mirrors >> Power Window Motor Removal/Installation >> Installation

Power Window Motor Removal/Installation: Installation

  1. Install in reverse order of removal.
    • Use a heavy duty riveter to install the new rivets.

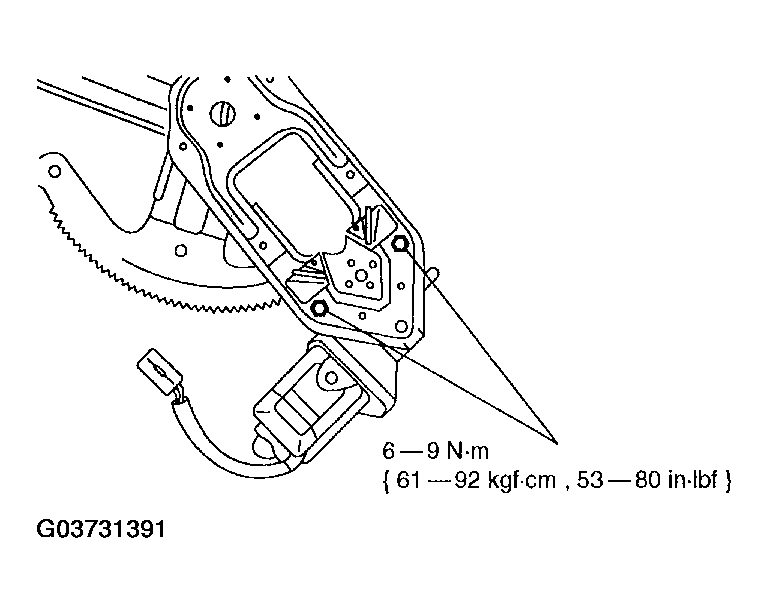

      Fig 1: Installing Motor - With Torque Specifications
      G03731391Courtesy of MAZDA MOTORS CORP.

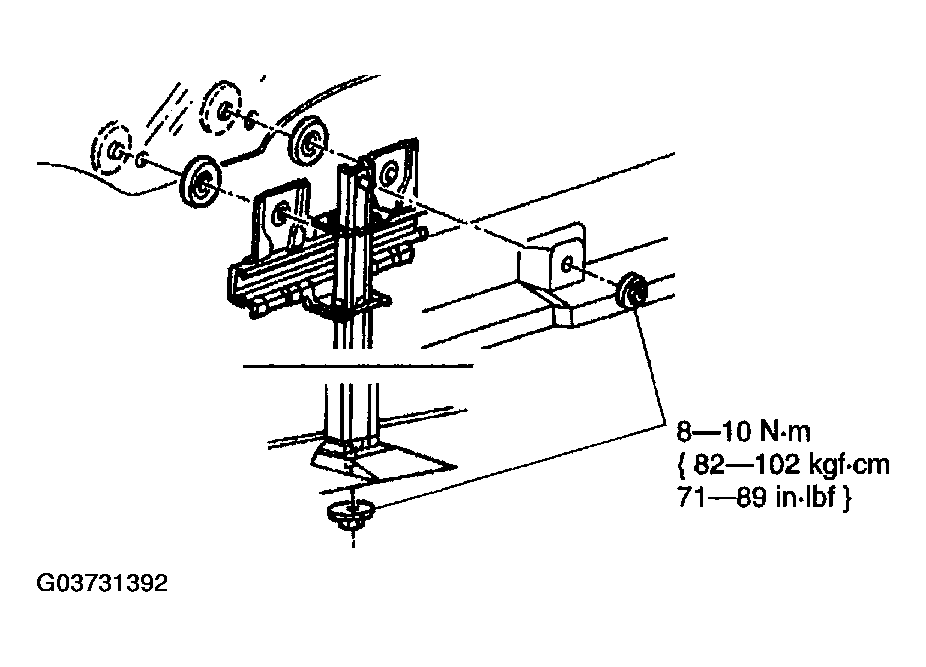

      Fig 2: Installing Center Door Glass Run Retainer Nuts - With Torque Specifications
      G03731392Courtesy of MAZDA MOTORS CORP.
