Windshield Removal/Installation: Notes

  1. Remove the windshield wiper pivot arms. See PIVOT ARM REMOVAL/INSTALLATION .
  2. Remove both A-pillar trim assist handles, if equipped.
  3. Remove both A-pillar trim panels.

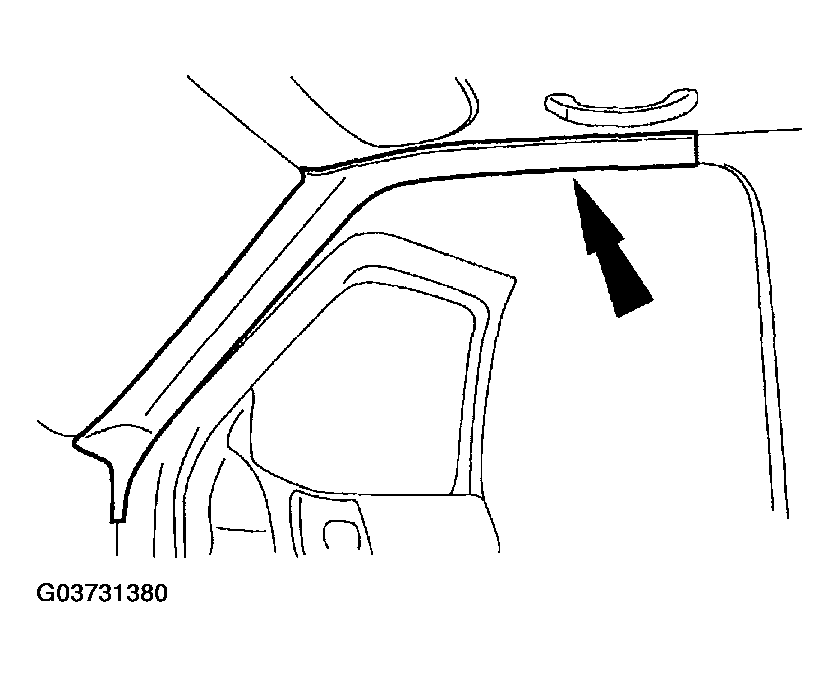

    Fig 1: Removing Both A-Pillar Trim Panels
    G03731380Courtesy of MAZDA MOTORS CORP.
  4. Remove the screws (1), sun visors (2) and disconnect connectors, if necessary.

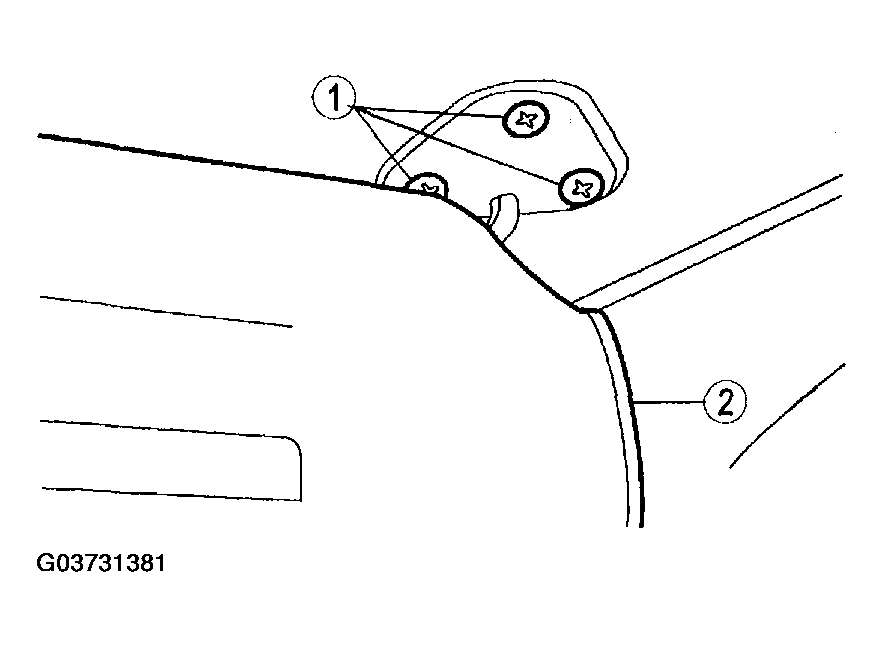

    Fig 2: Removing Sun Visors Screws
    G03731381Courtesy of MAZDA MOTORS CORP.
  5. Remove the inside rear view mirror.
  6. Remove molding (1) and windshield (2). See Windshield Removal  Note.

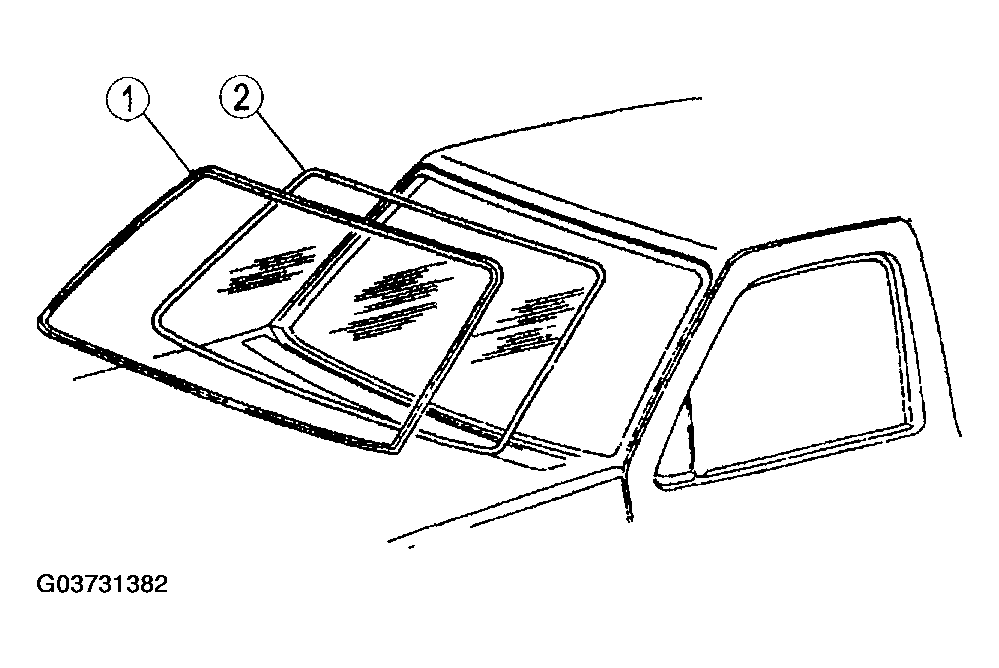

    Fig 3: Removing Molding And Windshield
    G03731382Courtesy of MAZDA MOTORS CORP.
  7. Install in reverse order of removal. See Windshield Installation  Note.
