Key Warning Switch Removal/Installation
- Insert the ignition key and turn to the ON position.
- Insert a punch in the access hole of the steering column and press the release tab while pulling out the ignition lock cylinder.

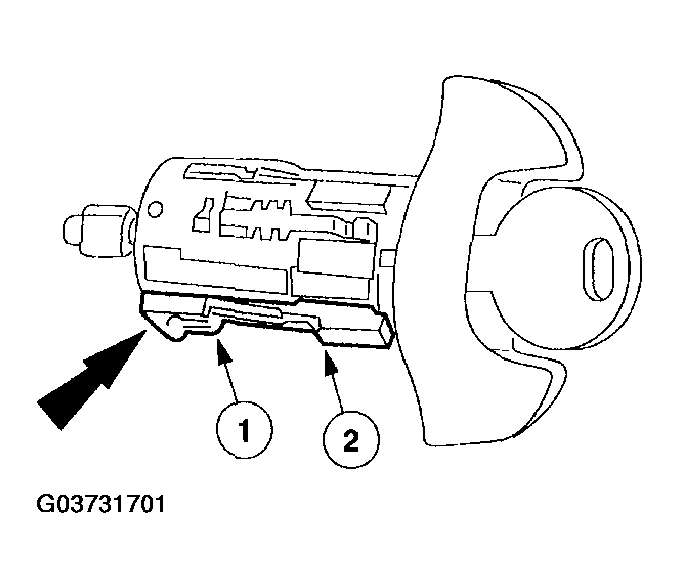

- Remove the key warning switch by prying the clip (1) down and pushing the key warning switch (2) off the rear of the ignition lock cylinder.
- To install, reverse the removal procedure.
- Verify ignition lock cylinder operation.
