Engine Ignition Specifications - 2.3L: Notes

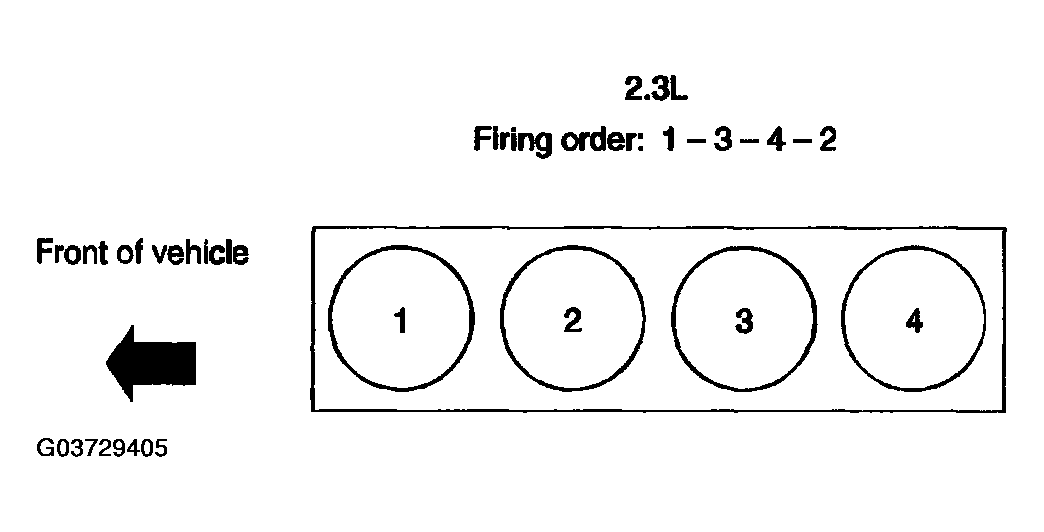

Fig 1: Identifying Engine Ignition Sequence (2.3L)

Courtesy of MAZDA MOTORS CORP.

ENGINE IGNITION SPECIFICATIONS - 2.3L

Item	Specification
Ignition timing (not adjustable)	10 degrees BTDC
Firing order	1-3-4-2
Original spark plug	AGSF32FEC
Replacement spark plug	AGSF32FEC
Spark plug gap mm (in)	1.05-1.15 mm (0.041-0.045 in)
