OEM General Information: Towing: Notes

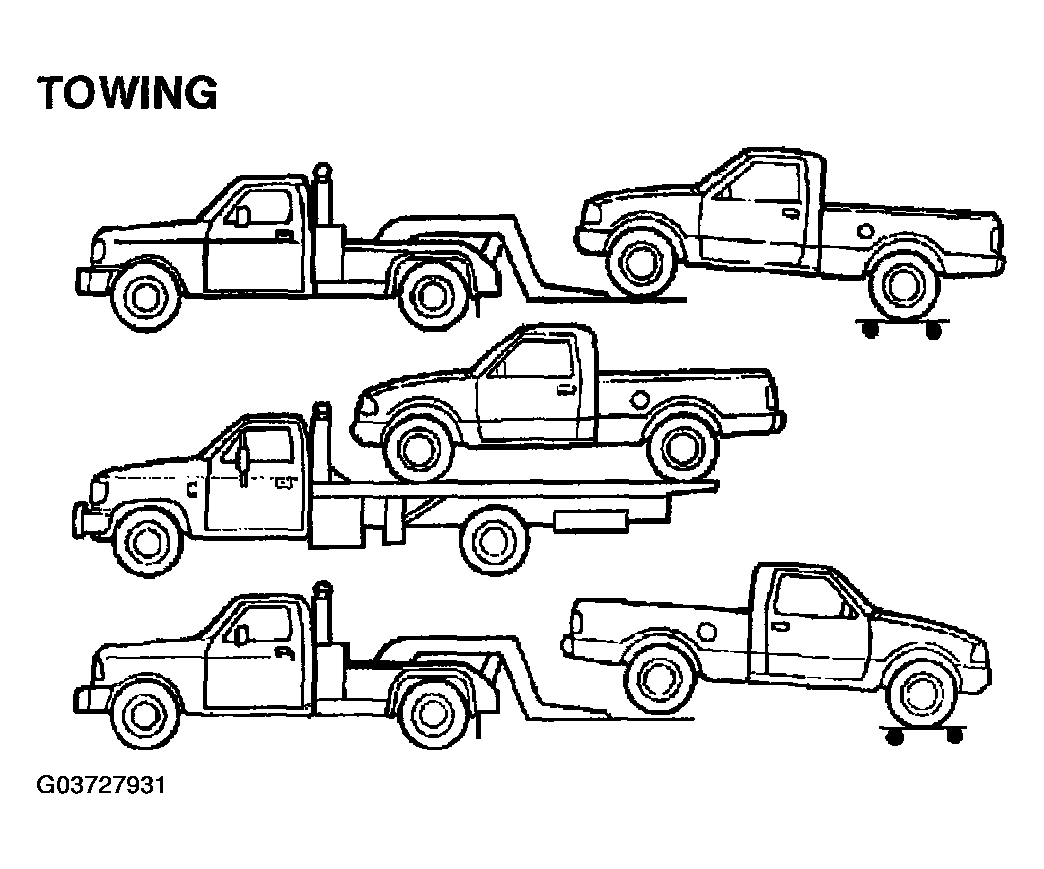

Fig 1: Identifying Vehicle Towing

Courtesy of MAZDA MOTORS CORP.

Proper lifting and towing are necessary to prevent damage to the vehicle. State and local laws must be followed.

When a vehicle is towed on its front wheels, lock the steering wheel in a straight ahead position with a steering wheel clamp.

On 4x2 vehicles, it is acceptable to tow the vehicles with the front wheels on the ground and the rear wheels off the ground.

On 4x4 vehicles, it is recommended that the vehicle be towed with a wheel lift or flatbed equipment.

Do not tow with sling belt equipment.

WARNING:

When disconnecting/connecting the propeller shaft, the parking brake must be set and the wheels must be blocked to ensure the vehicle does not roll during this procedure.
