Key Reminder Switch Inspection

  1. Disconnect the key reminder switch connector.
  2. Inspect for continuity between the key reminder switch terminals using an ohmmeter.
    • If not as specified, replace the key reminder switch.

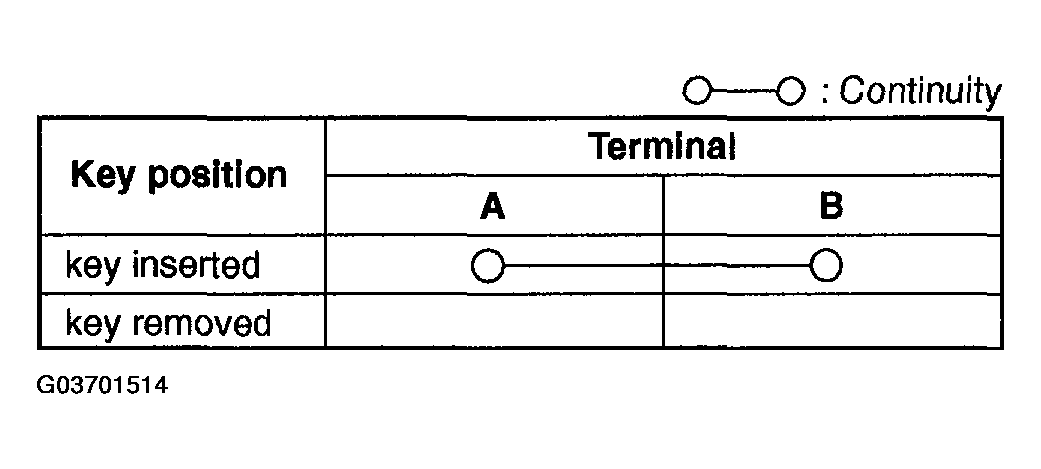

    Fig 1: Key Reminder Switch Continuity Chart
    G03701514Courtesy of MAZDA MOTORS CORP.

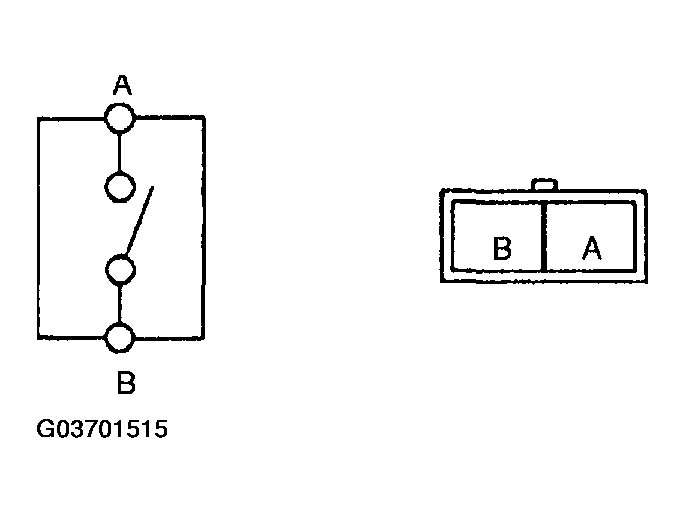

    Fig 2: Checking Key Reminder Switch Continuity
    G03701515Courtesy of MAZDA MOTORS CORP.
