Slide Adjuster Disassembly/Assembly

CAUTION:
  • When disassembling/assembling the slide adjuster, perform the work on a flat, level surface to prevent whine noise from the motors.
  1. Remove the slide adjuster. (See FRONT SEAT DISASSEMBLY/ASSEMBLY .)
  2. Disassemble in the order indicated in the table.

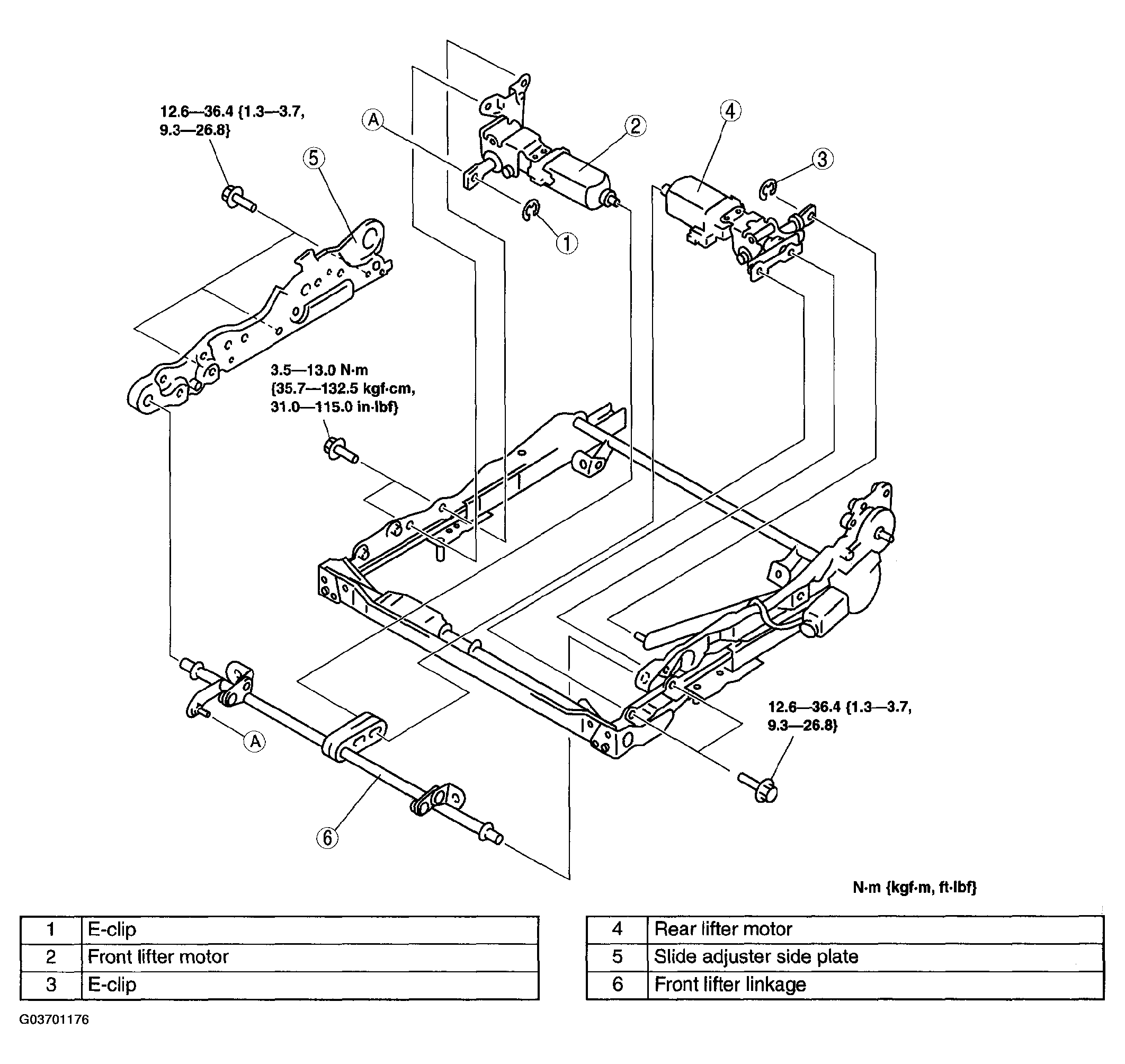

    Fig 1: Disassembling Slide Adjuster - With Torque Specification
    G03701176Courtesy of MAZDA MOTORS CORP.
  3. Assemble in the reverse order of disassembly.
